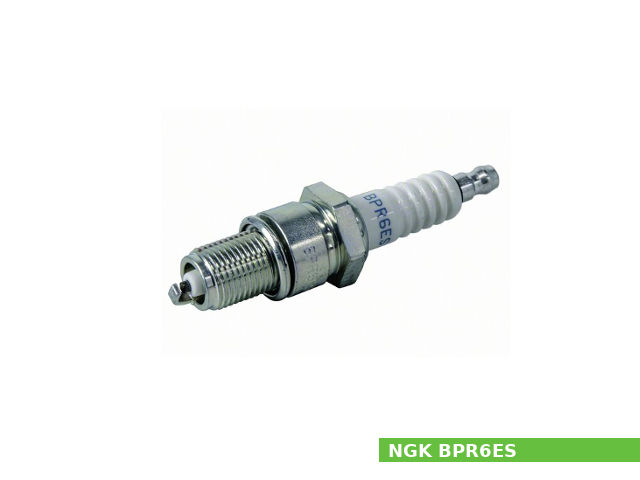

The NGK BPR6ES is a spark plug with an alumina ceramic insulator and nickel made center and ground electrode.
This spark plug has corrugated ribs, triple gasket seal, copper core for more effective heat removal, a 21 mm (13/16 inches) hex size, and 0.9 mm (0.035 inches) gap.
The BPR6ES spark plug manufactured by Japanese company NGK mainly for general-purpose engines (Honda, Briggs & Stratton, Raven brands).
General informational
| Specifications | |
| Spark plug model | NGK BPR6ES (Part Number: 7131) |
| Thread size | 14.0 mm (0.55 in) |
| Thread pitch | 1.25 mm (0.050 in) |
| Reach | 19.0 mm (0.75 in) |
| HEX size | 21.0 mm (0.826 in) |
| Seat type | Gasket |
| Resistor | Yes |
| Resistor value | 5 KΩ |
| Terminal type | Removable nut |
| Overall height | JIS |
| Torque specs |
Cast Iron: 25-35 Nm (2.5-3.5 kg·m; 18.4-25.2 ft·lb) Aluminum: 25-29 Nm (2.5-3.0 kg·m; 18.4-21.6 ft·lb) |
| Gap | 0.9 mm (0.035 in) |
| Longevity | 48,000 km (30,000 miles) |
| Center Electrode | |
| Material | Nickel |
| Type | Standard |
| Size | 2.5 mm (0.098 in) |
| Projection | Projected |
Equivalents and alternatives
| NGK BPR6ES cross reference to | |
| AC Delco | |
| 4, 41-601, 41804, 43XLS, AC4, CR42CXLS, CR43CXLS, R42CXLS, R42XLS, R43CXLS, R43XLS | |
| Accel | |
| 194, 494 | |
| Autolite | |
| 3203, 3204, 4163, 4263, 63, 64, XS63 | |
| Beru | |
| 0002335701, 0002340701, 14-6D, 14R-6D, 14R-6DU, 14R-7D, 14R-7DU, 14R6DU, 14R7DU, 2335701, 2340701, UXT2, UXT6, Z20, Z27 | |
| Bosch | |
| 0 241 235 099, 0 242 235 511, 0 242 235 529, 0 242 235 537, 0 242 235 630, 0 242 235 663, 0 242 235 909, 0 242 240 511, 0 242 240 579, 0 242 240 592, 0 242 240 849, +1, +12, F000KE0P16, F000KE0P34, W175TR30, W200TR30, W6DC, W7DC, W7DCR, WR5D+, WR6D, WR6D+, WR6DC, WR6DC+, WR6DP, WR7D, WR7D+, WR7DC, WR7DC+, WR7DC2, WR7DP, WR8DC4, STK7500, STK7501, STK7594, STK7595 | |
| Brisk | |
| 0023, 1314, 1332, 77-312-1, L15YC, LR15TC, LR15YC, LR15Z | |
| Champion | |
| 2332, 415, 8415, 9FYSR, EON5, OE004, OE004/R04, OE004/T10, OE006, OE006/R04, OE006/T1, OE006T10, OE111, RN10Y, RN10YC, RN11YC4, RN7YC, RN9Y, RN9YC, RN9YCC, RN9YX, STK322, STK332 |
|
| Daihatsu | |
| 90048-51095-000, 90048-51096-000, 90048-51043-000 | |
| Denso | |
| 3047, 3344, 5306, D2, IW20, VW20, W20EPR, W20EPR-U, W20EXR-U, W20TT, STK3047 | |
| Fiat | |
| 1L4J, 5984036, 71711639, 71711640, 71711806, 7554444, 7760382, 9FYSSR | |
| General Motors | |
| 25164642, 5613100, 5613790 | |
| Hitachi | |
| RL45PW, RL45PX | |
| Honda | |
| 3191W-Z0M-5600, 89839-99010, 98079-56846, 98079-56855, 98079-56876-H0 | |
| Isuzu | |
| 8-94219-943-0 | |
| Kawasaki | |
| E92070-1025, J4520W20EPRU | |
| Magneti Marelli | |
| 061830211304, 062000740304, 062110390312, 062130011312, CT6FMR, CW78LPR, CW7LPR, F7LCR | |
| Mazda | |
| 0000-18-1690, 1690-18-110, 1Y01-18-110 | |
| Mazda | |
| 0000-18-1690, 1690-18-110, 1Y01-18-110 | |
| Mitsubishi | |
| M05269556, MS 851 218, MS 851 233, MS 851 236, MS 851 413, Z2 152 945 | |
| Motorcraft | |
| 1Y01, AGR22, AGR22C, AGR22CU, AGR32, AGR32C, AGR32CU, AGS22C, AGS32C, STK2, STK36 | |
| NGK | |
| STK7131 | |
| Nissan | |
| 22401-V1416, 22401-V1486-PC, 22401-V1491, 22401-W9816, B2401-V1416, S2100, V1416 | |
| Opel | |
| 90 239 568, 90 355 136 | |
| Subaru | |
| 22401-AA220, 22401-KA130 | |
| Torch | |
| F6RTC | |
| Toyota | |
| 90098-20325, 90098-20745, 90098-70033, 90098-70058 | |
| Volvo | |
| 13 06 604, 13 06 605, 13 67 528, 13 67 529 | |
| Yamaha | |
| 94700-00234, 94701-00234, 94702-00234, 94703-00234 | |
| Yanmar | |
| 160693-78010 | |
