Honda E1500

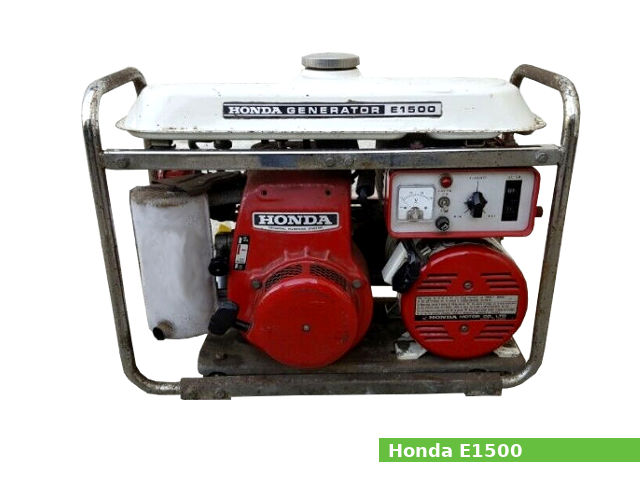

Honda E1500The Honda E1500 is AC/DC portable generator with 1.5 KVA of maximum power, 1.25 KVA of rated power and 60Hz of rated frequency. The E1500 generator is available with AC 115V and DC 12V rated voltage. The direct current terminals can be used for charging 12-volt automotive-type batteries only up to 8.3A.

The Honda E1500 generator uses the G200 single-cylinder gasoline engine with 197 cm3, (12.0 cu·in) of displacement. The engine has a side-valve (L-head) design, horizontal carburetor with butterfly valve, and transistorized magneto ignition system. The G200 engine’s compression ratio rating is 6.5:1, cylinder bore and piston stroke are 67.0 mm (2.64 in) and 56.0 mm (2.20 in), respectively.

The engine produced 5.5 PS (4.0 KW; 5.5 HP) at 3,600 rpm of maximum horsepower.

General information

Generator Specifications
Model Honda E1500
Dimensions (L x W x H): 610 x 350 x 505 mm (24.0 x 13.8 x 19.9 in)
Dry weight 47.5 kg (105.0 lbs)
AC Rated voltage: 115V
AC Rated output: 1.25 KVA (10.9 A)
AC Maximum output: 1.5 KVA
Rated frequency: 60 Hz
DC output: Only for charging automotive battery of 12V up to 8.3A
Fuel tank capacity 9.2 L (2.4 US gal, 2.0 Imp. gal)
Model Honda G200
Displacement 197 cm3 (12.0 cu-in)
Bore x stroke 67.0 x 56.0 mm (2.64 x 2.20 in)
Max. horsepower 5.5 PS (4.0 KW; 5.5 HP) at 3,600 rpm
Max. torque
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Flywheel magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Maintenance data

Cylinder compression: 6.0 kg/cm2 (85 psi) at 600 rpm
Valve clearance
Intake valve clearance: 0.08-0.16 mm (0.0031-0.0063 in)
Exhaust valve clearance: 0.16-0.24 mm (0.0063-0.0094 in)
Oil system
Lubrication system: Splash type
Oil type: SAE 10W-30 or 10W-40
Recommended oil: Honda 4-stroke or an equivalent (SE or SF)
Oil capacity: 0.7 L (0.74 US. qt, 0.62 Imp. qt.)
Fuel system
Type: Horizontal type carburetor with butterfly valve
Main jet: #75
Float height: 8.2 mm (0.3228 in)
Pilot screw opening: 2 turns out
Ignition system
Type: Contact breaker point or transistorized magneto ignition
Ignition timing: B.T.D.C. 20°
Spark plug: NGK:BR-4HS
Spark plug gap: 0.6-0.7 mm (0.0236-0.0276 in)
Spark plug torque: 20 N·m (2 kg·m, 14.7 ft·lb)
