BMW M43B18

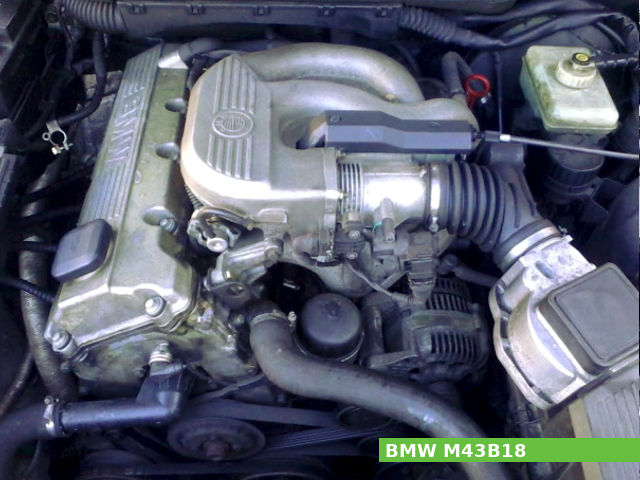

BMW M43B18The BMW M43B18 is a 1.8 L (1,796 cc, 109.6 cu·in) straight-four natural aspirated four-stroke liquid-cooled internal combustion gasoline engine, manufactured by Bayerische Motoren Werke AG from 1993 to 1999.

A 84.0 mm (3.31 in) cylinder bore and 81.0 mm (3.19 in) piston stroke give the M43B18 engine a total of 1,796 cc of displacement. The compression ratio rating is 9.7:1.

The BMW M43B18 engine produced 115.6 PS (85.0 KW; 114.0 HP) at 5,500 rpm of maximum output power and 168.0 Nm (17.14 kg·m; 124.0 ft·lb) at 3,900 rpm of peak torque, or 100.6 PS (74.0 KW; 99.2 HP) at 5,500 rpm of horsepower and 142.0 Nm (14.5 kg·m; 104.8 ft·lb) at 3,900 rpm of torque for compressed natural gas (CNG) version.

The BMW M43B18 features:

  • Chain-driven single overhead camshaft (SOHC)
  • 8 valves with hydraulic tappets
  • Cast-iron cylinder block
  • Crankshaft with four counterweights
  • Multi Point Fuel Injection (MPFI)
  • Bosch Motronic M 1.7 engine management system
  • Dual length intake manifold (BMW “DISA”)
  • Camshaft position sensor and a knock sensor
  • Pressurized lubrication system
  • Liquid-cooled cooling system

General information

Engine Specifications
Engine modelM43B18
Engine type4-stroke, SOHC, inline-4
Displacement1.8 L, 1,796 cm3, (109.6 cu·in)
Max. horsepower 115.6 PS (85.0 KW; 114.0 HP) at 5,500 rpm
CNG: 100.6 PS (74.0 KW; 99.2 HP) at 5,500 rpm
Max. torque 168.0 Nm (17.14 kg·m; 124.0 ft·lb) at 3,900 rpm
CNG: 142.0 Nm (14.5 kg·m; 104.8 ft·lb) at 3,900 rpm
Cooling systemLiquid-cooled
Lubricating systemPressurized lubrication
Fuel systemMulti Point Fuel Injection (MPFI)
Engine management systemBosch Motronic M 1.7
Starting systemElectric starter 12V
Firing order:1-3-4-2
Dimensions (L x W X H)
Dry weight

Cylinder Block and Head

Cylinder block
Cylinder block alloy:Cast-iron
Compression ratio:9.7:1
Cylinder bore:84.0 mm (3.31 in)
Piston stroke:81.0 mm (3.19 in)
Cylinder internal diameter (standard):84.000-84.014 mm (3.3071-3.3076 in)
Piston skirt outer diameter (standard):83.985 mm (3.3065 in)
Number of piston rings (compression / oil):2/1
Connecting rod big end diameter (standard):48.000-48.016 mm (1.8898-1.8904 in)
Connecting rod small end diameter (standard):22.005-22.012 mm (0.8663-0.8666 in)
Connecting rod center distance:22.000 mm (0.8661 in)
Side clearance (Top):0.020-0.200 mm (0.0008-0.0079 in)
Side clearance (Second):0.020-0.100 mm (0.0008-0.0039 in)
Ring end gap (Top):0.200-1.000 mm (0.0079-0.0394 in)
Ring end gap (Second):0.200-1.000 mm (0.0079-0.0394 in)
Ring end gap (Oil):0.400-1.400 mm (0.0157-0.0551 in)
Number of main bearings:5
Crankshaft main journal diameter:60.000 mm (2.3622 in)
Crankpin journal diameter:45.000 mm (1.7717 in)
Crankshaft center distance:36 mm (1.415 in)
Cylinder head
Cylinder head alloy:Aluminium
Valve arrangement:SOHC, chain-driven
Valves:2,(8 valves in total)
Head height:140.550-141.000 mm (5.5335-5.5512 in)
Valve head diameter (INTAKE):42.00 mm (1.6535 in)
Valve head diameter (EXHAUST):36.000 mm (1.4173 in)
Valve steam diameter (INTAKE):6.975-7.000 mm (0.2746-0.2756 in)
Valve steam diameter (EXHAUST):6.960-7.000 mm (0.274-0.2756 in)

Service Data

Compression pressure
Standard:10-11 bar (10.1-11.2 kg/cm2; 145-160 psi)
Oil system
Lubrication system:Pressurized lubrication
Oil type:API SG or SF and better
Recommended oil:SAE 10W-40, 5W-30
Oil capacity:4.0 L (4.23 US. qt, 3.52 Imp. qt.)
Oil pressure: 0.5 bar (0.51 kg/cm3; 7.25 psi) at Idle speed
4.3 bar (4.3 kg/cm3; 64.4 psi) at Rated speed
Ignition system
Spark plugBosch FGR7DQP, NGK BKR6EQUP
Spark plug gap:0.5 mm (0.0197 in)

Applications

ModelYears Produced
BMW 318i (E36)1993–1999
BMW 518i (E34)1994-1996
BMW 518g Touring (E34)1995-1996
BMW Z3 1.81996–1998

References

1. BMW TIS (Technical Information System)
