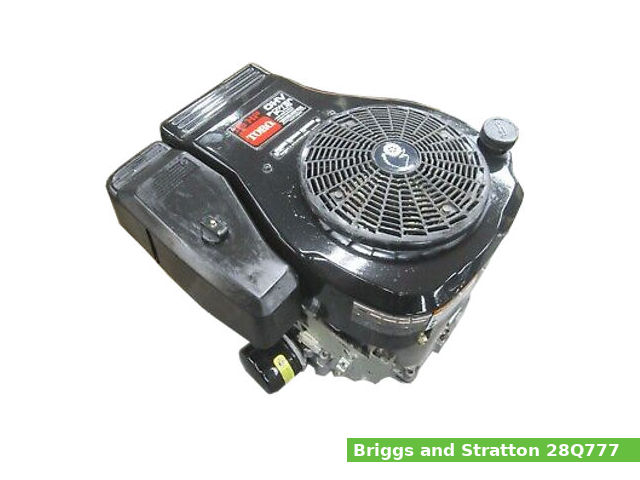

Briggs and Stratton 28Q777The Briggs and Stratton 28Q777 is a 465 cc, (28.4 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a vertical shaft, manufactured by Briggs & Stratton for general-purpose applications.

Cylinder bore and piston stroke are 87.3 mm (3.44 in) and 77.7 mm (3.06 in), respectively. The B&S 28Q777 engine produced 15.6 PS (11.5 kW; 15.5 HP) at 3,300 rpm of maximum horsepower.

The B&S 28Q777 features:

  • Cast iron sleeve
  • OHV (overhead valve) design
  • Plain bearing
  • Electronic ignition system
  • Float type carburetor
  • Centrifugal governor
  • Full pressure lubrication system
  • Forced air cooling system
  • Electric starter

General information

Engine Specifications
Engine model28Q777
Engine type4-stroke, OHV, single-cylinder
Displacement465 cm3, (28.38 cu·in)
Max. horsepower15.6 PS (11.5 kW; 15.5 HP) at 3,300 rpm
Max. torque
Cooling systemForced air
Air cleanerPaper filter with a foam pre-cleaner
Lubricating systemFull pressure lubrication system
Ignition systemElectronic
Fuel systemFloat type carburetor
Fuel consumption
Fuel usedGasoline
Starting systemElectric starter
GovernorCentrifugal governor
Dimensions (L x W X H)
Dry weight

Cylinder Block and Head

Cylinder block
Compression ratio:
Cylinder bore:87.3 mm (3.44 in)
Piston stroke:77.7 mm (3.06 in)
Cylinder internal diameter (standard):87.300-87.400 mm (3.437-3.4409 in)
Number of piston rings (compression / oil):2/1
Connecting rod big end diameter (standard):31.760-31.810 mm (1.2504-1.2524 in)
Connecting rod small end diameter (standard):20.330-20.370 mm (0.8004-0.802 in)
Piston pin diameter:20.290-20.310 mm (0.7988-0.7996 in)
Side clearance (Top):0.03-0.07 mm (0.0012-0.0028 in)
Side clearance (Second):0.03-0.07 mm (0.0012-0.0028 in)
Side clearance (Oil):0.03-0.07 mm (0.0012-0.0028 in)
Ring end gap (Top):0.15-0.35 mm (0.0059-0.0138 in)
Ring end gap (Second):0.15-0.35 mm (0.0059-0.0138 in)
Ring end gap (Oil):0.35-0.70 mm (0.0138-0.0276 in)
Crankshaft main journal diameter:34.950 mm (1.376 in)
Crankpin journal diameter:31.690-31.720 mm (1.2476-1.2488 in)
Crankshaft center distance:38.85 mm (1.53 in)
Cylinder head
Valve arrangement:OHV (overhead valve), gear driven
Valves:2
Valve steam diameter (INTAKE):5.960-5.980 mm (0.2346-0.2354 in)
Valve steam diameter (EXHAUST):5.960-5.980 mm (0.2346-0.2354 in)
Camshaft lobe height (INTAKE):21.02 mm (0.8276 in)
Camshaft lobe height (EXHAUST):21.02 mm (0.8276 in)

Tightening torque

Tightening torque specs
Air cleaner base6.0 Nm; 4.4 ft·lb
Alternator2.0 Nm; 1.5 ft·lb
Armature3.0 Nm; 2.2 ft·lb
Blower housings10.0 Nm; 7.4 ft·lb
Blower housing brackets10.0 Nm; 7.4 ft·lb
Breather4.0 Nm; 2.9 ft·lb
Carburetor to intake manifold7.0 Nm; 5.2 ft·lb
Connecting rod21.0 Nm; 15.6 ft·lb
Control bracket5.0 Nm; 3.7 ft·lb
Crankcase cover25.0 Nm; 18.5 ft·lb
Cylinder head25.0 Nm; 18.5 ft·lb
Cylinder shield5.0 Nm; 3.7 ft·lb
Exhaust manifold / adapter19.0 Nm; 14.0 ft·lb
Flywheel nut135.0 Nm; 100.0 ft·lb
Flywheel fan16.0 Nm; 11.9 ft·lb
Fuel pump5.0 Nm; 3.7 ft·lb
Governor lever nut5.0 Nm; 3.7 ft·lb
Intake manifold to cylinder head10.0 Nm; 7.4 ft·lb
Muffler19.0 Nm; 14.1 ft·lb
Oil drain plug14.0 Nm; 10.4 ft·lb
Oil pump cover10.0 Nm; 7.4 ft·lb
Starter motor16.0 Nm; 11.9 ft·lb

Service Data

Valve clearance
Intake valve clearance:0.08-0.13 mm (0.0031-0.0051 in)
Exhaust valve clearance:0.13-0.18 mm (0.0051-0.0071 in)
Oil type:SF, SG, SH, SJ or higher
Recommended oil: Summer: SAE 30, 10W-30
Winter: SAE 5W-30
Oil capacity:1.40 L (1.48 US. qt, 1.23 Imp. qt.)
Fuel system
Type:Float type carburetor
Fuel pump:Pulse type
Ignition system
Type:Electronic
Spark plug:Champion RJ19LM
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque:20 N·m (2 kg·m, 14.7 ft·lb)
Armature air gap0.25-0.36 mm (0.0098-0.0142 in)
