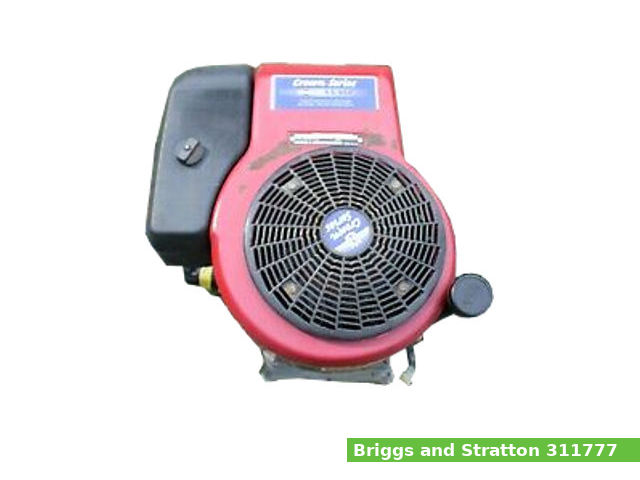

Briggs and Stratton 311777The Briggs and Stratton 311777 Intek is a 501 cc, (30.6 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a vertical shaft, manufactured by Briggs & Stratton for general-purpose applications.

A 90.6 mm (3.57 in) cylinder bore and 77.8 mm (3.06 in) piston stroke give the B&S 311777 engine a total of 501 cc of displacement. This engine produced 17.1 PS (12.6 kW; 17.0 HP) at 3,600 rpm of horsepower.

The B&S 311777 features:

  • Cast iron sleeve
  • OHV (overhead) design
  • Plain bearing
  • Electronic ignition system
  • Float type carburetor
  • Mechanical governor
  • Full pressure lubrication system
  • Forced air cooling system
  • Electric starter

General information

Engine Specifications
Engine model311777 Intek
Engine type4-stroke, OHV, single-cylinder
Displacement501 cm3, (30.6 cu·in)
Max. horsepower17.1 PS (12.6 kW; 17.0 HP) at 3,600 rpm
Max. torque
Cooling systemForced air
Air cleanerPaper filter with a foam pre-cleaner
Lubricating systemFull pressure lubrication system
Ignition systemElectronic
Fuel systemFloat type carburetor
Fuel usedGasoline
Starting systemElectric starter
GovernorMechanical governor
Dimensions (L x W X H)
Dry weight

Cylinder Block and Head

Cylinder block
Cylinder bore:90.6 mm (3.57 in)
Piston stroke:77.7 mm (3.06 in)
Cylinder internal diameter (standard):90.500-90.600 mm (3.563-3.5669 in)
Number of piston rings (compression / oil):2/1
Connecting rod small end diameter (standard):20.330-20.370 mm (0.8004-0.802 in)
Piston pin diameter:20.310-20.290 mm (0.7996-0.7988 in)
Side clearance (Top):0.05-0.12 mm (0.002-0.0047 in)
Side clearance (Second):0.05-0.12 mm (0.002-0.0047 in)
Side clearance (Oil):0.05-0.12 mm (0.002-0.0047 in)
Ring end gap (Top):0.150-0.230 mm (0.0059-0.0091 in)
Ring end gap (Second):0.350-0.450 mm (0.0138-0.0177 in)
Ring end gap (Oil):0.150-0.250 mm (0.0059-0.0098 in)
Crankshaft main journal diameter:35.000 mm (1.378 in)
Crankpin journal diameter:38.050 mm (1.498 in)
Crankshaft center distance:38.9 mm (1.53 in)
Cylinder head
Valve arrangement:OHV
Valves:2
Valve steam diameter (INTAKE):5.920-5.970 mm (0.2331-0.235 in)
Valve steam diameter (EXHAUST):5.920-5.970 mm (0.2331-0.235 in)
Camshaft lobe height (INTAKE):31.490 mm (1.2398 in)
Camshaft lobe height (EXHAUST):31.490 mm (1.2398 in)
Camshaft journal diameter:12.670 mm (0.4988 in)

Tightening torque

Tightening torque specs
Air cleaner base6.0 Nm; 4.4 ft·lb
Alternator2.0 Nm; 1.5 ft·lb
Armature3.0 Nm; 2.2 ft·lb
Blower housings10.0 Nm; 7.4 ft·lb
Blower housing brackets10.0 Nm; 7.4 ft·lb
Breather3.0 Nm; 2.2 ft·lb
Carburetor to intake manifold8.0 Nm; 5.9 ft·lb
Carburetor solenoid5.0 Nm; 3.7 ft·lb
Connecting rod17.0 Nm; 12.6 ft·lb
Control bracket5.0 Nm; 3.7 ft·lb
Crankcase sump25.0 Nm; 18.5 ft·lb
Cylinder head25.0 Nm; 18.5 ft·lb
Cylinder shield5.0 Nm; 3.7 ft·lb
Exhaust manifold / adapter19.0 Nm; 14.0 ft·lb
Flywheel nut135.0 Nm; 100.0 ft·lb
Flywheel fan16.0 Nm; 11.9 ft·lb
Fuel pump10.0 Nm; 7.4 ft·lb
Governor lever nut5.0 Nm; 3.7 ft·lb
Intake manifold to cylinder head10.0 Nm; 7.4 ft·lb
Muffler10.0 Nm; 7.4 ft·lb
Oil drain plug11.0 Nm; 8.1 ft·lb
Oil fill tube10.0 Nm; 7.4 ft·lb
Oil pump cover10.0 Nm; 7.4 ft·lb
Regulator / Rectifier5.0 Nm; 3.7 ft·lb
Rewind starter3.0 Nm; 2.2 ft·lb
Rocker ball set screw or nut5.0 Nm; 3.7 ft·lb
Rocker cover7.0 Nm; 5.2 ft·lb
Starter motor16.0 Nm; 11.9 ft·lb

Service Data

Valve clearance
Intake valve clearance:0.08-0.13 mm (0.003-0.005 in)
Exhaust valve clearance:0.13-0.17 mm (0.005-0.007 in)
Oil type:SF, SG, SH, SJ or higher
Recommended oil: Summer: SAE 30, 10W-30
Winter: SAE 5W-30
Oil capacity:1.42 L (1.5 US. qt, 1.25 Imp. qt.)
Fuel system
Type:Float type carburetor
Fuel pumpPulse type
Ignition system
Type:Electronic
Spark plug:Champion RC12YC
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque:20 N·m (2 kg·m, 14.7 ft·lb)
Armature air gap0.25-0.36 mm (0.0098-0.0142 in)
