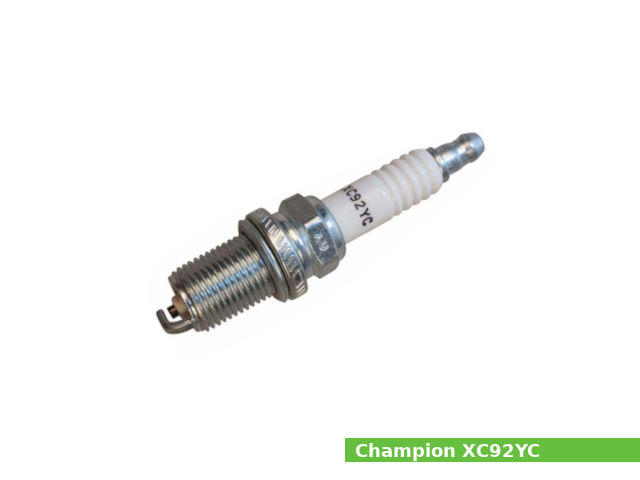

Champion XC92YC

The Champion XC92YC is a conventional spark plug with nickel alloy electrodes. This Champion spark plug features a copper core electrode that provides increased conductivity and heat control for good overall wear.

The Champion XC92YC spark plug has corrugated ribs, gasket seal type, a nickel alloy center and ground electrodes, a 16.0 mm (5/8 inches) hex size, and 0.75 mm (0.030 inches) spark plug gap.

General informational

Spark plug model Champion XC92YC (Part Number: 980)
Thread size 14.0 mm (0.55 in)
Thread pitch 1.25 mm (0.050 in)
Reach 19.0 mm (0.75 in)
HEX size 16.0 mm (0.629 in)
Seat type Gasket
Terminal type Solid
Resistor Yes
Resistor type Resistive/Inductive
Heat range 92
Torque specs Cast Iron: 35-40 Nm (3.6-4.0 kg·m; 25.8-29.5 ft·lb)
Aluminum: 25-29 Nm (2.5-3.0 kg·m; 18.4-21.6 ft·lb)
Gap 0.75 mm (0.030 in)
Center electrode
Material Nickel
Type Standard
Size 2.5 mm (0.098 in)
Projection Projected
Ground electrode
Material Nickel
Type Standard
Quantity 1
Tip design J Gap
Skirt No

Equivalents and alternatives

Champion XC92YC cross reference to
Briggs & Stratton
1326, DR17YC
980, XC92YC/T04
IK16, K16PR-U, K16PRU, K16TT, VK16
Magneti Marelli
062110020312, CT5KMMR
1667, 7938, 96628, BKR5E, NGK V-line-35
ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.
