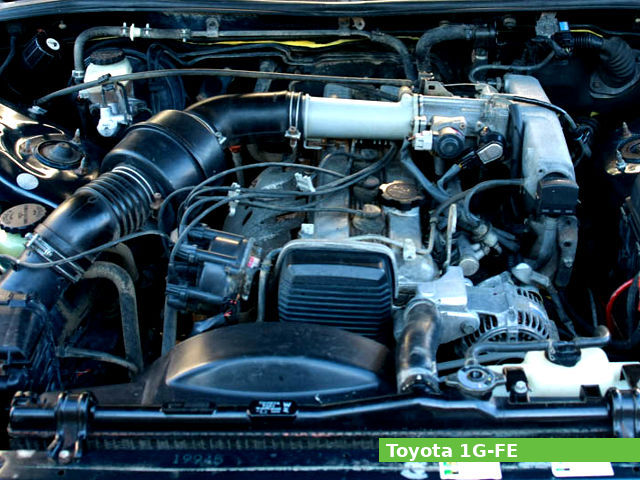

The Toyota 1G-FE is a 2.0 L (1,988 cc, 121.3 cu·in) straight-six, natural aspirated four-stroke liquid-cooled internal combustion vertical gasoline engine, manufactured by Toyota from 1988 to 2005.
A 75.0 mm (2.95 in) cylinder bore and 75.0 mm (2.95 in) piston stroke give the 1G-FE engine a total of 1,988 cc of displacement. The compression ratio rating is from 8.0:1 to 10.5:1 depending on the engine modification.
The 1G-FE engine had three generations:
- 1-st gen: (1988-1996). This engine produced 135.0 PS (99 kW; 133.0 HP) at 5,600 rpm of maximum horsepower and 176 Nm (17.9 kg·m; 129.9 ft·lb) at 4,400 rpm of peak torque.
- 2-nd gen: (1996-1998) The engine has 140.0 PS (103 KW; 138.0 HP) at 5,600 rpm of output power and 185 Nm (18.9 kg·m; 136.5 ft·lb) at 4,400 rpm of peak torque.
- 3-rd gen: (1998-2005) This 1G-FE BEAMS version has 160 PS (118 KW; 158 HP) at 6,200 rpm of maximum horsepower and 200 Nm (20.4 kg·m; 147.6 ft·lb) at 4,400 rpm of peak torque.
The Toyota 1G-FE features:
- Cast-iron cylinder block
- Aluminum cylinder head
- DOHC design (Dual belt-driven overhead camshafts)
- Multi-Point fuel injection
- VVT-i (Variable Valve Timing) system (3-rd gen.)
- ACIS (Acoustic Control Induction system) (3-rd gen.)
- Electronic throttle body (3-rd gen.)
- Forced lubrication system
- Liquid cooling system
- Electric starter
General information
| Engine Specifications | |
| Engine model | 1G-FE |
| Engine type | 4-stroke, DOHC, straight-six |
| Displacement | 2.0 L, 1,988 cm3 (121.3 cu in) |
| Max. horsepower | 1-st gen: 135 PS (99 kW; 133 HP) at 5,600 rpm 2-nd gen: 140 PS (103 KW; 138 HP) at 5,600 rpm 3-rd gen: 160 PS (118 KW; 158 HP) at 6,200 rpm |
| Max. torque | 1-st gen: 176 Nm (17.9 kg·m; 129.9 ft·lb) at 4,400 rpm 2-nd gen: 185 Nm (18.9 kg·m; 136.5 ft·lb) at 4,400 rpm 3-rd gen: 200 Nm (20.4 kg·m; 147.6 ft·lb) at 4,400 rpm |
| Cooling system | Liquid-cooled |
| Lubricating system | Forced lubrication |
| Ignition system | – |
| Fuel system | Multi-Point fuel injection) |
| Fuel used | Gasoline |
| Starting system | Electric starter |
| Firing order: | 1-5-3-6-2-4 |
| Dimensions (L x W X H) | – |
| Dry weight | – |
Cylinder Block and Head
| Cylinder block | |
| Cylinder block alloy: | Cast-iron |
| Compression ratio: | 8.0:1-12.5:1, depending on model |
| Cylinder bore: | 75.0 mm (2.95 in) |
| Piston stroke: | 75.0 mm (2.95 in) |
| Cylinder internal diameter (standard): | Without VVT-i №1,6: 74.990-75.000 mm (2.9524-2.9528 in) №2,3,4,5: 75.000-75.010 mm (2.9528-2.9532 in) With VVT-i (BEAMS) 75.010-75.023 mm (2.9532-2.9536 in) |
| Piston skirt outer diameter (standard): | Without VVT-i: 74.955-74.965 mm (2.951-2.9514 in) With VVT-i (BEAMS): 74.930-74.940 mm (2.9500-2.9504 in) |
| Number of piston rings (compression / oil): | 2/1 |
| Ring side clearance (Top): | 0.040-0.080 mm (0.0016-0.0031 in) |
| Ring side clearance (Second): | 0.030-0.070 mm (0.0012-0.0028 in) |
| Ring end gap (Top): | Without VVT-i: 0.250-0.460 mm (0.0098-0.0181 in) With VVT-i (BEAMS): 0.200-0.300 mm (0.0078-0.0118 in) |
| Ring end gap (Second): | Without VVT-i: 0.150-0.390 mm (0.0059-0.0154 in) With VVT-i (BEAMS): 0.350-0.450 mm (0.0138-0.0178 in) |
| Ring end gap (Oil): | Without VVT-i: 0.200-0.450 mm (0.0079-0.0177 in) With VVT-i (BEAMS): 0.100-0.400 mm (0.0039-0.0157 in) |
| Number of main bearings: | 7 |
| Crankshaft main journal diameter: | Without VVT-i: №4: 54.955-55.000 mm (2.1636-2.1653 in) Other: 54.983-54.988 mm (2.1647-2.1649 in) With VVT-i (BEAMS): №4: 54.970-54.988 mm (2.1642-2.1649 in)Toyota 1G-FE Other: 54.982-55.000 mm (2.1635-2.1653 in) |
| Crankpin journal diameter: | 43.985-44.000 mm (1.7317-1.7323 in) |
| Cylinder head | |
| Cylinder head alloy: | Aluminum |
| Valve arrangement: | DOHC, belt driven |
| Valves: | 4,(24 valves in total) |
| Valve head diameter (INTAKE): | – |
| Valve head diameter (EXHAUST): | – |
| Valve length (INTAKE): | Without VVT-i: 93.1-93.7 mm (3.6653-3.689 in) With VVT-i (BEAMS): 91.75 mm (3.6122 in) |
| Valve length (EXHAUST): | Without VVT-i: 93.0-93.6 mm (3.6614-3.685 in) With VVT-i (BEAMS): 91.54 mm (3.6039 in) |
| Valve steam diameter (INTAKE): | Without VVT-i: 5.970-5.985 mm (0.235-0.2356 in) With VVT-i (BEAMS): 4.970-4.985 mm (0.1956-0.1962 in) |
| Valve steam diameter (EXHAUST): | Without VVT-i: 5.965-5.980 mm (0.2348-0.2354 in) With VVT-i (BEAMS): 4.965-4.980 mm (0.1955-0.1960 in) |
| Valve spring free length (INTAKE): | Without VVT-i: 38.40 mm (1.5118 in) With VVT-i (BEAMS): 50.0 mm (1.9685 in) |
| Valve spring free length (EXHAUST): | Without VVT-i: 38.40 mm (1.5118 in) With VVT-i (BEAMS): 50.0 mm (1.9685 in) |
| Camshaft lobe height (INTAKE): | Without VVT-i: 41.210-41.310 mm (1.6224-1.6264 in) With VVT-i (BEAMS): 46.750-46.850 mm (1.8405-1.8445 in) |
| Camshaft lobe height (EXHAUST): | Without VVT-i: 41.360-41.460 mm (1.6283-1.6323 in) With VVT-i (BEAMS): 46.270-46.370 mm (1.8216-1.8256 in) |
Tightening torque
| Tightening torque specs | |
| Cylinder head: | 64 Nm (6.5 kg·m; 47.2 lb·ft) |
| Main bearing cap bolts: | 60 Nm (6.1 kg·m; 44.3 lb·ft) |
| Connecting rods cap bolts: | 50 Nm (5.1 kg·m; 36.9 lb·ft) |
| Spark plug: | 18 N·m (1.8 kg·m, 13.3 lb·ft) |
Service Data
| Valve clearance | |
| Intake valve clearance: | 0.15-0.25 mm (0.006-0.0100 in) |
| Exhaust valve clearance: | 0.25-0.35 mm (0.0098-0.0138 in) |
| Cylinder compression pressure | |
| Standard: | Without VVT-i: 13.0 kg/cm2, 185 psi/ 300 rpm With VVT-i (BEAMS): 12.8 kg/cm |
| Minimum: | 10.0 kg/cm |
| Oil system | |
| Lubrication system: | Forced lubrication |
| Recommended engine oil, SAE: | 10W-30 |
| Oil type, API: | SG or better |
| Engine oil capacity: | Without oil filter: 3.9 l (4.1 US qts, 3.4 Imp qts) With oil filter: 4.1 l (4.3 US qts, 3.6 Imp qts) |
| Oil change interval, km (miles): | 10,000 (6,000) |
| Ignition system | |
| Spark plug: | Without VVT-i: DENSO K16R-11 With VVT-i (BEAMS): DENSO K20R-11 |
| Spark plug torque: | 18 N·m (1.8 kg·m, 13.3 lb·ft) |
Valve clearance adjustment data
- For non-VVTi engine valve lifters are available in 27 sizes to range from 2.00 mm (0.0787 in) to 3.30 mm (0.1299 in), in steps of 0.05 mm (0.0019 in).
- For VVTi (BEAMS) engine valve lifters are available in 35 sizes to range from 5.06 mm (0.1992 in) to 5.74 mm (0.2260 in), in steps of 0.02 mm (0.0008 in).
Vehicle applications
| Model | Years Produced |
| Toyota Altezza (XE10) | 1998-2005 |
| Lexus IS 200 (XE10) | 1999-2005 |
| Toyota Chaser (X90) | 1992-1996 |
| Toyota Chaser (X100) | 1996-2000 |
| Toyota Crown (S130) | 1987-1999 |
| Toyota Crown (S140) | 1991-1995 |
| Toyota Crown (S150) | 1995-2001 |
| Toyota Crown (S170) | 1999-2007 |
| Toyota Mark II (X80) | 1988-1995 |
| Toyota Mark II (X90) | 1992-1996 |
| Toyota Mark II (X100) | 1996-2000 |
| Toyota Mark II (X110) | 2000-2007 |
| Toyota Mark II Blit (X110) | 2000-2007 |
| Toyota Cresta (X80) | 1988-1995 |
| Toyota Cresta (X90) | 1992-1996 |
| Toyota Cresta (X100) | 1996-2000 |
| Toyota Verossa (X110) | 2001-2004 |
| Toyota Soarer (Z20) | 1986-1991 |
| Toyota Supra (A70) | 1988-1993 |
