Cub Cadet RZT 54 KH

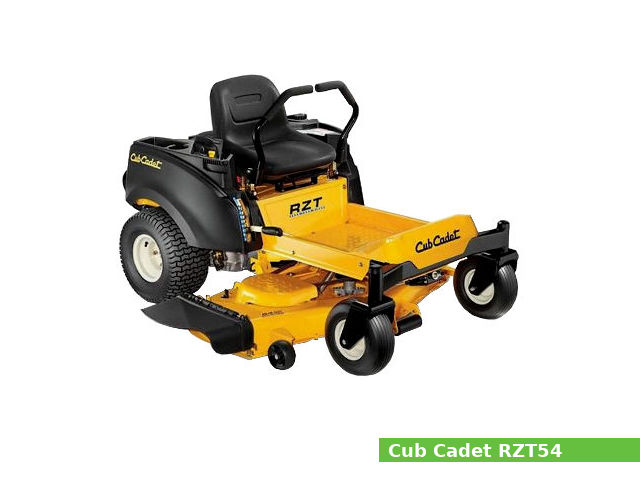

Cub Cadet RZT 54 KHThe Cub Cadet RZT 54 KH is a zero-turn mower model from the RZT series, manufactured from 2011 to 2012 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version.

The Cub Cadet RZT 54 KH is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet RZT 54 KH zero-turn mower features:

  • The Kohler SV735 gasoline engine which produces 24.3 PS (17.9 kW; 24.0 HP) at 3,600 rpm of gross horsepower.
  • Power or differential power steering
  • Open operator station
  • Independent front PTO with electric clutch

General specifications

General Specifications
Model Cub Cadet RZT 54 KH
Tractor type zero-turn mower
Production years 2011-2012
Factory
Dimensions and weight
Length 2,030 mm (79.9 in)
Width
Height 910 mm (35.8 in)
Wheel base 1,100 mm (43.3 in)
Weight 276 kg (608 lbs)
Fuel capacity
Fuel tank capacity 10.6 liters (2.8 US gal.; 2.3 Imp. gal)

Engine

Engine
Engine model Kohler SV735
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 725 cm3, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio 9.0:1
Horsepower (gross) 24.3 PS (17.9 kW; 24.0 HP) at 3,600 rpm
Starter Electric
Oil system
Lubrication system: Full pressurized
Oil type: API SJ or higher
Recommended oil: SAE 10W-30
Ignition system
Spark plug: Champion RC12YC
Spark plug gap: 0.76 mm (0.0299 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance: 0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance: 0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Power or differential power
Brakes
Transmission
Transmission manufacturer or model Hydro-Gear EZT
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 11.3 kmh (7 mph)
Reverse: 6.4 kmh (4 mph)

Tires

Tires
Front tires Lawn/turf: 13×5.0-6
Rear tires Lawn/turf: 18×9.5-8

PTO (Power take-off shaft)

PTO
Middle PTO type Independent with electric clutch
Middle PTO speed

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps
Battery 12V, CCA 230A
