Cub Cadet i1046

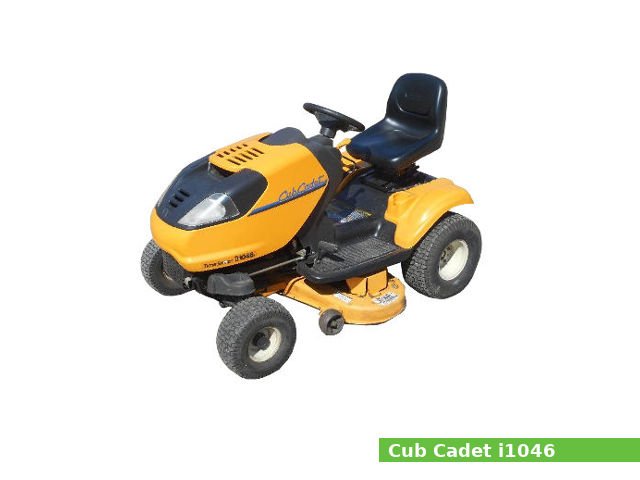

Cub Cadet i1046The Cub Cadet i1046 is a lawn tractor model from the iSeries series, manufactured from 2007 to 2009 by Cub Cadet (a part of MTD). It was available in a two-wheel-drive (2WD) version.

The Cub Cadet i1046 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet i1046 lawn tractor features:

  • The Kohler SV710 gasoline engine which produces 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm of horsepower
  • Differential steering
  • Dry disc brakes
  • Open operator station
  • Independent middle PTO with electric clutch

General specifications

General Specifications
Model Cub Cadet i1046
Tractor type Lawn tractor
Production years 2007-2009
Factory
Dimensions and weight
Length 1,750 mm (68.9 in)
Width
Height
Wheel base 1,200 mm (47.2 in)
Weight 249 kg (550 lbs)
Fuel capacity
Fuel tank capacity 10.6 liters (2.8 US gal.; 2.3 Imp. gal)

Engine

Engine
Engine model Kohler SV710
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 725 cm3, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio 9.0:1
Horsepower 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm
Starter Electric
Oil system
Lubrication system: Full pressurized
Oil type: API SJ or higher
Recommended oil: SAE 10W-30
Oil capacity (with filter): 1.5 L (1.6 US.qts, 1.32 Imp. qts)
Ignition system
Spark plug: Champion RC12YC
Spark plug gap: 0.76 mm (0.0299 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance: 0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance: 0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Differential
Brakes Dry disc
Transmission
Transmission manufacturer or model Hydro-Gear EZT
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.7 kmh (6.0 mph)
Reverse: 5.1 kmh (3.2 mph)

Tires

Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×8-8

PTO (Power take-off shaft)

PTO
Middle PTO type Independent with electric clutch
Middle PTO speed

Electrical system

Electrical system
Ground Negative
Charging system Alternator
Charging amps 15A
Battery 12V, CCA 235A

Attachments

Cub Cadet 46″ mid-mount mower deck
Cutting width 1,160 mm (46 in)
Cut height 30-90 mm (1.25-3.72 in)
Cut positions 6
Cub Cadet: 46″ front-mount blade
Width 1,160 mm (46 in)
Cub Cadet 42″ front-mount snowblower
Width 1,060 mm (42 in)
