Kubota D1403

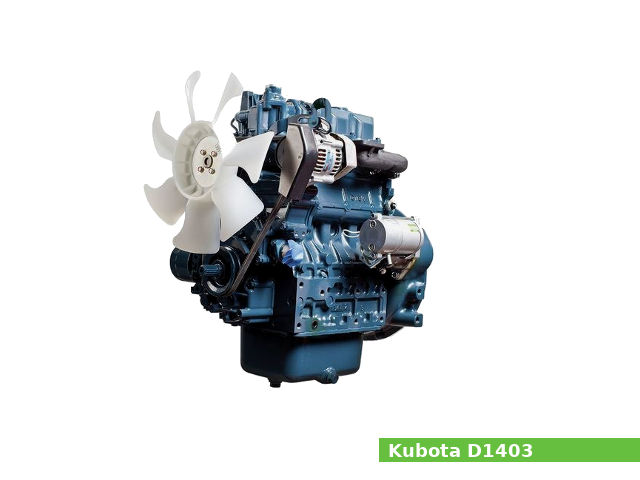

Kubota D1403The Kubota D1403 is a 1.4 L (1,393 cc, 85.0 cu·in) natural aspirated three-cylinders four-stroke liquid-cooled internal combustion vertical diesel engine, manufactured by Kubota for general-purpose applications.

An 80.0 mm (3.15 in) cylinder bore and an 92.4 mm (3.64 in) piston stroke give the D1403 engine a total of 1,393 cc of displacement. The compression ratio rating is 23.0:1.

The D1403-B(E) engine produced 29.4 PS (21.6 KW; 29.0 HP) at 2,800 rpm of the net (intermittent) horsepower and 31.4 PS (23.1 KW; 31.0 HP) at 2,800 rpm of gross (intermittent) horsepower.

The Kubota D1403 features:

  • Spherical type combustion chamber (N-TVCS of E-TVCS, after Jan 1994, s/n 12212 and above)
  • Bosch mini type fuel injection pump (PFR 3M)
  • Bosch throttle-type injection nozzle
  • Centrifugal ball mechanical governor
  • Forced lubrication by trochoid pump
  • Liquid cooling system forced circulation with water pump
  • Electric starter (12V, 1.2 kW)
  • Dynamo for charing (12V, 360 W)

General information

Engine Specifications
Engine modelD1403-B(E)
Engine type4-stroke, vertical, three-cylinders
Displacement1.4 L, 1,393 cm3, (85.0 cu·in)
Max. horsepower Net (intermittent): 29.4 PS (21.6 KW; 29.0 HP) at 2,800 rpm
Gross (intermittent): 31.4 PS (23.1 KW; 31.0 HP) at 2,800 rpm
Max. torque
Cooling systemLiquid-cooled
Lubricating systemForced lubrication by pump
Combustion chamberSpherical type
Fuel injection pumpBosch mini type (PFR 3M)
Injection nozzleBosch throttle-type
Fuel usedDiesel fuel No.2-D
Starting systemElectric starter (12V, 1.2 kW)
Starting support deviceGlow plug in combustion chamber
GovernorCentrifugal ball mechanical governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)568 x 512 x 639 mm (22.4 x 20.2 x 25.2 in)
Dry weight148.0 kg (326.0 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:23.0:1
Cylinder bore:80.0 mm (3.15 in)
Piston stroke:92.4 mm (3.64 in)
Cylinder internal diameter (standard):80.000-85.019 mm (3.1496-3.1504 in)
Number of piston rings (compression / oil):2/1
Connecting rod small end diameter (standard):25.025-25.040 mm (0.9852-0.9858 in)
Piston pin diameter:25.002-25.011 mm (0.9843-0.9847 in)
Side clearance (Second):0.093-0.120 mm (0.0037-0.0047 in)
Side clearance (Oil):0.020-0.052 mm (0.0008-0.0020 in)
Ring end gap (Top):0.300-0.450 mm (0.0118-0.0177 in)
Ring end gap (Second):0.300-0.450 mm (0.0118-0.0177 in)
Ring end gap (Oil):0.250-0.450 mm (0.0099-0.0177 in)
Number of main bearings:4
Crankshaft main journal diameter:51.921-51.940 mm (2.0441-2.0449 in)
Crankpin journal diameter:43.959-43 975 mm (1.7307-1.7313 in)
Cylinder head
Valves:2 (6 valves in total)
Valve seat width (INTAKE):2.120 mm (0.0835 in)
Valve seat width (EXHAUST):2.120 mm (0.0835 in)
Value seat angle (INTAKE):60°
Value seat angle (EXHAUST):45°
Value face angle (INTAKE):60°
Value face angle (EXHAUST):45°
Valve steam diameter (INTAKE):7.960-7.975 mm (0.3134-0.3140 in)
Valve steam diameter (EXHAUST):7.960-7.975 mm (0.3134-0.3140 in)
Valve spring free length (INTAKE):41.7-42.2 mm (1.6417-1.6614 in)
Valve spring free length (EXHAUST):41.7-42.2 mm (1.6417-1.6614 in)
Camshaft cam height (INTAKE):33.470 mm (1.3177 in)
Camshaft cam height (EXHAUST):33.470 mm (1.3177 in)
Camshaft journal diameter :39.934-39.950 mm (1.5722-1.5728 in)

Tightening torque

Tightening torque specs
Rocker arm bracket nuts:22.5-27.5 Nm (2.4-2.8 kgf-m, 17.4-20.3 lb-ft)
Cylinder head:93.1-98.0 Nm (9.5-10.0 kgf-m, 68.7-72.3 lb-ft)
Nozzle holder assembly:49.0-68.6 Nm (5.0-7.0 kgf-m, 36.2-50.6 lb-ft)
Connecting rod bolts: Non-flange bolt:
36.3-41.2 Nm (3.7-4.2 kgf-m, 26.6-30.4 lb-ft)
Flange bolt1:
44.1-49.0 Nm (4.5-5.0 kgf-m, 32.5-36.2 lb-ft)
Flywheel bolts:98.1-107.9 Nm (10.0-11.0 kgf-m, 72.3-79.6 lb-ft)
Main bearing case bolts 1:46.1-50.9 Nm (4.7-5.2 kgf-m, 34.0-37.6 lb-ft)
Main bearing case bolts 2:68.6-73.5 Nm (7.0-7.5 kgf-m, 50.6-54.2 lb-ft)

Service Data

Maximum speed:3,000 rpm
Idle speed:700-750 rpm
Cylinder compression:36.0-38.0 kgf/cm2 (3.53-3.72 MPa, 512-540 psi)
Compression differential limit between cylinders:10% or less
Valve clearance
Intake valve clearance:0.18-0.22 mm (0.0071-0.0087 in)
Exhaust valve clearance:0.18-0.22 mm (0.0071-0.0087 in)
Oil system
Lubrication system:Forced lubrication by trochoid pump
Oil type:API CD or better
Oil capacity: Oil pan depth 90.0 mm (3.54 in): 5.6 L (1.5 US gal, 1.2 Imp. gal)
Oil pan depth 124.0 mm (4.88 in): 7.0 L (1.8 US gal, 1.5 Imp. gal)
Oil filter:Full flow paper filter (cartrige type)
Fuel system
Fuel injection pumpBosch K-type mini pump
Injection nozzleDN12 SD12
Injection timing:18° B.T.D.C.
Fuel injection pressure13.73 MPa (140 kgf/cm2, 1991 psi)
Cooling system
Type:Pressurized radiator (not included in the basic engine), forced circulation with water pump
Thermostat’s valve opening temperature:69.5-72.5°C (157.1-162.5°F)
Temperature at which thermostat completely opens:85°C (185°F)
Electrical system
Battery:12V, 70-80 Ah or equivalent
Alternator current output:35A/14V at 4,000 rpm
Alternator brush Length (std/min):10.5 mm (0.4130 in) / 4.5 mm (0.1770 in)
Glow plug resistance:Approx 0.8 Ω
