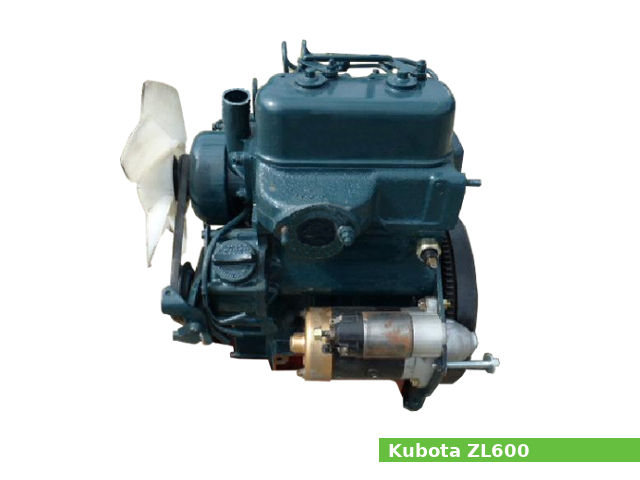

The Kubota ZL600 is a 0.6 L (577 cc, 35.21 cu·in) natural aspirated two-cylinders four-stroke liquid-cooled internal combustion vertical diesel engine, manufactured by Kubota for general-purpose applications.
A 70.0 mm (2.76 in) cylinder bore and 75.0 mm (2.95 in) piston stroke give the ZL600 engine a total of 577 cc of displacement.
The ZL600 engine produced 12.6 PS (9.3 KW; 12.5 HP) at 2,700 rpm of horsepower and 33.0 N·m (3.3 kg·m, 24.3 ft·lb) at 2,000 rpm of maximum torque.
The Kubota ZL600 features:
- Spherical type combustion chamber
- Bosch PFR fuel injection pump
- Bosch DN12SD12 injection nozzle
- Centrifugal ball mechanical governor
- Forced lubrication by pump lubrication system
- Liquid cooling system
- Electric starter (12V, 0.8 kW)
General information
| Engine Specifications | |
| Engine model | ZL600 |
| Engine type | 4-stroke, vertical, two-cylinders |
| Displacement | 577 cm3, (35.21 cu·in) |
| Max. horsepower | 12.6 PS (9.3 KW; 12.5 HP) at 2,700 rpm |
| Max. torque | 33.0 N·m (3.3 kg·m, 24.3 ft·lb) at 2,000 rpm |
| Cooling system | Liquid-cooled |
| Lubricating system | Forced lubrication by pump |
| Combustion chamber | Spherical type |
| Fuel injection pump | Bosch PFR fuel injection pump |
| Injection type | Indirect injection |
| Injection nozzle | Bosch DN12SD12 |
| Fuel used | Diesel fuel No.2-D |
| Starting system | Electric starter (12V, 0.8 kW) |
| Starting support device | Glow plug in combustion chamber |
| Governor | Centrifugal ball mechanical governor |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
| Dimensions (L x W X H) | – |
| Dry weight | – |
Cylinder Block and Head
| Cylinder block | |
| Compression ratio: | – |
| Cylinder bore: | 70.0 mm (2.76 in) |
| Piston stroke: | 77.0 mm (2.95 in) |
| Number of piston rings (compression / oil): | 2/1 |
| Number of main bearings: | 3 |
| Cylinder head | |
| Valves: | 2,(4 valves in total) |
Service Data
| Engine | |
| Maximum speed: | 3,900 rpm |
| Valve clearance | |
| Intake valve clearance: | 0.200-0.250 mm (0.0079-0.0098 in) |
| Exhaust valve clearance: | 0.200-0.250 mm (0.0079-0.0098 in) |
| Oil system | |
| Lubrication system: | Forced lubrication by pump |
| Oil type: | API CC or better |
| Oil capacity: | 2.0 liters (0.5 US gal, 0.4 Imp. gal) |
| Oil filter: | Full flow paper filter |
| Fuel system | |
| Fuel injection pump | Bosch PFR pump |
| Injection nozzle | Bosch DN12SD12 type |
| Injection timing: | 26° B.T.D.C. |
| Fuel injection pressure | 13.73 MPa (140 kgf/cm2, 1991 psi) |
| Cooling system | |
| Type: | Pressurized radiator, forced circulation with water pump (not included in the basic engine) |
| Thermostat’s valve opening temperature: | 80.5-83.5°C (176.9-182.3°F) |
| Temperature at which thermostat completely opens: | 95°C (203°F) |
| Coolant capacity: | 3.0 liters (3.2 US.qts, 2.6 Imp. qts) |
| Electrical system | |
| Battery: | 12V, 65AH or equivalent |
Applications
| Manufacturer or Brand | Models |
| Tractors | |
| Kubota | B6000 |
