Toro Z4200 zero-turn mower specs and service data

The Toro Z4200 is a zero-turn mower model from the TimeCutter Z series, manufactured from 2007 to 2010 by Toro. This zero-turn mowe was available in two-wheel drive (2WD) version.

The Toro TimeCutter Z4200 is equipped with a 0.6 L (36.4 cu·in) single-cylinder gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Toro Z4200 zero-turn mower features:

The Kohler Courage SV590 gasoline engine which produces 19.3 PS (14.2 kW; 19.0 HP) at 3,600 rpm of horsepower.
Power steering
Open operator station
Independent front PTO with electric clutch

General specifications

General Specifications
Model	Toro TimeCutter Z4200
Tractor type	Zero-turn mower
Production years	2007-2010
Factory	–
Dimensions and weight
Length	1,850 mm (72.8 in)
Width	–
Height	1,020 mm (40.2 in)
Wheel base	–
Weight	–
Fuel capacity
Fuel tank capacity	11.4 liters (3 US gal.; 2.5 Imp. gal)

Engine

Engine
Engine model	Kohler Courage SV590
Engine type	Four-stroke, air-cooled
Cylinders	1
Fuel type	Gasoline
Displacement	597 cm³, (36.4 cu·in)
Bore and stroke	94.0 mm X 86.0 mm (3.70 in X 3.39 in)
Compression ratio	8.5:1
Horsepower	19.3 PS (14.2 kW; 19.0 HP) at 3,600 rpm
Torque	48.8 Nm (4.98 kg·m; 36.01 ft·lb)
Starter	Electric
Oil system
Lubrication system:	Full pressurized
Oil type:	API SJ or higher
Recommended oil:	SAE 10W-30
Oil capacity (with filter):	1.5 L (1.6 US.qts, 1.32 Imp. qts)
Ignition system
Spark plug:	Champion RC12YC
Spark plug gap:	0.76 mm (0.0299 in)
Spark plug torque:	27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance:	0.127 mm (0.005 in)
Exhaust valve clearance:	0.178 mm (0.007 in)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Power
Brakes	–
Transmission
Transmission manufacturer or model	Hydro-Gear EZT
Transmission type	Hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 11.3 kmh (7 mph) Reverse: 5.5 kmh (3.4 mph)

Tires

Tires
Front tires	Lawn/turf: 10×4
Rear tires	Lawn/turf: 18×7.5

PTO (Power take-off shaft)

PTO
Middle PTO type	Independent with electric clutch
Middle PTO speed	–

Electrical system

Electrical system
Ground	Negative
Charging system	–
Charging amps	–
Battery	12V, CCA 195A

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.

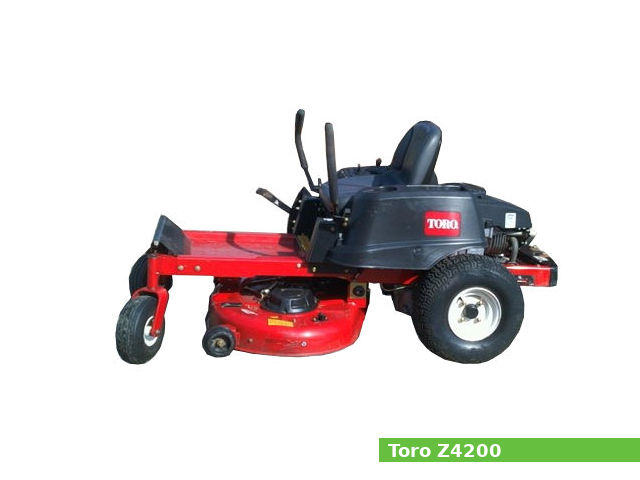

Toro Z4200
