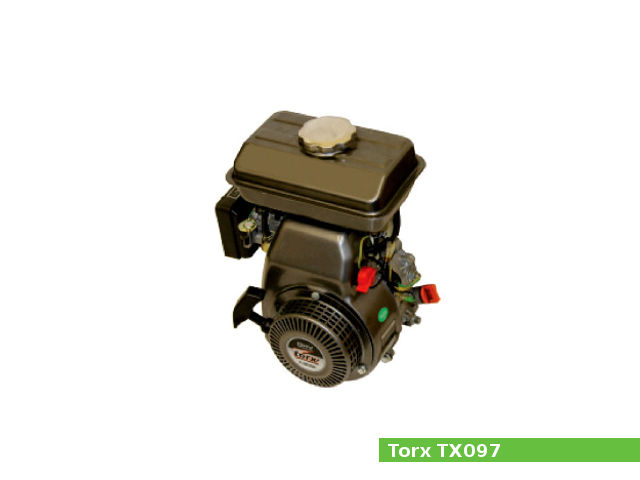

The Torx TX097 is a 97 cc, (5.92 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft. The engine is used for general-purpose applications, such as pumps, lawn cutting equipment, shredders, high-pressure washer, hydraulic pumps, and drive units.
The Torx TX097 engine has a single cylinder, overhead valve (OHV) design for increased efficiency and optimal power transfer, and recoil starter. The TX097 is equipped with a 1.4 L (0.37 US. gal. 0.31 Imp. gal.) fuel tank. This engine produced 2.4 PS (1.8 kW; 2.4 HP) at 3,600 rpm of horsepower and 3.1 N·m (0.3 kg·m, 2.3 ft·lb) at 3,000 rpm of torque.
General information
| Engine Specifications | |
| Engine model | TX097 |
| Engine type | 4-stroke, OHV, single-cylinder |
| Displacement | 97 cm3, (5.92 cu·in) |
| Max. horsepower | 2.4 PS (1.8 kW; 2.4 HP) at 3,600 rpm |
| Max. torque | 3.1 N·m (0.3 kg·m, 2.3 ft·lb) at 3,000 rpm |
| Cooling system | Forced air |
| Lubricating system | Splash |
| Fuel system | Carburetor |
| Fuel tank capacity | 1.4 L (0.37 US. gal. 0.31 Imp. gal.) |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Starting system | Recoil starter |
| Stoping system | Ignition primary circuit ground |
| Governor | Centrifugal govervor |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
| Dry weight | 9.0 kg (19.8 lbs) |
Cylinder Block and Head
A 52.0 mm (2.05 in) cylinder bore and 46.0 mm (1.81 in) piston stroke give the TX097 engine a total of 97 cc of displacement. Compression ratio rating is 7.0:1.
| Cylinder block | |
| Compression ratio: | 7.0:1 |
| Cylinder bore: | 52.0 mm (2.05 in) |
| Piston stroke: | 46.0 mm (1.81 in) |
| Number of piston rings (compression / oil): | 2/1 |
| Crankshaft center distance: | 23 mm (0.905 in) |
| Cylinder head | |
| Valve arrangement: | OHV |
| Valves:: | 2 |
Service Data
The 4-stroke engine oil with a viscosity of 10W-30 is recommended for the TX097, refilling oil capacity is 0.4 L (0.42 US. qt, 0.35 Imp. qt.).
| Oil system | |
| Lubrication system: | Splash |
| Oil capacity: | 0.4 L (0.42 US. qt, 0.35 Imp. qt.) |
| Fuel system | |
| Type: | Carburetor |
