Torx TX200

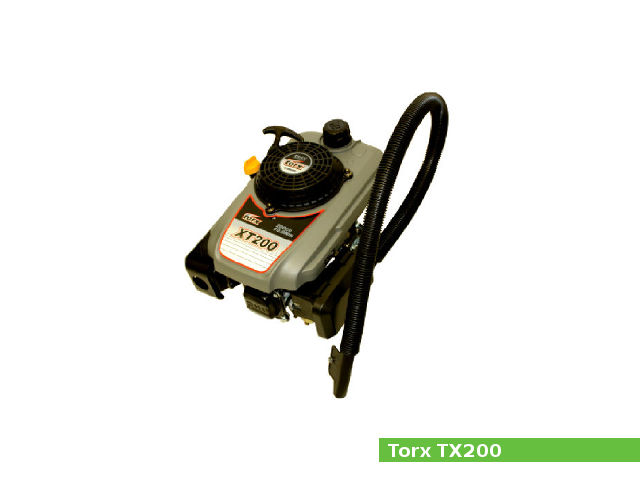

Torx TX200 engineThe Torx TX200 is a 0.2 L (196 cc, 11.96 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a vertical shaft.

The Torx XT200 engine has a single cylinder, overhead valve (OHV) and recoil starter. The TX200 is equipped with 1.0 L (0.26 US. gal. 0.22 Imp. gal.) fuel tank. The Torx TX200 engine produced 6.5 PS (4.8 kW; 6.5 HP) at 3,600 rpm of maximum output power and 10.0 N·m (1 kg·m, 7.4 ft·lb) at 3,000 rpm of peak torque.

General information

Engine Specifications
Engine modelTX200
Engine type4-stroke, OHV, single-cylinder
Displacement196 cm3, (11.96 cu·in)
Max. horsepower6.5 PS (4.8 kW; 6.4 HP) at 3,600 rpm
Max. torque10.0 N·m (1 kg·m, 7.4 ft·lb) at 3,000 rpm
Cooling systemForced air
Lubricating systemSplash
Fuel systemCarburetor
Fuel tank capacity1.0 L (0.26 US. gal. 0.22 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
GovernorCentrifugal govervor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dry weight10.9 kg (24 lbs)

Cylinder Block and Head

It has a 70.0 mm (2.76 in) cylinder bore and 51.0 mm (2.01 in) piston stroke. Compression ratio rating is 8.0:1.

Cylinder block
Compression ratio:8.0:1
Cylinder bore:70.0 mm (2.76 in)
Piston stroke:51.0 mm (2.01 in)
Number of piston rings (compression / oil):2/1
Crankshaft center distance:25.5 mm (1.005 in)
Cylinder head
Valve arrangement:OHV
Valves::2

Service Data

The engine oil, API service classification SE class or equivalent is recommended for the TX200. Refilling oil capacity is 0.6 L (0.63 US. qt, 0.53 Imp. qt.).

Oil system
Lubrication system:Splash
Oil capacity:0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Fuel system
Type:Carburetor
