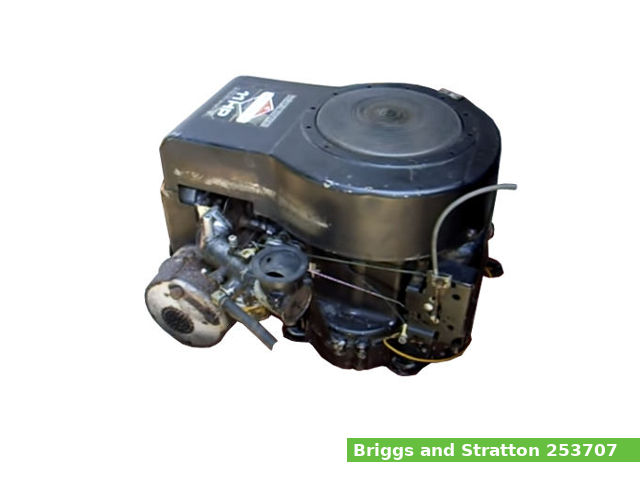

Briggs and Stratton 253707The Briggs and Stratton 253707 is a 399 cc (24.35 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine, manufactured by Briggs & Stratton for general-purpose applications.

Cylinder bore is 87.3 mm (3.44 in) and piston stroke is 66.7 mm (2.63 in). This engine produced 11.2 PS (8.2 kW; 11.0 HP) at 3,600 rpm of horsepower and 22.7 N·m (2.3 kg·m, 16.7 ft·lb) at 2,800 rpm of torque.

The Briggs and Stratton 253707 features:

  • L-head (side valve) design
  • Vertical PTO-shaft
  • Transistor module ignition system
  • Float type carburetor
  • Centrifugal governor
  • Forced air cooling system
  • Electric starter

General information

Engine Specifications
Engine modelB&S 253707
Engine type4-stroke, L-head (side valve), single-cylinder
Displacement399 cm3, (24.35 cu·in)
Max. horsepower11.2 PS (8.2 kW; 11.0 HP) at 3,600 rpm
Max. torque22.7 N·m (2.3 kg·m, 16.7 ft·lb) at 2,800 rpm
Cooling systemForced air
Air cleanerDual element (cartridge and pre-cleaner)
Ignition systemTransistor module
Fuel systemFloat type carburetor
Fuel usedGasoline
Starting systemElectric starter
GovernorCentrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)

Cylinder Block and Head

Cylinder block
Compression ratio:
Cylinder bore:87.3 mm (3.44 in)
Piston stroke:66.7 mm (2.63 in)
Cylinder internal diameter (standard):87.290-87.310 mm (3.4366-3.4374 in)
Number of piston rings (compression / oil):2/1
Connecting rod big end diameter (standard):31.760-31.810 mm (1.2504-1.2524 in)
Connecting rod small end diameter (standard):20.330-20.370 mm (0.8004-0.802 in)
Piston pin diameter:20.290-20.310 mm (0.7988-0.7996 in)
Ring end gap (Top):0.89 mm (0.035 in)
Ring end gap (Second):0.89 mm (0.035 in)
Ring end gap (Oil):1.14 mm (0.0449 in)
Crankshaft main journal diameter:35.000 mm (1.378 in)
Crankpin journal diameter:31.720 mm (1.2488 in)
Crankshaft center distance:33.35 mm (1.315 in)
Cylinder head
Valve arrangement:L-head (side valve)

Tightening torque

Tightening torque specs
Cylinder Head18.6 Nm; 13.8 ft·lb
Connecting Rod20.9 Nm; 15.5 ft·lb
Flywheel Nut87.8 Nm; 65.0 ft·lb
Crankcase Cover15.8 Nm; 11.7 ft·lb
Fuel Shut-Off Valve8.0 Nm; 5.9 ft·lb
Governor Lever Nut7.0 Nm; 5.2 ft·lb
Spark Plug Torque18.0 Nm; 13.5 ft·lb
Oil Drain Plug20.0 Nm; 14.9 ft·lb

Service Data

Valve clearance
Intake valve clearance:0.08-0.13 mm (0.003-0.005 in)
Exhaust valve clearance:0.13-0.15 mm (0.005-0.006 in)
Oil system
Oil type:SE, SF or SG
Recommended oil: Summer: SAE 30, 10W-30
Winter: SAE 5W-20, 5W-30
Oil capacity:1.4 L (1.48 US. qt, 1.23 Imp. qt.)
Fuel system
Type:Float type carburetor
Main Adjustment Screw1-1/2 turn out
Idle Adjustment Screw1 turn out turns out
Ignition system
Type:Transistor module
Spark plug:Champion CJ-8, Champion RJ19LM
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque:18 N·m (1.8 kg·m, 13.3 ft·lb)
Armature air gap0.25-0.36 mm (0.0098-0.0142 in)
