Craftsman CTX9500

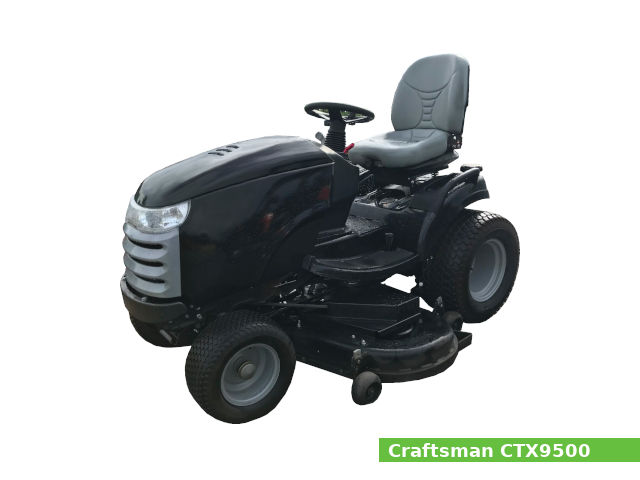

Craftsman CTX9500The Craftsman CTX9500 is a garden tractor model from the CTX series, manufactured during 2012 by Simplicity for distributor Craftsman. It was available in two-wheel drive (2WD) version.

The Craftsman CTX9500 is equipped with one of two engines: a 724 cc (44.2 cu·in) two-cylinder gasoline engine with 79.24 mm (3.12 in) of the cylinder bore and 73.41 mm (2.89 in) of the piston stroke, or a 810 cc (49.4 cu·in) two-cylinder gasoline engine with 83.81 mm (3.3 in) of the cylinder bore and 73.41 mm (2.89 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Craftsman CTX9500 garden tractor features:

  • The Briggs & Stratton 44P777 gasoline engine which produces 26.4 PS (19.4 kW; 26.0 HP) at 3,600 rpm of horsepower or the Briggs & Stratton 49M877 gasoline engine with 30.5 PS (22.4 kW; 30.0 HP) at 3,600 rpm of output power.
  • Manual or power steering
  • Open operator station
  • Independent middle PTO with electric clutch
  • 13.6 liters (3.6 US gal.; 3 Imp. gal)

The Craftsman CTX9000 variants:

  • 107.25006: the Briggs & Stratton 44P777 engine (26.0 HP), Tuff Torq K66 hydrostatic transmission and 52 inches (1,320 mm) mower deck with 3-blade and manual lift
  • 107.25007: the Briggs & Stratton 49M877 engine (22.0 HP), Tuff Torq K71 hydrostatic transmission and 54 inches (1,370 mm) mower deck with 3-blade and hydraulic lift

General specifications

General Specifications
ModelCraftsman CTX9500
Tractor typeGarden tractor
Production years2012
Factory
Dimensions and weight
Length 107.25006: 1,905 mm (75 in)
107.25007: 2,300 mm (90.6 in)
Width 107.25006: 1,549 mm (61 in)
Height 107.25006:1,194 mm (47 in)
107.25007: 1,320 mm (52 in)
Wheel base
Weight 107.25007: 532 kg (1,173 lbs)
Fuel capacity
Fuel tank capacity13.6 liters (3.6 US gal.; 3 Imp. gal)

Engine

Engine (107.25006)
Engine modelBriggs and Stratton 44P777 Professional Series
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement724 cm3, (44.2 cu·in)
Bore and stroke79.24 mm X 73.41 mm (3.12 in X 2.89 in)
Horsepower26.4 PS (19.4 kW; 26 HP) at 3,600 rpm
StarterElectric
Oil system
Lubrication system:Full pressure lubrication system with spin-on oil filter
Oil type:API SF, SG, SH, SJ or higher
Recommended oil:SAE 5W-30, 10W-30
Oil capacity: W/o oil filter: 1.8 liters (1.9 US.qts, 1.58 Imp. qts)
With oil filter: 1.9 liters (2.01 US.qts, 1.67 Imp. qts)
Ignition system
Spark plug: Briggs & Stratton 491055
Champion RC12YC
Spark plug gap:0.76 mm (0.030 in)
Armature air gap:0.20-0.30 mm (0.008-0.012 in)
Valve clearance
Intake valve clearance:0.10-0.15 mm (0.004-0.006 in)
Exhaust valve clearance:0.10-0.15 mm (0.004-0.006 in)
Engine (107.25007)
Engine modelBriggs and Stratton 49M877 Professional Series
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement810 cm3, (49.4 cu·in)
Bore and stroke83.81 mm X 73.41 mm (3.3 in X 2.89 in)
Horsepower30.5 PS (22.4 kW; 30 HP) at 3,600 rpm
StarterElectric
Oil system
Lubrication system:Full pressure lubrication system with spin-on oil filter
Oil type:API SF, SG, SH, SJ or higher
Recommended oil:SAE 5W-30, 10W-30
Oil capacity: W/o oil filter: 1.9 liters (2.01 US.qts, 1.67 Imp. qts)
With oil filter: 2.0 liters (2.11 US.qts, 1.76 Imp. qts)
Ignition system
Spark plug: Briggs & Stratton 491055
Champion RC12YC
Spark plug gap:0.76 mm (0.030 in)
Armature air gap:0.20-0.30 mm (0.008-0.012 in)
Valve clearance
Intake valve clearance:0.10-0.15 mm (0.004-0.006 in)
Exhaust valve clearance:0.10-0.15 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering type 107.25006: Manual
107.25007: Power
Brakes
Differential lock 107.25007: Mechanical rear
Transmission (107.25006)
Transmission manufacturer or modelTuff Torq K66
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 9.8 kmh (6.1 mph)
Reverse: 4.8 kmh (3 mph)
Transmission oil capacity2.5 L (0.7 US. gal, 0.5 Imp. gal.)
Transmission (107.25007)
Transmission manufacturer or modelTuff Torq K71
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 12.9 kmh (8 mph)
Reverse: 4.8 kmh (3 mph)

Tires

Tires
Front tiresLawn/turf: 16×6.5-8
Rear tiresLawn/turf:
107.25006: 23×10.5-12
107.25007: 24×12-12

PTO (Power take-off shaft)

PTO
Middle PTO typeIndependent with electric clutch
Middle PTO speed

Electrical system

Electrical system
GroundNegative
Charging system
Charging amps
Battery 107.25006: 12V, CCA 340
107.25007: 12V, CCA 500

Attachments

Craftsman 52″ mid-mount mower deck with 3-blade and manual lift
Cutting width1,320 mm (52 in)
Cut height20-100 mm (1-4 in)
Overall width1,540 mm (61 in)
Drive systemBelt
Base deck platformSide discharge
Craftsman 54″ mid-mount mower deck with 3-blade and hydraulic lift
Cutting width1,370 mm (54 in)
Cut height20-100 mm (1-4 in)
Overall width1,700 mm(67 in)
Drive systemBelt
Base deck platformSide discharge
