Craftsman DGT4000

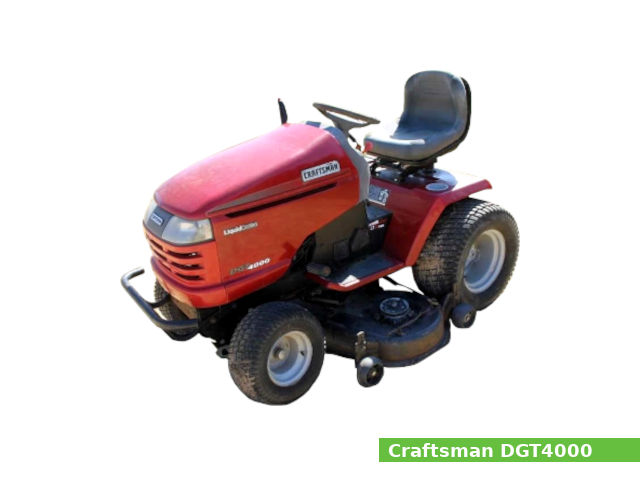

Craftsman DGT4000The Craftsman DGT4000 is a garden tractor model from the DGT series, manufactured during 2001 by AYP for distributor Craftsman (a part of Sears). It was available in two-wheel drive (2WD) version.

The Craftsman DGT4000 is equipped with a 674 cc (41.1 cu·in) two-cylinder gasoline engine with 80.0 mm (3.15 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Craftsman DGT4000 garden tractor features:

  • The Kohler LV675 gasoline engine which produces 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Open operator station
  • Sleeve hitch (optional)
  • Independent middle PTO with electric clutch
  • Lawn/turf tires front: 16×7.5-8, rear 24×12-12
  • 13.2 liters (3.5 US gal.; 2.9 Imp. gal)

General specifications

General Specifications
Model Craftsman DGT4000 (917.27524)
Tractor type Garden tractor
Production years 2001
Factory
Dimensions and weight
Length
Width
Height
Wheel base
Weight
Fuel capacity
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)

Engine

Engine
Engine model Kohler LV675
Engine type Four-stroke, liquid-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 674 cm3, (41.1 cu·in)
Bore and stroke 80.0 mm X 67.0 mm (3.15 in X 2.64 in)
Compression ratio 8.5:1
Horsepower 23.3 PS (17.1 kW; 23.0 HP) at 3,600 rpm
Max. torque 44.0 N·m (4.5 kg·m, 32.4 ft·lb) at 2,400 rpm
Starter Electric 12V
Oil system
Lubrication system: Full pressurized
Oil type: API SJ or higher
Recommended oil: SAE 10W-30
Oil capacity: 1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Ignition system
Spark plug: Champion RC14YC
Spark plug gap: 0.76 mm (0.030 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)
Cooling system
Coolant capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission
Transmission manufacturer or model Hydro-Gear BDU-10L
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph)
Reverse: 3.4 kmh (2.1 mph)

Tires

Tires
Front tires Ag: 16×7.5-8
Rear tires Ag: 24×12-12

Rear Hitch

Three-Point Hitch
Category Sleeve hitch (optional)
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

PTO
Middle PTO type Independent with electric clutch
Middle PTO speed

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps 15A
Battery 12V, CCA 280A, Group U1R

Attachments

Craftsman 48″ mid-mount mower deck with 3-blade and manual lift
Cutting width 1,210 mm (48 in)
Drive system Belt
Craftsman 24412: 48″ front-mount blade with manual-lift and manual-angle
Cutting width 1,210 mm (48 in)
Craftsman 24846: 46″ front-mount two-stage snowblower with manual-lift
Cutting width 1,160 mm (46 in)
