Craftsman CTX9000

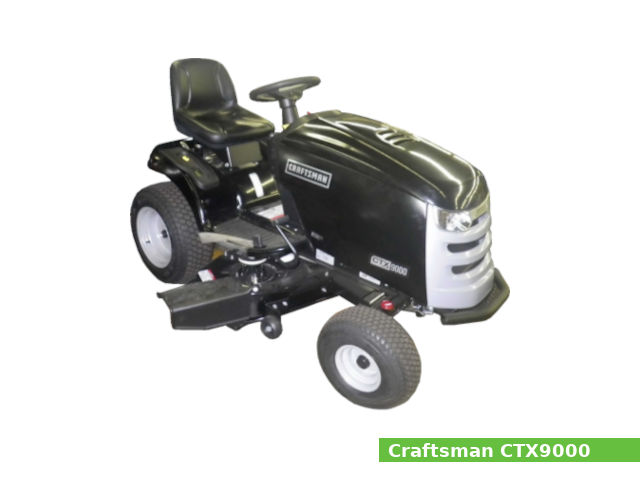

Craftsman CTX9000The Craftsman CTX9000 is a lawn tractor model manufactured during 2012 by Simplicity for distributor Craftsman. It was available in two-wheel drive (2WD) version.

The Craftsman CTX 9000 is equipped with a 656 cc (40.0 cu·in) OHV, V-twin gasoline engine with 75.44 mm (2.97 in) of the cylinder bore and 73.40 mm (2.89 in) of the piston stroke, and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Craftsman CTX9000 lawn tractor features:

  • The Briggs & Stratton 40G777 gasoline engine which produces 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm of horsepower or the Briggs & Stratton 40H777 gasoline engine with 22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm of output power.
  • Manual steering
  • Disc brakes
  • Open operator station
  • Independent middle PTO with electric clutch

The Craftsman CTX9000 variants:

  • 107.25004: the Briggs & Stratton 40G777 engine (20.0 HP), Tuff Torq K46 hydrostatic transmission and 42 inches (1,060 mm) mower deck with 2-blade and manual lift
  • 107.25005: the Briggs & Stratton 40H777 engine (22.0 HP), Tuff Torq K57 hydrostatic transmission and 46 inches (1,160 mm) mower deck with 3-blade and manual lift

General specifications

General Specifications
Model Craftsman CTX9000
Tractor type lawn tractor
Production years 2012-
Factory
Dimensions and weight
Length 107.25004: 1,800 mm (70.9 in)
107.25005: 1,770 mm (69.7 in)
Width 107.25004: 1,320 mm (52 in)
Height 107.25004: 1,140 mm (44.9 in)
107.25005: 1,090 mm (42.9 in)
Wheel base
Weight
Fuel capacity
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)

Engine

Engine (107.25004)
Engine model Briggs & Stratton 40G777 Professional Series
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 656 cm3, (40.0 cu·in)
Bore and stroke 75.4 mm X 73.4 mm (2.97 in x 2.89 in)
Horsepower 20.3 PS (14.9 kW; 20 HP) at 3,600 rpm
Starter Electric
Oil system
Lubrication system: Full pressure lubrication system with spin-on oil filter
Oil type: API SF, SG, SH, SJ or higher
Recommended oil: SAE 5W-30, 10W-30
Oil capacity: W/o oil filter: 1.8 liters (1.9 US.qts, 1.58 Imp. qts)
With oil filter: 1.9 liters (2.01 US.qts, 1.67 Imp. qts)
Ignition system
Spark plug: Briggs & Stratton 491055
Champion RC12YC
Spark plug gap: 0.76 mm (0.0299 in)
Armature air gap: 0.20-0.30 mm (0.008-0.012 in)
Valve clearance
Intake valve clearance: 0.10-0.15 mm (0.004-0.006 in)
Exhaust valve clearance: 0.10-0.15 mm (0.004-0.006 in)
Engine (107.25005)
Engine model Briggs and Stratton 40H777 Professional Series
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 656 cm3, (40.0 cu·in)
Bore and stroke 75.4 mm X 73.4 mm (2.97 in x 2.89 in)
Horsepower 22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm
Starter Electric
Oil system
Lubrication system: Full pressure lubrication system with spin-on oil filter
Oil type: API SF, SG, SH, SJ or higher
Recommended oil: SAE 5W-30, 10W-30
Oil capacity: W/o oil filter: 1.8 liters (1.9 US.qts, 1.58 Imp. qts)
With oil filter: 1.9 liters (2.01 US.qts, 1.67 Imp. qts)
Ignition system
Spark plug: Briggs & Stratton 491055
Champion RC12YC
Spark plug gap: 0.76 mm (0.0299 in)
Armature air gap: 0.20-0.30 mm (0.008-0.012 in)
Valve clearance
Intake valve clearance: 0.10-0.15 mm (0.004-0.006 in)
Exhaust valve clearance: 0.10-0.15 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes Disc
Transmission (107.25004)
Transmission manufacturer or model Tuff Torq K46
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph)
Reverse: 5.6 kmh (3.5 mph)
Hydraulic fluid 1OW-30 Premium engine oil
Transmission (107.25005)
Transmission manufacturer or model Tuff Torq K57
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph)
Reverse: 5.6 kmh (3.5 mph)
Hydraulic fluid 1OW-30 Premium engine oil

Tires

Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 22×9.5-12 (107.25004), 22×10-10 (107.25005)

PTO (Power take-off shaft)

PTO
Middle PTO type Independent with electric clutch
Middle PTO speed

Electrical system

Electrical system
Ground Negative
Charging system Alternator
Charging amps 9 amp DC Reg
Battery 12V, CCA 230A

Attachments

Craftsman 42″ mid-mount mower deck with 2-blade and manual lift
Cutting width 1,060 mm (42 in)
Cut height 37-100 mm (1.5-4 in)
Overall width 1,320 mm (52 in)
Drive system Belt
Craftsman 46″ mid-mount mower deck with 3-blade and manual lift
Cutting width 1,160 mm (46 in)
Cut height 20-100 mm (1-4 in)
Overall width 1,420 mm(56 in)
Drive system Belt
