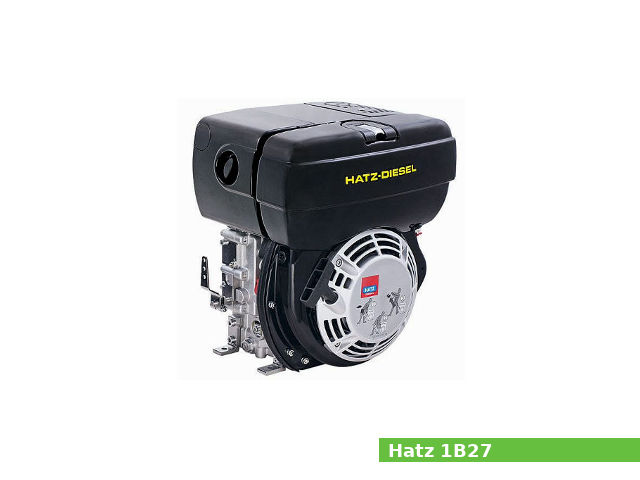

The Hatz 1B27 is a 0.28 L (280 cc, 17.09 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small diesel engine with a horizontal shaft, manufactured by Motorenfabrik Hatz GmbH & Co. KG for general-purpose applications.
The Hatz 1B27 engine has a single-cylinder, light-alloy cylinder head, forged crankshaft, valve timing via rocker arm, pushrods, finger-follower, and camshaft. The Hatz 1B27 engine can be equipped with a recoil or electric starter (12V or 24V) and alternator (14V – 14A at 3,000 rpm; 7A at 1,500 rpm or 28V – 7A at 3,000 rpm or 4A at 1,500 rpm). The engine used pressurized lubrication with a fine filter in the main flow. The 1B27 is equipped with a 3.0 L (0.79 US. gal. 0.66 Imp. gal.) fuel tank.
This diesel engine produced from 2.2 PS (1.6 kW; 2.1 HP) at 1,500 rpm to 5.4 PS (4.0 kW; 5.4 HP) at 3,600 rpm of horsepower ( ISO 3046-1) and 12.50 N·m (1.3 kg·m, 9.2 ft·lb) at 2,300 rpm of peak torque.
General information
| Engine Specifications | |
| Engine model | 1B27 |
| Engine type | 4-stroke, single-cylinder |
| Displacement | 243 cm3, (14.83 cu·in) |
| Max. horsepower | From 2.2 PS (1.6 kW; 2.1 HP) at 1,500 rpm to 5.4 PS (4.0 kW; 5.4 HP) at 3,600 rpm |
| Max. torque | 12.50 N·m (1.3 kg·m, 9.2 ft·lb) at 2,300 rpm |
| Cooling system | Forced air |
| Lubricating system | Pressurized lubrication |
| Fuel system | Direct injection |
| Fuel tank capacity | 3.0 L (0.79 US. gal. 0.66 Imp. gal.) |
| Fuel used | Diesel |
| Starting system | Recoil or electric starter (12 V or 24 V ) |
| Charging system | Alternator |
| Dimensions (L x W X H) | 304 x 361 x 401 mm (12 x 14.2 x 15.8 in) |
| Dry weight | With recoil starter: 29.0 kg (63.9 lbs) With electric starter: 33.8 kg (74.5 lbs) |
Cylinder Block and Head
Cylinder bore is 74.0 mm (2.91 in) and piston stroke is 65.0 mm (2.56 in). Compression ratio rating is 21.5:1.
| Cylinder block | |
| Compression ratio: | 21.5:1 |
| Cylinder bore: | 74.0 mm (2.91 in) |
| Piston stroke: | 65.0 mm (2.56 in) |
| Ring end gap (Top): | 0.250-0.450 mm (0.0098-0.0177 in) |
| Ring end gap (Second): | 0.250-0.450 mm (0.0098-0.0177 in) |
| Ring end gap (Oil): | 0.250-0.450 mm (0.0098-0.0177 in) |
| Crankshaft center distance: | 32.5 mm (1.28 in) |
| Cylinder head | |
| Valves: | 2 |
Service Data
The API – CF / CH-4, ACEA – B3 / E4 oil with a viscosity of SAE 5W-30, 10W-30 is recommended for the 1B27, refilling oil capacity is 0.9 L (0.95 US. qt, 0.79 Imp. qt.). The valve clearance is 0.10 mm (0.004 in) for intake valves and 0.10 mm (0.004 in) for exhaust valves.
| Engine | |
| Maximum speed: | 3,600 rpm rpm |
| Valve clearance | |
| Intake valve clearance: | 0.10 mm (0.004 in) |
| Exhaust valve clearance: | 0.10 mm (0.004 in) |
| Oil system | |
| Lubrication system: | Pressurized lubrication |
| Oil type: | API: CF/CH-4, ACEA: B3/E4 |
| Recommended oil: | SAE 5W-30, 10W-30 |
| Oil capacity: | 0.9 L (0.95 US. qt, 0.79 Imp. qt.) |
| Fuel system | |
| Type: | Direct injection |
