Hatz 1B50

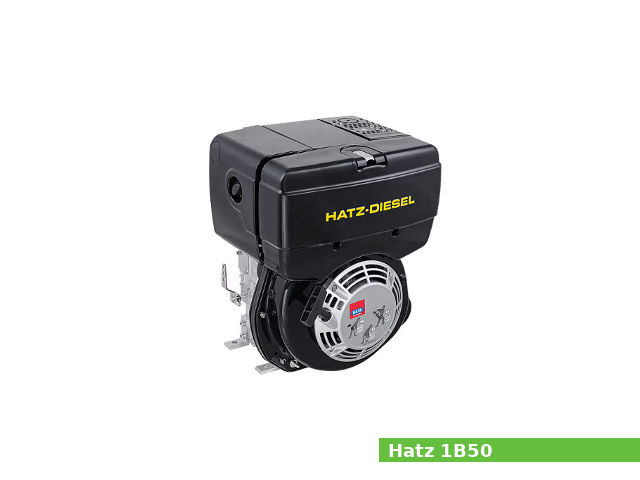

Hatz 1B50The Hatz 1B50 is a 0.5 L (517 cc, 31.55 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small diesel engine with a horizontal shaft, manufactured by Motorenfabrik Hatz GmbH & Co. KG for general-purpose applications.

The Hatz 1B50 engine has a single-cylinder, direct injection combustion system, light-alloy cylinder head, forged crankshaft, valve timing via rocker arm, pushrods, finger-follower, and camshaft. The Hatz 1B50 engine can be equipped with a recoil or electric starter (12V or 24V) and alternator (14V – 14A at 3,000 rpm; 7A at 1,500 rpm or 28V – 7A at 3,000 rpm or 4A at 1,500 rpm). The engine used pressurized lubrication with a fine filter in the main flow. The 1B50 is equipped with a 5.0 L (1.32 US. gal. 1.1 Imp. gal.) fuel tank.

This diesel engine produced from 5.7 PS (4.2 kW; 5.6 HP) at 1,500 rpm to 11.6 PS (8.5 kW; 11.4 HP) at 3,600 rpm of horsepower (ISO 1585) and 27.4 N·m (2.8 kg·m, 20.2 ft·lb) at 2,500 rpm of peak torque.

General information

Engine Specifications
Engine model1B50
Engine type4-stroke, single-cylinder
Displacement517 cm3, (31.55 cu·in)
Max. horsepower From 5.7 PS (4.2 kW; 5.6 HP) at 1,500 rpm
to 11.6 PS (8.5 kW; 11.4 HP) at 3,600 rpm
Max. torque27.4 N·m (2.8 kg·m, 20.2 ft·lb) at 2,300 rpm
Cooling systemForced air
Lubricating systemPressurized lubrication
Fuel systemDirect injection
Fuel tank capacity5.0 L (1.32 US. gal. 1.1 Imp. gal.)
Fuel usedDiesel
Starting systemRecoil or electric starter (12 V or 24 V )
Charging systemAlternator
Dimensions (L x W X H)348 x 392 x 480 mm (13.7 x 15.4 x 18.9 in)
Dry weight With recoil starter: 51.2 kg (112.9 lbs)
With electric starter: 56.5 kg (124.6 lbs)

Cylinder Block and Head

Cylinder bore and piston stroke are 93.0 mm (3.66 in) and 76.0 mm (2.99 in), respectively. Compression ratio rating is 20.5:1.

Cylinder block
Compression ratio:20.5:1
Cylinder bore:93.0 mm (3.66 in)
Piston stroke:76.0 mm (2.99 in)
Ring end gap (Top):0.250-0.450 mm (0.0098-0.0177 in)
Ring end gap (Second):0.250-0.450 mm (0.0098-0.0177 in)
Ring end gap (Oil):0.250-0.450 mm (0.0098-0.0177 in)
Crankshaft center distance:38 mm (1.495 in)
Cylinder head
Valves:2

Service Data

The API – CF / CH-4, ACEA – B3 / E4 oil for engines without diesel oxidation catalyst (DOC) and a viscosity of SAE 5W-30, 10W-30 is recommended for the 1B50, refilling oil capacity is 1.5 L (1.59 US. qt, 1.32 Imp. qt.). For engines with a diesel oxidation catalyst (DOC) use ACEA E6. The valve clearance is 0.10 mm (0.004 in) for intake valves and 0.10 mm (0.004 in) for exhaust valves.

Engine
Maximum speed:3,600 rpm rpm
Valve clearance
Intake valve clearance:0.10 mm (0.004 in)
Exhaust valve clearance:0.10 mm (0.004 in)
Oil system
Lubrication system:Pressurized lubrication
Oil type: With diesel oxidation catalyst (DOC): ACEA E6
Without diesel oxidation catalyst (DOC): CF/CH-4, ACEA: B3/E4
Recommended oil:SAE 5W-30, 10W-30
Oil capacity:1.5 L (1.59 US. qt, 1.32 Imp. qt.)
Fuel system
Type:Direct injection
