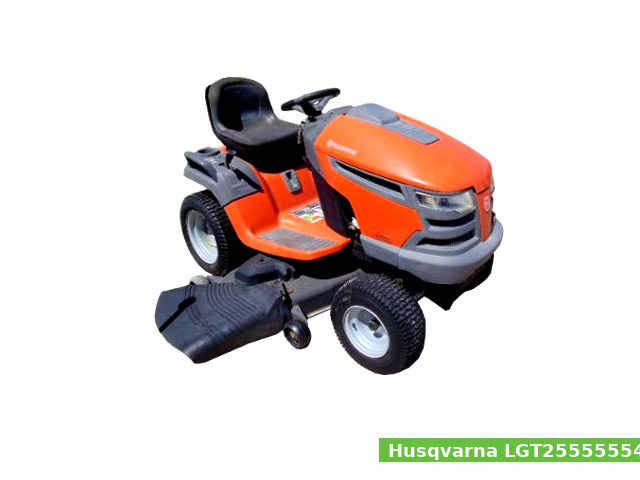

Husqvarna LGT2554 lawn tractor specs and service data

The Husqvarna LGT2554 is a lawn tractor model manufactured from 2009 to 2011 by Husqvarna. It was available in two-wheel drive (2WD) version.

The Husqvarna LGT2554 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna LGT2554 lawn tractor features:

The Kohler Courage SV730 gasoline engine which produces 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm of horsepower.
Manual steering
Open operator station
Independent front PTO with electric clutch

General specifications

General Specifications
Model	Husqvarna LGT2554
Tractor type	Lawn tractor
Production years	2009-2011
Factory	–
Dimensions and weight
Length	1,790 mm (70.5 in)
Width	1,440 mm (56.7 in)
Height	1,050 mm (41.3 in)
Wheel base	1,210 mm (47.6 in)
Weight	247 kg (545 lbs)
Fuel capacity
Fuel tank capacity	15.0 liters (4 US gal.; 3.3 Imp. gal)

Engine
Engine model	Kohler SV730
Engine type	Four-stroke, air-cooled, V-twin
Cylinders	2
Fuel type	Gasoline
Displacement	725 cm³, (44.2 cu·in)
Bore and stroke	83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio	9.0:1
Horsepower	25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm
Starter	Electric
Oil system
Lubrication system:	Full pressurized
Oil type:	API SJ or higher
Recommended oil:	SAE 10W-30
Oil capacity (with filter):	1.9 L (2.0 US. qt, 1.7 Imp. qt.)
Ignition system
Spark plug:	Champion RC12YC
Spark plug gap:	0.76 mm (0.0299 in)
Spark plug torque:	27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance:	0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance:	0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual
Brakes	–
Transmission
Transmission manufacturer or model	Tuff Torq
Transmission type	Belt-driven hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 8.4 kmh (5.2 mph) Reverse: 4.7 kmh (2.9 mph)

Tires

Tires
Front tires	Lawn/turf: 16.5×6.5-8
Rear tires	Lawn/turf: 22×9.5-12

PTO (Power take-off shaft)

PTO
Front PTO type	Independent with electric clutch
Front PTO speed	–

Electrical system

Electrical system
Ground	Negative
Charging system	–
Charging amps	15A
Battery	12V, 28Ah, CCA 230

Attachments

Husqvarna 54″ mid-mount mower deck with 3-blade
Cutting width	1,370 mm (54 in)
Cut height	30-100 mm (1.5-4 in)
Cut positions	7
