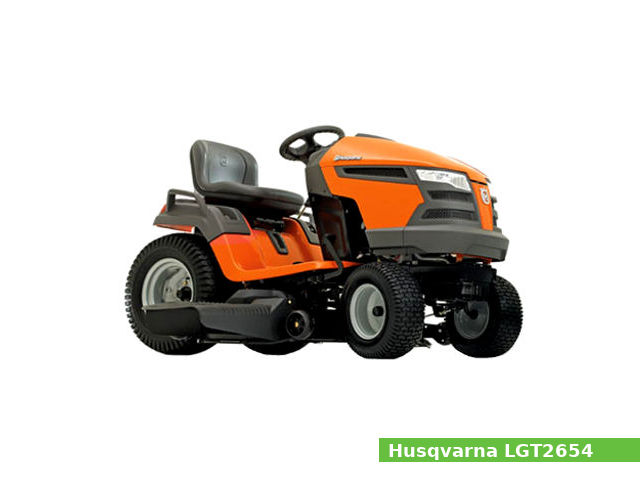

Husqvarna LGT2654

Husqvarna LGT2654The Husqvarna LGT2654 is a lawn tractor model manufactured from 2007 to 2017 by Husqvarna. It was available in two-wheel drive (2WD) version.

The Husqvarna LGT2654 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna LGT2654 lawn tractor features:

  • The Kohler SV735 gasoline engine which produces 26.4 PS (19.4 kW; 26.0 HP) at 3,600 rpm of horsepower.
  • Manual steering
  • Open operator station
  • Independent front PTO with electric clutch

General specifications

General Specifications
ModelHusqvarna LGT2654
Tractor typeLawn tractor
Production years2007-2017
Factory
Dimensions and weight
Length1,790 mm (70.5 in)
Width1,440 mm (56.7 in)
Height1,070 mm (42.1 in)
Wheel base1,210 mm (47.6 in)
Weight248 kg (547 lbs)
Fuel capacity
Fuel tank capacity15.0 liters (4 US gal.; 3.3 Imp. gal)

Engine

Engine
Engine modelKohler SV735
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement725 cm3, (44.2 cu·in)
Bore and stroke83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio9.0:1
Horsepower26.4 PS (19.4 kW; 26.0 HP) at 3,600 rpm
StarterElectric
Oil system
Lubrication system:Full pressurized
Oil type:API SJ or higher
Recommended oil:SAE 10W-30
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Ignition system
Spark plug:Champion RC12YC
Spark plug gap:0.76 mm (0.0299 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance:0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance:0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission
Transmission manufacturer or modelTuff Torq K46
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph)
Reverse: 4.7 kmh (2.9 mph)

Tires

Tires
Front tiresLawn/turf: 16.5×6.5-8
Rear tiresLawn/turf: 22×9.5-12

PTO (Power take-off shaft)

PTO
Middle PTO typeIndependent with electric clutch
Middle PTO speed

Electrical system

Electrical system
GroundNegative / Positive
Charging system
Charging amps15A
Battery12V, CCA: 230A, Group U1R

Attachments

Husqvarna 54″ mid-mount mower deck with 3-blade
Cutting width1,370 mm (54 in)
Cut height30-100 mm (1.5-4 in)
Cut positions7
