John Deere 185

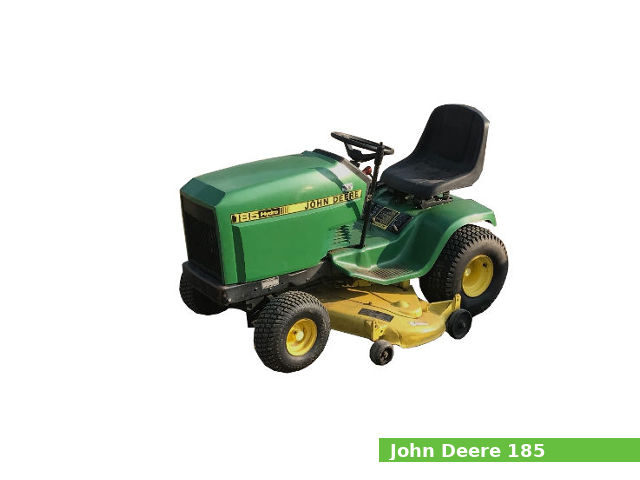

John Deere 185The John Deere 185 is a lawn tractor model from the Late 100 Lawn series, manufactured from 1986 to 1990 by John Deere in Horicon, Wisconsin, USA. It was available in two-wheel drive (2WD) version.

The John Deere 185 is equipped with a 534 cc (32.6 cu·in) single-cylinder gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The JD 185 lawn tractor features:

  • The Kawasaki FC540V gasoline engine which produces 17.3 PS (12.7 kW; 17.0 HP) at 3,600 rpm of horsepower
  • Manual, sector and pinion steering
  • Integral mechanical transmission disc brakes
  • Open operator station

General specifications

General Specifications
ModelJohn Deere 185
Tractor typeLawn tractor
Production years1986-1990
FactoryHoricon, Wisconsin, USA
Dimensions and weight
Length1,670 mm (65.7 in)
Width
Height1,010 mm (39.8 in)
Wheel base1,130 mm (44.5 in)
Weight 38-inch deck: 283 kg (624 lbs)
42-inch deck: 292 kg (644 lbs)
Fuel capacity
Fuel tank capacity8.3 liters (2.2 US gal.; 1.8 Imp. gal)

Engine

Engine
Engine modelKawasaki FC540V
Engine typeFour-stroke, air-cooled, OHV
Cylinders1
Fuel typeGasoline
Displacement0.5 L, 534 cm3, (32.6 cu·in)
Bore and stroke89.0 mm X 86.0 mm (3.5 in X 3.39 in)
Compression ratio8.3:1
Fuel systemFloat type carburetor with fixed main jet
Horsepower17.3 PS (12.7 kW; 17.0 HP) at 3,600 rpm
StarterElectric
Oil system
Lubrication system:Full pressurized
Oil type:4-stroke or an equivalent (SF, SE, SD)
Recommended oil:SAE 10W-30
Oil capacity:1.6 L (1.69 US. qt, 1.41 Imp. qt.)
Ignition system
Spark plug:NGK BPR5ES or Champion RN11YC
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Valve clearance
Intake valve clearance:0.15 mm (0.006 in)
Exhaust valve clearance:0.15 mm (0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering typeManual sector-and-pinion
BrakesIntegral transmission disc
Transmission
Transmission manufacturer/modelSundstrand
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.0 kmh (5.0 mph)
Reverse: 4.0 kmh (2.5 mph)
Transmission oil capacity0.7 L (0.2 US. gal, 0.2 Imp. gal.)

Tires

Tires
Front tiresLawn/turf: 15×6.00-6
Rear tiresLawn/turf: 18×8.50-8 (38-inch deck), 20×10.00-8 (46-inch deck)

Electrical system

Electrical system
GroundNegative
Charging systemFlywheel alternator
Charging amps15A
Battery12V, CCA: 255A

Serial numbers

38-inch deck
1986M00185A372001
1987M00185A440001
1988M00185A495001
1989M00185A595001
1989-endM00185A750000
1990M00185A010001
FinalM00185A100000
46-inch deck
1986M00185B378001
1987M00185B450001
1988M00185B505001
1989M00185B605001
1989-endM00185B750000
1990M00185B020001
FinalM00185B100000

Attachments

John Deere 38″ mid-mount mower deck with 2-blade and manual lift
Cutting width960 mm (38 in)
Overall width1,260 mm (49.7 in)
Cut height20-100 mm (1-4 in)
John Deere 46″ mid-mount mower deck with 3-blade and manual lift
Cutting width1,160 mm (46 in)
Overall width1,440 mm (57 in)
Cut height20-100 mm (1-4 in)
John Deere 2690M: 42″ front-mount blade with manual-lift and manual-angle
Width1,060 mm (42 in)
Height380 mm (15 in)
Lift120 mm (5 in)
Weight28 kg (62 lbs)
John Deere 2460M: 38″ front-mount, single-stage snowblower with manual-lift
Width960 mm (38 in)
