John Deere 214

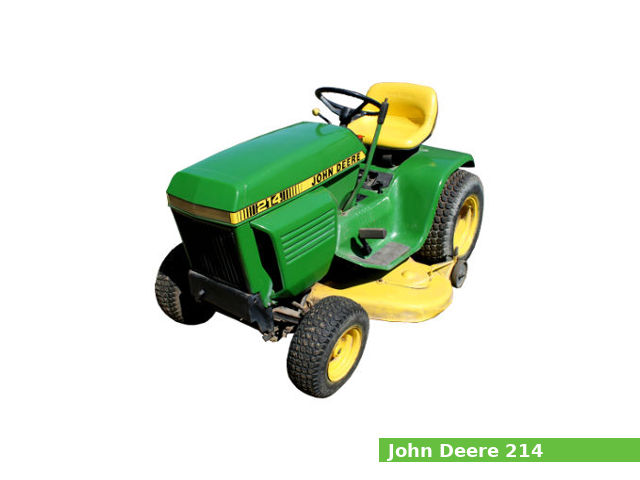

John Deere 214The John Deere 214 is a garden tractor model from the 200 series, manufactured from 1975 to 1987 by John Deere in Horicon, Wisconsin, USA. It was available in a two-wheel drive (2WD) version.

The John Deere 214 is equipped with a 512 cc (31.2 cu·in) single-cylinder gasoline engine with 88.9 mm (3.5 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke, and a gear type transmission with 4 forward and 1 reverse gear.

The John Deere 214 garden tractor features:

  • The Kohler K321AQS gasoline engine which produces 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Band brakes
  • Open operator station
  • Independent middle PTO with manual clutch

General specifications

General Specifications
Model John Deere 214
Tractor type Garden tractor
Production years 1975-1987
Factory Horicon, Wisconsin, USA
Dimensions and weight
Length 1,710 mm (67.3 in)
Width 1,050 mm (41.3 in)
Height 1,060 mm (41.7 in)
Wheel base 1,160 mm (45.7 in)
Weight 300 kg (661 lbs)
Fuel capacity
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)

Engine

Engine Specifications
Engine model Kohler K321AS
Engine type 4-stroke, L-head (side valve), single-cylinder
Displacement 512 cm3, (31.2 cu·in)
Bore and stroke 88.9 mm X 82.6 mm (3.50 in X 3.25 in)
Compression ratio 6.0:1
Max. horsepower 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm
Cooling system Forced air
Lubricating system Splash type
Fuel system Carburetor
Starting system Electirc starter
Compression pressure
Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance: 0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance: 0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system: Splash type
Oil type: API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Ignition system
Spark plug: Champion RH10
Spark plug gap: 0.65 mm (0.0256 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes Band
Transmission
Transmission manufacturer or model Peerless 2300
Transmission type Gear type
Gears 4 forward and 1 reverse
Speed Forward: 11.3 kmh (7 mph)
Reverse: 6.0 kmh (3.7 mph)
Transmission oil capacity 1.7 L (0.4 US. gal, 0.4 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×10.50-12

PTO (Power take-off shaft)

PTO
Rear PTO type Independent with manual clutch
Rear PTO speed

Electrical system

Electrical system
Ground Negative
Charging system Alternator
Charging amps 15A
Battery 12V

Serial numbers

John Deere 214 serial numbers
1975 30001
1976 55001
1977 70001
1978 80001
1979 95001
1980 120001
1981 155001
1982 190001
1983 222001
1984 285001
1985 315001
1986 360001
1987 420001

Attachments

John Deere 39: 38″ mid-mount mower deck with 2-blade and mechanical lift
Cutting width 960 mm (38 in)
Total width 1,250 mm (49.25 in)
Cut height 30-80 mm (1.5-3.5 in)
Weight 38 kg (85 lbs)
John Deere 47 H047: 46″ mid-mount mower deck with 3-blade and mechanical lift
Cutting width 1,160 mm (46 in)
Overall width 1,440 mm (57 in)
Cut height 30-80 mm (1.5-3.5 in)
Weight 51 kg (113 lb)
John Deere 46 M00673X: 46″ mid-mount mower deck with 3-blade and mechanical lift
Cutting width 1,160 mm (46 in)
Overall width 1,440 mm (57 in)
Cut height 30-80 mm (1.5-3.5 in)
Weight 51 kg (113 lb)
