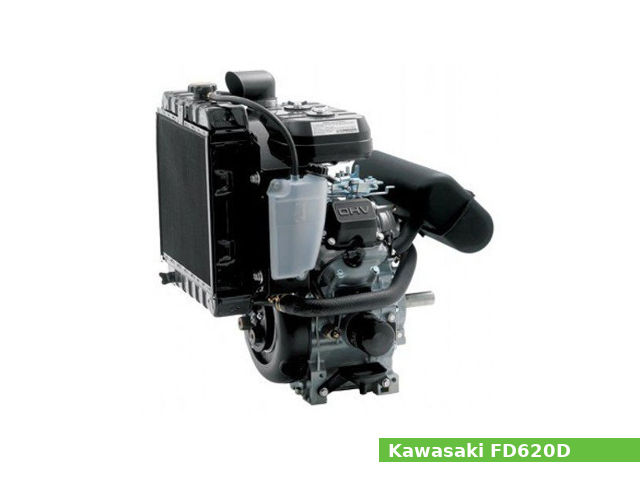

Kawasaki FD620DThe Kawasaki FD620D is a 617 cc, (37.65 cu·in) natural aspirated V-twin 90° four-stroke liquid-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Kawasaki for general-purpose applications.

A 76.0 mm (2.99 in) cylinder bore and 68.0 mm (2.68 in) piston stroke give the FD620D engine a total of 617 cc of displacement. The compression ratio rating is 9.0:1.

The Kawasaki FD620D engine produced 19.0 PS (14.0 kW; 18.8 HP) at 3,600 rpm of maximum output power and 44.6 N·m (4.5 kg·m, 32.9 ft·lb) at 2,200 rpm of peak torque.

The Kawasaki FD620D features:

  • OHV design
  • Transistorized ignition system
  • Down draft, twin-barrel carburetor
  • Centrifugal governor
  • Pressurised lubrication system
  • Liquid-cooled cooling system
  • Electric starter (shift type)

General information

Engine Specifications
Engine modelFD620D
Engine type4-stroke, V-twin 90°
Displacement617 cm3, (37.65 cu·in)
Max. horsepower19.0 PS (14.0 kW; 18.8 HP) at 3,600 rpm
Max. torque44.6 N·m (4.5 kg·m, 32.9 ft·lb) at 2,200 rpm
Cooling systemLiquid-cooled
Air cleanerDual stage element (foam and paper)
Lubricating systemPressurised
Ignition systemTransistorized ignition
Fuel systemDown draft, twin barrel carburetor
Fuel tank capacity20.0 L (5.28 US. gal. 4.4 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemElectric starter (shift type)
GovernorAll speed mechanical governor
Charging system12V 20/30A with regulator
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)555 x 450 x 624 mm (21.9 x 17.7 x 24.6 in)
Dry weight41.5 kg (91.5 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:9.0:1
Cylinder bore:76.0 mm (2.99 in)
Piston stroke:68.0 mm (2.68 in)
Cylinder internal diameter (standard):76.067 mm (2.9948 in)
Piston skirt outer diameter (standard):75.875 mm (2.9872 in)
Number of piston rings (compression / oil):2/1
Connecting rod small end diameter (standard):17.051 mm (0.6713 in)
Piston pin diameter:16.975 mm (0.6683 in)
Side clearance (Top):0.150 mm (0.0059 in)
Side clearance (Second):0.120 mm (0.0047 in)
Ring end gap (Top):1.200 mm (0.0472 in)
Ring end gap (Second):1.200 mm (0.0472 in)
Ring width (Top):1.120 mm (0.0441 in)
Ring width (Second):1.120 mm (0.0441 in)
Ring width (Oil):1.500 mm (0.0591 in)
Cylinder head
Valve arrangement:OHV (overhead valves)
Valves:2 (4 valves in total)
Valve steam diameter (INTAKE):5.945 mm (0.2341 in)
Valve steam diameter (EXHAUST):5.925 mm (0.2333 in)
Valve spring free length (INTAKE):29.70 mm (1.1693 in)
Valve spring free length (EXHAUST):29.70 mm (1.1693 in)
Cam lobe height (INTAKE):25.21 mm (0.9930 in)
Cam lobe height (EXHAUST):25.46 mm (1.0020 in)
Camshaft journal diameter: PTO side: 15.907 mm (0.6263 in)
Flywheel side: 15.917 mm (0.6267 in)

Tightening torque specs

Tightening torque specs
Cylinder head21 Nm; 2.1 kg·m; 15.5 ft·lb
Connecting rod21 Nm; 2.1 kg·m; 15.5 ft·lb
Flywheel110.0 Nm; 11.22 kg·m; 81.18 ft·lb
Crankcase cover21 Nm; 2.1 kg·m; 15.5 ft·lb
Intake manifold8 Nm; 8.0 kg·m; 6 ft·lb
Oil drain plug23.0 Nm; 2.35 kg·m; 17.0 ft·lb
Valve clearance lock nut8.8 Nm; 0.9 kg·m; 6.5 ft·lb

Service Data

Engine
Maximum speed:1500±100 rpm
Cylinder compression:12.0 kg/cm2 (170 psi) at 500 rpm
Valve clearance
Intake valve clearance (COLD):0.25 mm (0.0098 in)
Exhaust valve clearance (COLD):0.25 mm (0.0098 in)
Oil system
Lubrication system:Pressurised
Oil type:SG, or SH
Recommended oil:SAE 10W-40, 10W-30, 5W-20
Oil capacity: W/o filter changed: 1.5 L (1.6 US. qt, 1.3 Imp. qt.)
With filter changed: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Oil pressure (min):2.8 kg/cm2 (40 psi)
Oil filter:Cartridge type full flow
Fuel system
Type:Down draft, twin-barrel carburetor with fixed main jet
Model:TEIKEI/FD22K-1A
Main bore diameter:26.0 mm (1.20 in)
Venturi diameter:22.0 mm (0.87 in)
Main jet:#112
Pilot jet:#58
Main air jet:#1.8
Pilot air jet:#0.9
Pilot screw:1-3/4 turns out
Float level:19.0-21.0 mm (0.7480-0.8260 in)
Fuel pump:Electro-magnetic pump (in-line type)
Fuel filter:Replaceable paper element
Ignition system
Type:Transistorized ignition
Spark plug:NGK BMR4A
Spark plug gap:0.6-0.7 mm (0.0236-0.0276 in)
Cooling system
TypePressurized forced circulation type
Coolant capacity2.7 liters (0.7 US gal, 0.6 Imp. gal)
Thermostat
Valve opening temperature63-66° C (145-150° F)
Valve full openning lift7.0 mm (0.28 in) at 80° C (176° F)
Thermoswitch
Detect temperature110° ± 2° C (226° ± 36° C)
Starter motor
Brush length10 mm (0.40 in), limit: 6.0 mm (0.24 in)
