Kubota T1600 lawn tractor specs and service data

The Kubota T1600 is a lawn tractor model from the T series, manufactured from 1990 to 1996 by Kubota. It was available in two-wheel drive (2WD) version.

The Kubota T1600 is equipped with a 497 cc (30.3 cu·in) two-cylinder diesel engine with 67.0 mm (2.64 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke, and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Kubota T1600 lawn tractor features:

The Kubota Z482 diesel engine which produces 13.7 PS (10.1 kW; 13.5 HP) at 3,200 rpm of horsepower.
Manual steering
Internal expanding type brakes
Open operator station
Independent PTO with mechanical clutch

General specifications

General Specifications
Model	Kubota T1600
Tractor type	Lawn tractor
Production years	1990-1996
Factory	–
Dimensions and weight
Length	1,720 mm (67.7 in)
Width	1,090 mm (42.9 in)
Height	1,430 mm (56.3 in)
Wheelbase	1,190 mm (46.9 in)
Weight	300 kg (661 lbs)
Fuel capacity
Fuel tank capacity	9.8 liters (2.6 US gal.; 2.2 Imp. gal)

Engine

Engine Specifications
Engine model	Kubota Z482 (See also: Kubota Z482-D25)
Engine type	4-stroke, OHV, two-cylinders
Displacement	497 cm³, (30.3 cu·in)
Max. horsepower	13.7 PS (10.1 KW; 13.5 HP) at 3,200 rpm
Max. torque	29.7 Nm (3.03 kg·m; 21.92 ft·lb) at 2,600 rpm
Cooling system	Liquid-cooled with pressurized radiator
Lubricating system	Forced lubrication by trochoid pump
Fuel system	Bosch MD type mini pump
Fuel used	Diesel fuel No.2-D
Starting system	Electric starter (12V, 0.8 kW)
PTO shaft rotation	Counterclockwise (from PTO shaft side)
Valve clearance
Intake valve clearance:	0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance:	0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system:	Forced lubrication by trochoid pump
Oil type:	API CC or CD
Recommended oil:	SAE 30, 10W-30
Oil capacity:	2.5 liters (2.6 US. qt, 2.21 Imp. qt.)
Oil filter type:	Full flow paper filter (cartridge)
Cooling system
Type	Liquid-cooled with pressurized radiator
Coolant capacity	2.1 liters (2.2 US.qts, 1.85 Imp. qts)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual
Brakes	Internal expanding type
Transmission
Transmission manufacturer or model	–
Transmission type	Shaft-driven hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 9.0 kmh (5.6 mph) Reverse: 5.0 kmh (3.1 mph)

Tires

Tires
Front tires	Lawn/turf: 15×6.00-6
Rear tires	Lawn/turf: 20×10.00-8

PTO (Power take-off shaft)

PTO
PTO type	Independent with mechanical clutch
PTO speed	–

Electrical system

Electrical system
Ground	Negative
Charging system	Generator
Charging amps	150W
Starting motor	12V, 0.8kW
Battery	12V, 28AH

Attachments

Kubota RC44LT: 44″ mid-mount mower deck with three-blades
Cutting width	1,118 mm (44.0 in)
Cutting height	20-100 mm (1.0-4.0 in)
Cutting adjustment	Gauge wheel
Number of blades	3
Kubota T2748: 48″ front-mount snow blade
Snow blower type	Front-mount
Width	1,210 mm (48.0 in)
Kubota TG2742: 42″ front-mount snowblower
Snow blower type	Front-mount
Cleaning width	1,060 mm (42.0 in)
Lift system	Manual

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.

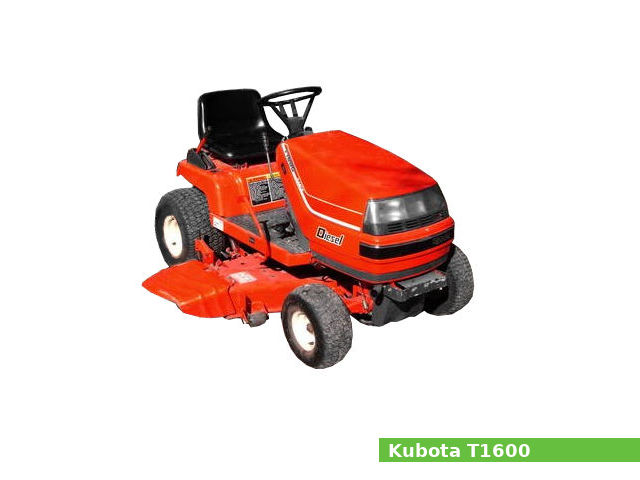

Kubota T1600
