Kubota F2400

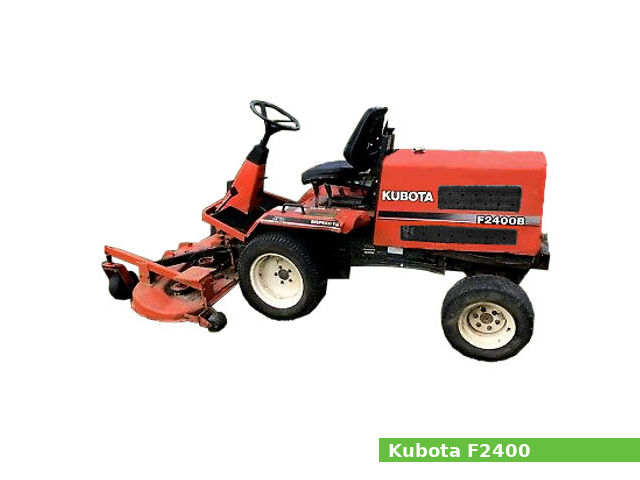

Kubota F2400The Kubota F2400 is a front-mount mower model from the F series, manufactured from 1988 to 1997 by Kubota. It was available in four-wheel drive (4WD) version.

The Kubota F2400 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Kubota F2400 front-mount mowerfeatures:

  • The Kubota D1105 diesel engine which produces 24.3 PS (17.9 kW; 24.0 HP) of horsepower.
  • Power steering
  • Open operator station with two-post ROPS
  • Independent front PTO

General specifications

General Specifications
Model Kubota F2400
Tractor type Front-mount mower
Production years 1988-1997
Factory
Dimensions and weight
Length 2,180 mm (85.8 in)
Width 1,140 mm (44.9 in)
Height 1,360 mm (53.5 in)
Wheel base 1,230 mm (48.4 in)
Weight
Fuel capacity
Fuel tank capacity 34.0 liters (9 US gal.; 7.5 Imp. gal)

Engine

Engine Specifications
Engine model Kubota D1105
Engine type 4-stroke, SOHC, three-cylinders
Displacement 1.1 L, 1,123 cm3, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Max. horsepower 24.3 PS (17.9 kW; 24.0 HP)
Cooling system Liquid-cooled
Fuel used Diesel fuel
Starting system Electric starting with 12V starter
Starting support device Glow plug in combustion chamber
Governor All speed mechanical governor
Charging system Alternator 12V
PTO shaft rotation Counterclockwise
Valve clearance
Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system: Forced lubrication by trochoid pump
Oil type: CF or higher
Recommended oil: SAE 10W-30, 10W-40
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter: Full flow paper filter (Cartridge type)
Oil pressure indicating: Electrical type switch
Oil and oil filter change interval: Every 200 hours
Fuel system
Fuel injection pump: Bosch MD type mini fuel injection pump
Injection nozzle: Mini Nozzle (DNOPD)
Firing order: 1-2-3
Injection pressure: 13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes
Transmission
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite forward and reverse

Tires

Tires
Front tires
Rear tires

PTO (Power take-off shaft)

PTO
Front PTO type Independent
Front PTO speed

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps
Battery 12V

Attachments

Kubota 60″ mid-mount mower with 3-blade
Cutting width 1,520 mm (60.0 in)
Kubota 72″ mid-mount mower with 3-blade
Cutting width 1,820 mm (72.0 in)
ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.
