Kubota F2560

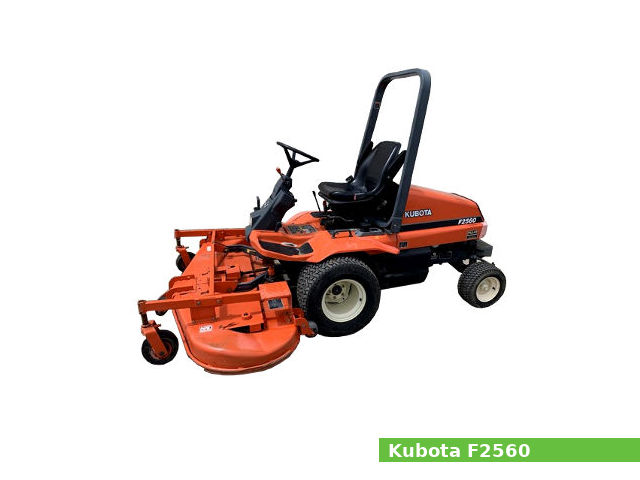

Kubota F2560The Kubota F2560 is a front-mount mower model from the F60 series, manufactured from 1997 to 2005 by Kubota. It was available in two-wheel drive (2WD) or four-wheel drive (4WD) versions.

The Kubota F2560 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine with 79.0 mm (3.11 in) of the cylinder bore and 79.0 mm (3.11 in) of the piston stroke, and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota F2560 front-mount mower features:

  • The Kubota D1105 diesel engine which produces 25.3 PS (18.6 kW; 24.9 HP) at 2,700 rpm of horsepower
  • Power steering
  • Wet disc type brakes
  • Open operator station with two-post ROPS
  • Independent front PTO with hydraulic clutch

General specifications

General Specifications
Model Kubota F2560
Tractor type Front-mount mower
Production years 1997-2005
Factory
Dimensions and weight
Length 2,330 mm (91.7 in)
Width 1,140 mm (44.9 in)
Height 1,910 mm (75.2 in)
Wheel base 1,300 mm (51.2 in)
Weight 585 kg (1,290 lbs)
Fuel capacity
Fuel tank capacity 39.7 liters (10.5 US gal.; 8.7 Imp. gal)

Engine

Engine Specifications
Engine model Kubota D1105
Engine type 4-stroke, SOHC, three-cylinders
Displacement 1.1 L, 1,123 cm3, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Max. horsepower 25.3 PS (18.6 kW; 24.9 HP) at 2,700 rpm
Cooling system Liquid-cooled
Fuel used Diesel fuel
Starting system Electric starting with 12V starter
Starting support device Glow plug in combustion chamber
Governor All speed mechanical governor
Charging system Alternator 12V
PTO shaft rotation Counterclockwise
Valve clearance
Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system: Forced lubrication by trochoid pump
Oil type: CF or higher
Recommended oil: SAE 10W-30, 10W-40
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter: Full flow paper filter (Cartridge type)
Oil pressure indicating: Electrical type switch
Oil and oil filter change interval: Every 200 hours
Fuel system
Fuel injection pump: Bosch MD type mini fuel injection pump
Injection nozzle: Mini Nozzle (DNOPD)
Firing order: 1-2-3
Injection pressure: 13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc type
Transmission
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 17.0 kmh (10.6 mph)
Reverse: 9.0 kmh (5.6 mph)

Tires

Tires
Front tires Lawn/turf: 23×10.50-12
Rear tires Lawn/turf: 8×7.00-8

PTO (Power take-off shaft)

PTO
Front PTO type Independent with hydraulic clutch
Front PTO speed

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps
Battery 12V, 70Ah

Attachments

Kubota 60″ mid-mount mower with 3-blade
Cutting width 1,520 mm (60.0 in)
Overall width 1,840 mm (72.5 in)
Cut height 30-100 mm (1.5 to 4 in)
Cut positions 8
Kubota 72″ mid-mount mower with 3-blade
Cutting width 1,820 mm (72.0 in)
Overall width 2,240 mm (88.5 in)
Cut height 30-100 mm (1.5 to 4 in)
Cut positions 8
