Kubota Z1300

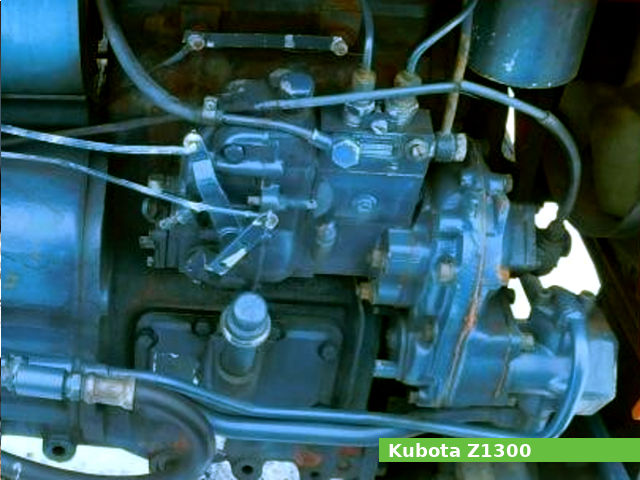

Kubota Z1300The Kubota Z1300 is an 1.3 L (1,272 cc, 77.6 cu·in) natural aspirated two-cylinders four-stroke liquid-cooled internal combustion vertical diesel engine, manufactured by Kubota Corporation for general-purpose applications.

The cylinder bore and piston stroke are 90.0 mm (3.54 in) and 100.0 mm (3.94 in), respectively. Compression ratio rating is 21.5:1.

The Kubota Z1300 diesel engine produced 26.4 PS (19.4 kW; 26.0 HP) at 2,600 rpm of horsepower and 79.7 N·m (8.1 kg·m, 58.7 ft·lb) at 1,600 rpm of torque.

The Kubota Z1300 features:

  • Fuel injection pump
  • Centrifugal ball mechanical governor
  • Forced lubrication by pump
  • Liquid cooling system
  • Electric starter 12V, 2.0 kW
  • Charging alternator

General information

Engine Specifications
Engine modelZ1300
Engine type4-stroke, vertical, two-cylinders
Displacement1,272 cm3, (77.6 cu·in)
Max. horsepower26.4 PS (19.4 kW; 26.0 HP) at 2,600 rpm
Max. torque79.7 N·m (8.1 kg·m, 58.7 ft·lb) at 1,600 rpm
Cooling systemLiquid-cooled
Lubricating systemForced lubrication by pump
Combustion chamber
Fuel systemFuel injection pump
Injection typeIndirect injection
Fuel usedDiesel fuel No.2-D
Starting systemElectric starter 12V, 2.0 kW
GovernorCentrifugal ball mechanical governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)400 x 455 x 554 mm (15.7 x 17.9 x 21.8 in)
Dry weight115.0 kg (253.5 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:21.5:1
Cylinder bore:90.0 mm (3.54 in)
Piston stroke:100.0 mm (3.94 in)
Cylinder internal diameter (standard):90.000 mm (3.5433 in)
Piston skirt outer diameter (standard):89.900-89.920 mm (3.5394-3.5402 in)
Number of piston rings (compression / oil):2/1
Piston pin diameter:28.100 mm (1.1063 in)
Side clearance (Second):0.065-0.090 mm (0.0026-0.0035 in)
Side clearance (Oil):0.020-0.060 mm (0.0008-0.0024 in)
Ring end gap (Top):0.300-0.500 mm (0.0118-0.0197 in)
Ring end gap (Second):0.300-0.500 mm (0.0118-0.0197 in)
Number of main bearings:3
Crankshaft main journal diameter:62.930-62.940 mm (2.4776-2.4779 in)
Crankpin journal diameter:58.760-58.800 mm (2.3134-2.315 in)
Cylinder head
Valves:2, (4 valves in total)
Valve seat width (INTAKE):1.500 mm (0.060 in)
Valve seat width (EXHAUST):1.500 mm (0.060 in)
Value seat angle (INTAKE):45°
Value seat angle (EXHAUST):45°
Valveface angle (INTAKE):45°
Valveface angle (EXHAUST):45°
Valve steam diameter (INTAKE):8.960-8.975 mm (0.3528-0.3533 in)
Valve steam diameter (EXHAUST):8.960-8.975 mm (0.3528-0.3533 in)
Valve spring free length (INTAKE):47.5 mm (1.8701 in)
Valve spring free length (EXHAUST):47.5 mm (1.8701 in)
Camshaft journal diameter (front bearing):50.000-50.030 mm (1.9685-1.9697 in)
Camshaft journal diameter (rear bearing):32.000-32.030 mm (1.2598-1.261 in)

Tightening torque

Tightening torque specs
Cylinder head screw:170.0-184.0 Nm (17.3-18.8 kgf·m; 125.5-135.8 lb·ft)
Connecting rod screw:58.0-64.0 Nm (5.9-6.5 kgf·m; 42.8-47.2 lb·ft)
Flywheel screw:110.0-115.0 Nm (11.2-11.7 kgf·m; 81.2-84.9 lb·ft)
Idle gear shaft screws:32.4-37.3 Nm (3.3-3.8 kgf·m; 23.9-27.5 lb·ft)
Bearing case cover mounting screw:49.0-68.4 Nm (5.0-7.0 kgf·m; 36.2-50.5 lb·ft)

Service Data

Engine
Maximum speed:2,850 rpm
Idle speed:600-650 rpm
Valve tappet gap
Intake valve:0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve:0.20-0.25 mm (0.0079-0.0098 in)
Oil system
Lubrication system:Forced lubrication
Oil type:DS or DM
Recommended oil:SAE 80
Oil capacity:4.8 L (5.1 US. qt, 4.2 Imp. qt.)
Fuel system
Injection timing:20° B.T.D.C.
Fuel injection pressure11.73 MPa (120 kgf/cm2, 1700 psi)
Cooling system
Type:Pressurized radiator, forced circulation with water pump
Coolant capacity:6.9 liters (7.3 US.qts, 6.1 Imp. qts)
Electrical system
Battery:12V, 110AH or equivalent

Applications

Manufacturer or BrandModels
Tractors
KubotaL260
