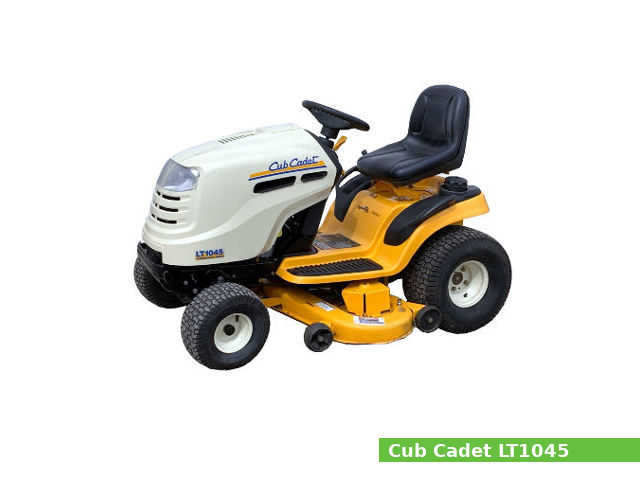

Cub Cadet LT1045 lawn tractor specs and service data

The Cub Cadet LT1045 is a lawn tractor model from the LT1000 series, manufactured from 2005 to 2008 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version.

The Cub Cadet LT1045 is equipped with a 0.6 L (36.4 cu·in) single-cylinder gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet LT1045 lawn tractor features:

The Kohler Courage SV600 gasoline engine which produces 20.3 PS (14.9 kW; 20.0 HP) of horsepower.
Manual steering
Dry disc brakes
Open operator station
Independent front PTO with electric clutch

General specifications

General Specifications
Model	Cub Cadet LT1045
Tractor type	Lawn tractor
Production years	2005-2008
Factory	–
Dimensions and weight
Length	1,730 mm (68.1 in)
Width	1,245 mm (49 in)
Height	1,090 mm (42.9 in)
Wheel base	1,170 mm (46.1 in)
Ground clearance	110 mm (4.3 in)
Weight	226 kg (498 lbs)
Fuel capacity
Fuel tank capacity	13.2 liters (3.5 US gal.; 2.9 Imp. gal)

Engine

Engine
Engine model	Kohler SV600
Engine type	Four-stroke, air-cooled
Cylinders	1
Fuel type	Gasoline
Displacement	597 cm³, (36.4 cu·in)
Bore and stroke	94.0 mm X 86.0 mm (3.70 in X 3.39 in)
Compression ratio	8.5:1
Horsepower	20.3 PS (14.9 KW; 20.0 HP) at 3,600 rpm
Torque	50.0 Nm (5.1 kg·m; 36.9 ft·lb)
Starter	Electric
Oil system
Lubrication system:	Full pressurized
Oil type:	API SJ or higher
Recommended oil:	SAE 10W-30
Oil capacity (with filter):	1.5 L (1.6 US.qts, 1.32 Imp. qts)
Ignition system
Spark plug:	Champion RC12YC
Spark plug gap:	0.76 mm (0.0299 in)
Spark plug torque:	27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance:	0.127 mm (0.005 in)
Exhaust valve clearance:	0.178 mm (0.007 in)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual
Brakes	Dry disc
Transmission
Transmission manufacturer or model	Hydro-Gear 0510
Transmission type	Hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 kmh (2.3 mph)

Tires

Tires
Front tires	Lawn/turf: 15x6x6
Rear tires	Lawn/turf: 20x10x8

PTO (Power take-off shaft)

PTO
Front PTO type	Independent with electric clutch
Front PTO speed	–

Electrical system

Electrical system
Ground	Negative
Charging system	Alternator
Charging amps	15A
Battery	12V CCA: 190A

Attachments

Cub Cadet 46″ mid-mount mower deck with 3-blade and manual lift
Cutting width	1,160 mm (46 in)
Cub Cadet 190-674: 46″ front-mount blade and manual lift
Width	1,160 mm (46 in)
Cub Cadet 190-673: 42″ front-mount two-stage snowblower with manual lift
Width	1,060 mm (42 in)
