Kubota ZD1211

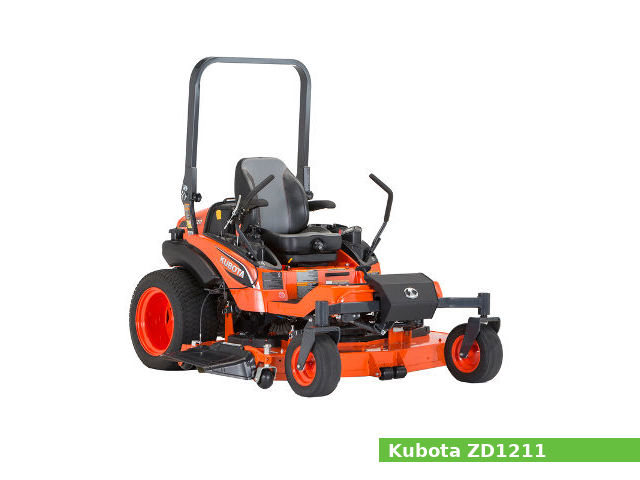

Kubota ZD1211The Kubota ZD1211 is a zero-turn mower model from the ZD1200 series, manufactured since 2016 by Kubota. It was available in two-wheel drive (2WD) version.

The Kubota ZD1211 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Kubota ZD1211 zero-turn mower features:

  • The Kubota D1105 diesel engine which produces 25.2 PS (18.5 kW; 24.8 HP) at 3,000 rpm of horsepower
  • Power steering
  • Wet disc type brakes
  • Open operator station with two-post ROPS
  • Independent front PTO with hydraulic wet disc clutch

General specifications

General Specifications
Model Kubota ZD1211
Tractor type Zero-turn mower
Production years 2016-
Factory
Dimensions and weight
Length 2,260 mm (89 in)
Width 150 mm (5.9 in)
Height 1,990 mm (78.3 in)
Wheel base 1,440 mm (56.7 in)
Weight 765 kg (1,687 lbs)
Fuel capacity
Fuel tank capacity 49.0 liters (12.9 US gal.; 10.8 Imp. gal)

Engine

Engine Specifications
Engine model Kubota D1105
Engine type 4-stroke, SOHC, three-cylinders
Displacement 1.1 L, 1,123 cm3, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Max. horsepower 25.2 PS (18.5 kW; 24.8 HP) at 3,000 rpm
Cooling system Liquid-cooled
Coolant capacity: 3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Fuel used Diesel fuel
Starting system Electric starting with 12V starter
Starting support device Glow plug in combustion chamber
Governor All speed mechanical governor
Charging system Alternator 12V
PTO shaft rotation Counterclockwise
Valve clearance
Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system: Forced lubrication by trochoid pump
Oil type: CF or higher
Recommended oil: SAE 10W-30, 10W-40
Oil capacity: 3.9 L (4.1 US. qt, 3.4 Imp. qt.)
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter: Full flow paper filter (Cartridge type)
Oil pressure indicating: Electrical type switch
Oil and oil filter change interval: Every 200 hours
Fuel system
Fuel injection pump: Bosch MD type mini fuel injection pump
Injection nozzle: Mini Nozzle (DNOPD)
Firing order: 1-2-3
Injection pressure: 13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Power
Brakes Wet disc type
Transmission
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 17.1 kmh (10.6 mph)
Reverse: 8.5 kmh (5.3 mph)
Transmission oil capacity 12.1 L (3.2 US. gal, 2.7 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 15×6.0-6
Rear tires Lawn/turf: 26×12.0-16

PTO (Power take-off shaft)

PTO
Middle PTO type Independent with hydraulic wet disc clutch
Middle PTO speed

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps
Battery 12V, CCA: 430A

Attachments

Kubota RCK60P-1200Z: 60″ mid-mount mower with 3-blade and hydraulic lift
Cutting width 1,520 mm (60.0 in)
Overall width 1,870 mm (73.8 in)
Cut height 20-120 mm (1 to 5 in)
Kubota RCK60RP-1200Z: 60″ mid-mount mower with 3-blade and hydraulic lift
Cutting width 1,520 mm (60.0 in)
Overall width 1,600 mm (63.0 in)
Cut height 20-120 mm (1 to 5 in)
