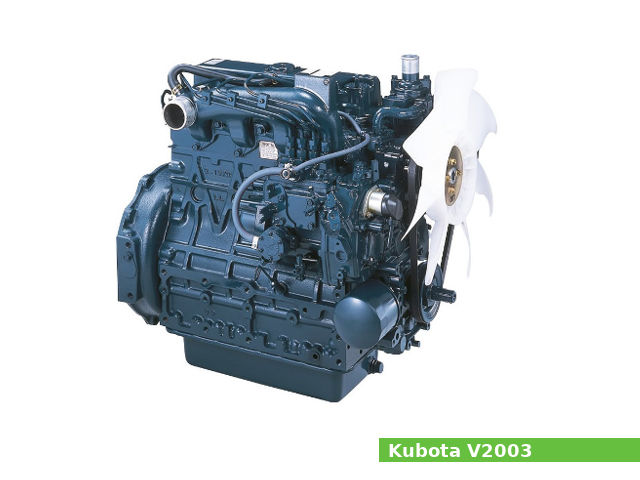

The Kubota V2003 is a 2.0 L (1,999 cc, 121.9 cu·in) natural aspirated four-cylinders four-stroke liquid-cooled internal combustion vertical diesel engine, manufactured by Kubota for general-purpose applications.
An 83.0 mm (3.27 in) cylinder bore and an 92.4 mm (3.64 in) piston stroke give the V2003 engine a total of 1,999 cc of displacement. The compression ratio rating is 23.0:1.
The V2003-M-E engine produced 41.3 PS (30.4 KW; 40.8 HP) at 2,800 rpm of the net (intermittent) horsepower and 35.9 PS (26.4 KW; 35.4 HP) at 2,800 rpm of net (continuous) horsepower.
The Kubota V2003-M-E features:
- Spherical type combustion chamber (E-TVCS)
- Bosch mini type fuel injection pump
- Centrifugal mechanical governor
- Forced lubrication by trochoid pump
- Liquid cooling system forced circulation with water pump
- Electric starter (12V, 1.4 kW)
- Charing generator (12V, 480 W)
General information
| Engine Specifications | |
| Engine model | V2003-M-E |
| Engine type | 4-stroke, vertical, four-cylinders |
| Displacement | 2.0 L, 1,999 cm3, (121.9 cu·in) |
| Max. horsepower | Net (intermittent): 41.3 PS (30.4 KW; 40.8 HP) at 2,800 rpm Net (continuous): 35.9 PS (26.4 KW; 35.4 HP) at 2,800 rpm |
| Max. torque | – |
| Cooling system | Liquid-cooled |
| Lubricating system | Forced lubrication by pump |
| Combustion chamber | Spherical type |
| Fuel injection pump | Bosch mini type |
| Injection nozzle | – |
| Fuel used | Diesel fuel No.2-D |
| Starting system | Electric starter (12V, 1.4 kW) |
| Starting support device | Glow plug in combustion chamber |
| Governor | Centrifugal mechanical governor |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
| Dimensions (L x W X H) | 667 x 507 x 635 mm (26.3 x 20.0 x 25.0 in) |
| Dry weight | 180.0 kg (397.0 lbs) |
Cylinder Block and Head
| Cylinder block | |
| Compression ratio: | 23.0:1 |
| Cylinder bore: | 83.0 mm (3.27 in) |
| Piston stroke: | 92.4 mm (3.64 in) |
| Cylinder internal diameter (standard): | 83.000-83.022 mm (3.2677-3.2686 in) |
| Number of piston rings (compression / oil): | 2/1 |
| Connecting rod small end diameter (standard): | 25.025-25.040 mm (0.9852-0.9858 in) |
| Piston pin diameter: | 25.002-25.011 mm (0.9843-0.9847 in) |
| Side clearance (Second): | 0.093-0.120 mm (0.0037-0.0047 in) |
| Side clearance (Oil): | 0.020-0.060 mm (0.0008-0.0023 in) |
| Ring end gap (Top): | 0.200-0.350 mm (0.0080-0.0138 in) |
| Ring end gap (Second): | 0.300-0.450 mm (0.0118-0.0177 in) |
| Ring end gap (Oil): | 0.250-0.450 mm (0.0099-0.0177 in) |
| Number of main bearings: | 5 |
| Crankshaft main journal diameter: | S/n below 3R9999: 51.921-51.940 mm (2.0441-2.0449 in) S/n above 3S0001: 59.921-59.940 mm (2.3590-2.3598 in) |
| Crankpin journal diameter: | 43.959-43 975 mm (1.7307-1.7313 in) |
| Cylinder head | |
| Valves: | 2 (8 valves in total) |
| Valve seat width (INTAKE): | 2.120 mm (0.0835 in) |
| Valve seat width (EXHAUST): | 2.120 mm (0.0835 in) |
| Value seat angle (INTAKE): | 60° |
| Value seat angle (EXHAUST): | 45° |
| Value face angle (INTAKE): | 60° |
| Value face angle (EXHAUST): | 45° |
| Valve steam diameter (INTAKE): | 7.960-7.975 mm (0.3134-0.3140 in) |
| Valve steam diameter (EXHAUST): | 7.960-7.975 mm (0.3134-0.3140 in) |
| Valve spring free length (INTAKE): | 41.7-42.2 mm (1.6417-1.6614 in) |
| Valve spring free length (EXHAUST): | 41.7-42.2 mm (1.6417-1.6614 in) |
| Camshaft cam height (INTAKE): | 33.900 mm (1.3346 in) |
| Camshaft cam height (EXHAUST): | 33.900 mm (1.3346 in) |
| Camshaft journal diameter : | 39.934-39.950 mm (1.5722-1.5728 in) |
Tightening torque
| Tightening torque specs | |
| Rocker arm bracket nuts: | 23.5-27.5 Nm (2.4-2.8 kgf-m, 17.4-20.3 lb-ft) |
| Cylinder head: | 93.1-98.0 Nm (9.5-10.0 kgf-m, 68.7-72.3 lb-ft) |
| Nozzle holder assembly: | 49.0-68.6 Nm (5.0-7.0 kgf-m, 36.2-50.6 lb-ft) |
| Connecting rod screw: | 44.1-49.0 Nm (4.5-5.0 kgf-m, 32.5-36.2 lb-ft) |
| Flywheel: | 98.1-107.9 Nm (10.0-11.0 kgf-m, 72.3-79.6 lb-ft) |
| Main bearing case screw 1: | 46.1-50.9 Nm (4.7-5.2 kgf-m, 34.0-37.6 lb-ft) |
| Main bearing case screw 2: | 68.6-73.5 Nm (7.0-7.5 kgf-m, 50.6-54.2 lb-ft) |
Service Data
| Engine | |
| Maximum speed: | 3,000 rpm |
| Idle speed: | 700-750 rpm |
| Cylinder compression: | 36.0-41.0 kgf/cm2 (3.53-4.02 MPa, 512-583 psi) |
| Compression differential limit between cylinders: | 10% or less |
| Valve clearance | |
| Intake valve clearance: | 0.18-0.22 mm (0.0071-0.0087 in) |
| Exhaust valve clearance: | 0.18-0.22 mm (0.0071-0.0087 in) |
| Oil system | |
| Lubrication system: | Forced lubrication by trochoid pump |
| Oil type: | API CD or better |
| Oil capacity: | Oil pan depth 90.0 mm (3.54 in): 7.6 liters (2.0 US gal, 1.7 Imp. gal) Oil pan depth 124.0 mm (4.88 in): 9.5 liters (2.5 US gal, 2.1 Imp. gal) |
| Oil filter: | Full flow paper filter (cartrige type) |
| Fuel system | |
| Fuel injection pump | Bosch mini pump |
| Injection timing: | 17-19° B.T.D.C. |
| Fuel injection pressure | 13.73-14.7 MPa (140-150 kgf/cm2, 1991-2133 psi) |
| Cooling system | |
| Type: | Pressurized radiator (not included in the basic engine), forced circulation with water pump |
| Thermostat’s valve opening temperature: | 69.5-72.5°C (157.1-162.5°F) |
| Temperature at which thermostat completely opens: | 85°C (185°F) |
| Coolant capacity: | 8.1 liters (2.1 US gal, 1.8 Imp. gal) |
| Electrical system | |
| Battery: | 12V, 100-120 Ah or equivalent |
| Alternator brush Length (std/min): | 10.5 mm (0.4130 in) / 8.4 mm (0.3310 in) |
| Glow plug resistance: | Approx 0.9 Ω |
