Toro Wheel Horse 314-8

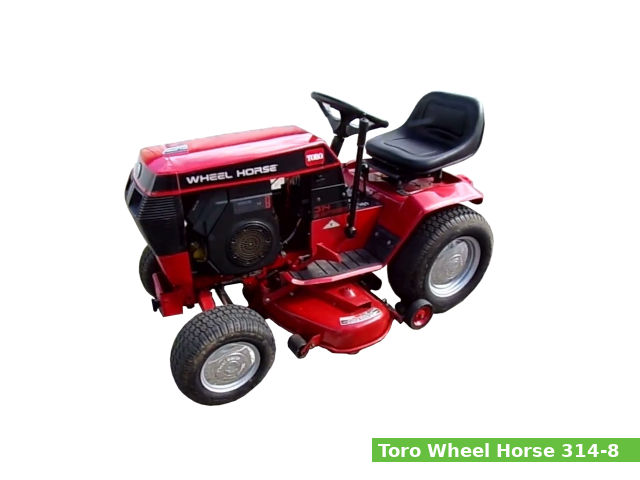

Toro Wheel Horse 314-8The Toro Wheel Horse 314-8 is a garden tractor model from the Classic 300 series, manufactured from 1993 to 2001 by Toro. It was available in two-wheel drive (2WD) version.

The Toro Wheel Horse 314-8 is equipped with one of two engines: a 512 cc (31.2 cu·in) single-cylinder gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke, or a 398 cc (24.3 cu·in) single-cylinder gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a belt-driven gear type transmission with 6 forward and 2 reverse gears.

The Toro Wheel Horse 314-8 garden tractor features:

  • The Kohler Magnum M14 gasoline engine which produces 14.3 PS (10.4 kW; 14.0 HP) at 3,600 rpm of horsepower or the Kohler Command CH14 gasoline engine with 14.3 PS (10.4 kW; 14.0 HP) at 3,600 rpm of output power
  • Manual steering
  • Band brakes
  • Open operator station
  • 8.5 liters (2.2 US gal.; 1.9 Imp. gal) fuel tank
  • Lawn/turf 16×6.50-8 front tires and 23×9.50-12 rear tires

General specifications

General Specifications
ModelToro Wheel Horse 314-8
Tractor typeGarden tractor
Production years1993-2001
Factory
Dimensions and weight
Length1,650 mm (65 in)
Width920 mm (36.2 in)
Height,1020 mm (40.5 in)
Wheel base1,150 mm (45.3 in)
Weight283 kg (624 lbs)
Fuel capacity
Fuel tank capacity8.5 liters (2.2 US gal.; 1.9 Imp. gal)

Engine

Engine
Engine modelKohler Magnum M14
Engine type4-stroke, L-head, single-cylinder
Displacement512 cm3, (31.27 cu·in)
Compression ratio:7.0:1
Cylinder bore:88.9 mm (3.50 in)
Piston stroke:82.6 mm (3.25 in)
Max. horsepower14.3 PS (10.4 KW; 14.0 HP) at 3,600 rpm
Max. torque
Cooling systemForced air
Air cleanerHigh-density paper
Lubricating systemSplash
Ignition systemElectronic magneto ignition system
Fuel systemSide-draft carburetor with adjustable jet
Fuel tank capacity5.7 liters (1.5 US gal, 1.3 Imp. gal)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil or electric starter
GovernorCentrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Intake valve clearance:0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance:0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:Splash
Oil type:API SF or SG
Recommended oil:Summer: SAE 30 Winter: SAE 5W-20, 5W-30
Oil capacity:1.9 L (2.00 US. qt, 1.67 Imp. qt.)
Ignition system
Type:Electronic magneto ignition system
Spark plug:Champion RH10
Spark plug gap:0.65 mm (0.0256 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)
Ignition coil air gap0.30-0.40 mm (0.012-0.016 in)
Engine
Engine modelKohler Command PRO CH14S
Engine type4-stroke, OHV, single-cylinder
Displacement398 cm 3 (24.3 cu-in)
Compression ratio:8.5:1
Cylinder bore:87.0 mm (3.43 in)
Piston stroke:67.0 mm (2.64 in)
Max. horsepower14.3 PS (10.4 KW; 14.0 HP) at 3,600 rpm
Max. torque27.8 Nm (2.84 kg·m; 20.52 ft·lb) at 2,500 rpm
Cooling systemForced air
Air cleanerReplaceable, paper element
Lubricating systemFull pressure
Ignition systemDependable electronic magneto
Fuel systemCarburetor with fixed main jet (Nikki or Keihin)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemElectric starter
GovernorMechanical centrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Compression pressure
Standard:1.1 MPa (160 psi)
Compression differential limit between cylinders:15% and less
Oil system
Lubrication system:Full pressure
Oil type:API SG, SH, SJ, or higher
Recommended oil:SAE 10W-30
Oil capacity: W/o oil filter: 1.7 L (1.8 US. qt, 1.5 Imp. qt.)
With oil filter: 1.9 L (2.0 US.qts, 1.7 Imp. qts)
Fuel system
Type:Carburetor with fixed main jet (Nikki or Keihin)
Fuel pump:Pulse type
Fuel filter:In-line
Ignition system
Type:Dependable electronic magneto
Spark plug:Champion RC12YC or Platinum 3071
Spark plug gap1.02 mm (0.040 in)
Ignition coil air gap0.200-0.300 mm (0.0079-0.0118 in)

Transmission and chassis

Chassis, steering and brakes
Chassis2WD
Steering typeManual
BrakesBand
Transmission
Transmission manufacturer or modelUni-Drive
Transmission typeBelt-driven gear type
Gears6 forward and 2 reverse
Speed Forward: 8.8 kmh (5.5 mph)
Reverse: 4.2 kmh (2.6 mph)

Tires

Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×9.50-12

Electrical system

Electrical system
GroundNegative
Charging system
Charging amps
Battery12V, CCA 210A

Attachments

Toro Wheel Horse 36″ mid-mount mower deck with 3-blade, right-discharge and manual lift
Cutting width:910 mm (36 in)
Weight:46 kg (102 lbs)
Toro Wheel Horse 42″ mid-mount mower deck with 3-blade, right-discharge and manual lift
Cutting width:1,060 mm (42 in)
Weight:61 kg (135 lbs)
Toro Wheel Horse 48″ mid-mount mower deck with 3-blade, right-discharge and manual lift
Cutting width:1,210 mm (48 in)
Weight:76 kg (168 lbs)
Toro 48″ front-mount blade with manual lift and manual angle
Cutting width:1,210 mm (48 in)
Toro 42″ single-stage front-mount snow blower with manual lift
Cleaning width:1,060 mm (42 in)
Toro 42″ two-stage front-mount snow blower with manual lift
Cleaning width:1,210 mm (48 in)
