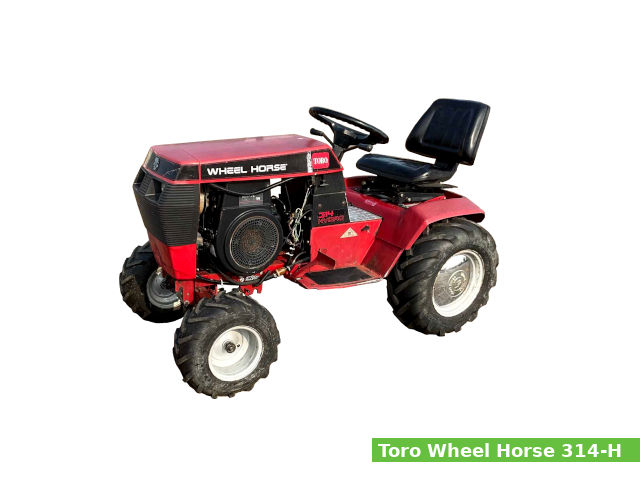

Toro Wheel Horse 314-H

Toro Wheel Horse 314-HThe Toro Wheel Horse 314-H is a garden tractor model from the Classic 300 series, manufactured from 1993 to 1997 by Toro. It was available in two-wheel drive (2WD) version.

The Toro Wheel Horse 314 Hydro is equipped with a 512 cc (31.2 cu·in) single-cylinder gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Toro Wheel Horse 314-H garden tractor features:

  • The Kohler M14S gasoline engine which produces 14.3 PS (10.4 kW; 14.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Band brakes
  • Open operator station
  • Independent middle PTO with manual clutch
  • 16.1 liters (4.3 US gal.; 3.5 Imp. gal)
  • Lawn/turf 15×6.00-6 front tires and 23×9.50-12 rear tires

General specifications

General Specifications
ModelToro Wheel Horse 314-H
Tractor typeGarden tractor
Production years1993-1997
Dimensions and weight
Length1,650 mm (65 in)
Width920 mm (36.2 in)
Height (steering wheel)1,070 mm (42.1 in)
Wheel base1,150 mm (45.3 in)
Weight282 kg (622 lbs)
Fuel capacity
Fuel tank capacity16.1 liters (4.3 US gal.; 3.5 Imp. gal)


Engine modelKohler Magnum M14S
Engine type4-stroke, L-head, single-cylinder
Displacement512 cm3, (31.27 cu·in)
Compression ratio:7.0:1
Cylinder bore:88.9 mm (3.50 in)
Piston stroke:82.6 mm (3.25 in)
Max. horsepower14.3 PS (10.4 KW; 14.0 HP) at 3,600 rpm
Max. torque
Cooling systemForced air
Air cleanerHigh-density paper
Lubricating systemSplash
Ignition systemElectronic magneto ignition system
Fuel systemSide-draft carburetor with adjustable jet
Fuel tank capacity5.7 liters (1.5 US gal, 1.3 Imp. gal)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil or electric starter
GovernorCentrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Intake valve clearance:0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance:0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:Splash
Oil type:API SF or SG
Recommended oil:Summer: SAE 30 Winter: SAE 5W-20, 5W-30
Oil capacity:1.9 L (2.00 US. qt, 1.67 Imp. qt.)
Ignition system
Type:Electronic magneto ignition system
Spark plug:Champion RH10
Spark plug gap:0.65 mm (0.0256 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)
Ignition coil air gap0.30-0.40 mm (0.012-0.016 in)

Transmission and chassis

Chassis, steering and brakes
Steering typeManual
Transmission manufacturer or modelEaton
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 9.0 kmh (5.6 mph)
Reverse: 5.5 kmh (3.4 mph)


Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 23×9.50-12

PTO (Power take-off shaft)

Middle PTO typeIndependent with manual clutch
Middle PTO speed

Electrical system

Electrical system
Charging system
Charging amps
Battery12V, CCA 210A


Toro Wheel Horse 36″ mid-mount mower deck with 3-blade, right-discharge and manual lift
Cutting width:910 mm (36 in)
Weight:46 kg (102 lbs)
Toro Wheel Horse 42″ mid-mount mower deck with 3-blade, right-discharge and manual lift
Cutting width:1,060 mm (42 in)
Weight:61 kg (135 lbs)
Toro Wheel Horse 48″ mid-mount mower deck with 3-blade, right-discharge and manual lift
Cutting width:1,210 mm (48 in)
Weight:76 kg (168 lbs)
Toro 48″ front-mount blade with manual lift and manual angle
Cutting width:1,210 mm (48 in)
Toro 42″ single-stage front-mount snow blower with manual lift
Cleaning width:1,060 mm (42 in)
Toro 42″ two-stage front-mount snow blower with manual lift
Cleaning width:1,210 mm (48 in)
Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.
