Wheel Horse D-200

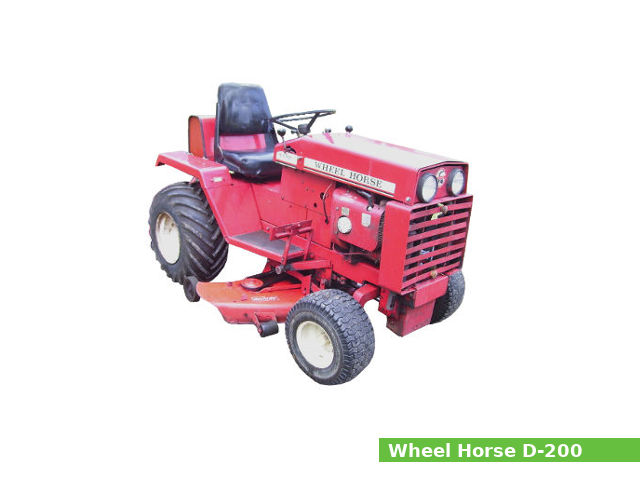

Wheel Horse D-200The Wheel Horse D-200 is a garden tractor model from the D series, manufactured from 1974 to 1981 by Wheel Horse in South Bend, Indiana, USA. It was available in two-wheel drive (2WD) version.

The Wheel Horse D-200 is equipped with a 880 cc (53.7 cu·in) two-cylinder gasoline engine with 85.7 mm (3.37 in) of the cylinder bore and 76.2 mm (3.00 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Wheel Horse D-200 garden tractor features:

  • The Kohler K532S gasoline engine which produces 20.1 PS (14.8 kW; 20.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Open operator station
  • Category 0 rear hitch (optional)

General specifications

General Specifications
Model Wheel Horse D-200
Tractor type Garden tractor
Production years 1974-1981
Factory South Bend, Indiana, USA
Dimensions and weight
Length 1,910 mm (75.2 in)
Width 1,140 mm (44.9 in)
Height 1,150 mm (45.3 in)
Wheel base 1,270 mm (50 in)
Weight 464 kg (1,023 lbs)
Fuel capacity
Fuel tank capacity 30.3 liters (8 US gal.; 6.7 Imp. gal)

Engine

Engine Specifications
Engine model Kohler K532
Engine type 4-stroke, L-head (side valve), single-cylinder
Displacement 880 cm3, (53.7 cu·in)
Bore and stroke 85.7 mm X 76.2 mm (3.37 in X 3.00 in)
Max. horsepower 20.1 PS (14.8 kW; 20.0 HP) at 3,600 rpm
Cooling system Forced air
Lubricating system Splash type
Fuel system Carburetor
Starting system Electirc starter
Valve clearance
Intake valve clearance: 0.20-0.25 mm (0.008-0.010 in)
Exhaust valve clearance: 0.43-0.48 mm (0.017-0.019 in)
Oil system
Lubrication system: Splash type
Oil type: API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity: 3.3 L (3.5 US. qt, 2.9 Imp. qt.)
Ignition system
Spark plug: Champion RH10
Spark plug gap: 0.65 mm (0.0256 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission
Transmission manufacturer or model Sundstrand 90
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.1 kmh (7.5 mph)
Reverse: 5.8 kmh (3.6 mph)
Transmission oil capacity 5.7 L (1.5 US. gal, 1.3 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 18×8.50-8
Rear tires Lawn/turf: 26×12.00-12

Rear Hitch

Three-Point Hitch
Category 0 (optional)
Control type
Lift capacity (at ends)

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps 15A
Battery 12V

Attachments

Wheel Horse 48″ mid-mount mower deck with 3-blade
Cutting width 1,210 mm (48 in)
Wheel Horse 56″ front-mount blade
Cutting width 1,420 mm (56 in)
Wheel Horse 48″ front-mount snow blower
Width 1,210 mm (48 in)
