Wheel Horse GT-14

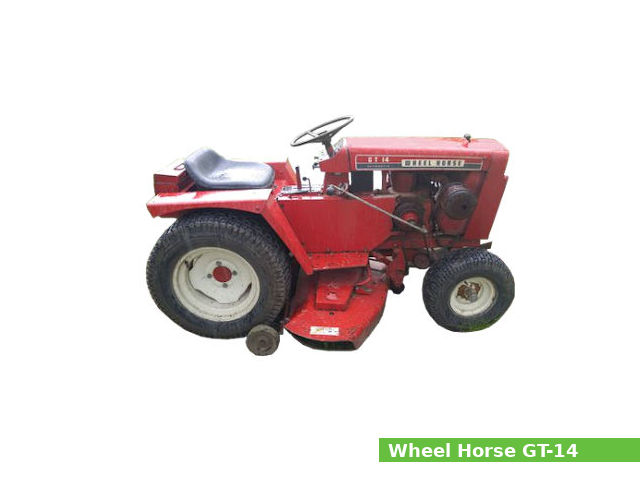

Wheel Horse GT-14The Wheel Horse GT-14 is a garden tractor model manufactured from 1969 to 1973 by Wheel Horse in South Bend, Indiana, USA. It was available in a two-wheel drive (2WD) version.

The Wheel Horse GT-14 is equipped with a 512 cc (31.2 cu·in) single-cylinder gasoline engine with 88.9 mm (3.5 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Wheel Horse GT14 garden tractor features:

  • The Kohler K321S gasoline engine which produces 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Open operator station
  • Category 0 rear hitch (optional)

General specifications

General Specifications
Model Wheel Horse GT-14
Tractor type Garden tractor
Production years 1969-1973
Factory South Bend, Indiana, USA
Dimensions and weight
Length 1,790 mm (70.5 in)
Width 950 mm (37.4 in)
Height 1,040 mm (40.9 in)
Wheel base
Weight 395 kg (871 lbs)
Fuel capacity
Fuel tank capacity 18.9 liters (5 US gal.; 4.2 Imp. gal)

Engine

Engine Specifications
Engine model Kohler K321AS
Engine type 4-stroke, L-head (side valve), single-cylinder
Displacement 512 cm3, (31.2 cu·in)
Bore and stroke 88.9 mm X 82.6 mm (3.50 in X 3.25 in)
Compression ratio 6.0:1
Max. horsepower 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm
Cooling system Forced air
Lubricating system Splash type
Fuel system Carburetor
Starting system Electirc starter
Compression pressure
Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance: 0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance: 0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system: Splash type
Oil type: API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Ignition system
Spark plug: Champion RH10
Spark plug gap: 0.65 mm (0.0256 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission
Transmission manufacturer or model Sundstrand
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.1 kmh (7.5 mph)
Reverse: 6.0 kmh (3.7 mph)

Tires

Tires
Front tires
Rear tires

Rear Hitch

Three-Point Hitch
Category 0 (optional)

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps
Battery 12V

Attachments

Wheel Horse 48″ mid-mount mower deck with 3-blade and hydraulic lift
Cutting width 1,210 mm (48 in)
Wheel Horse 54″ front-mount blade
Cutting width 1,370 mm (54 in)
Wheel Horse 37″ front-mount snowblower
Width 930 mm (37 in)
