Daedong 4A200T

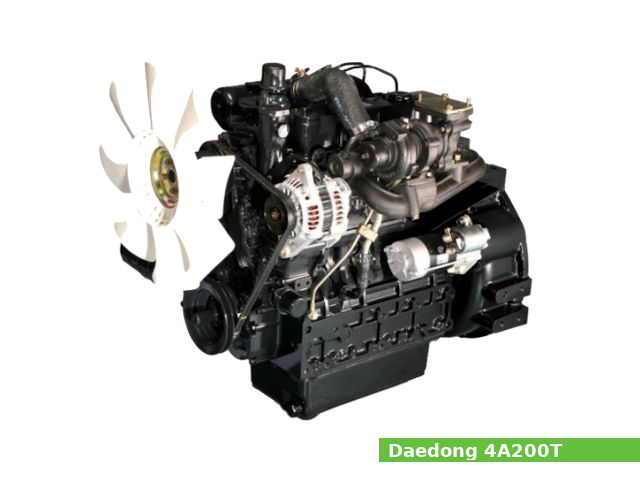

Daedong 4A200TThe Daedong 4A200T is a 2.0 L (1,999 cc, 122.0 cu·in) natural aspirated four-stroke liquid-cooled internal combustion turbocharget diesel engine with a vertical, manufactured by Daedong for general-purpose applications.

Cylinder bore and piston stroke are 83.0 mm (3.27 in) and 92.4 mm (3.64 in), respectively. The compression ratio rating is 22:1.

The 4A200T engine produced 47.1 PS (34.6 kW; 46.4 HP) at 2,600 rpm of maximum horsepower.

The Daedong 4A200T features:

  • Indirect injection
  • Centrifugal governor
  • Forced lubrication by trochoid pump
  • Liquid-cooled cooling system
  • Electric starter

General information

Engine Specifications
Engine model 4A200T
Engine type 4-stroke, vertical, turbocharget
Displacement 1,999 cm3, (122.0 cu·in)
Max. horsepower 47.1 PS (34.6 kW; 46.4 HP) at 2,600 rpm
Max. torque
Cooling system Liquid-cooled
Lubricating system Forced lubrication by trochoid pump
Fuel system Indirect injection
Fuel used Diesel fuel
Starting system Electric starter
Governor Centrifugal governor
Charging system Alternator 12V, 50A
Dimensions (L x W X H) 817 x 524 x 736 mm (32.2 x 20.6 x 29 in)
Dry weight 211 kg (465.2 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio: 22:1
Cylinder bore: 83.0 mm (3.27 in)
Piston stroke: 92.4 mm (3.64 in)
Number of piston rings (compression / oil): 2/1
Number of main bearings: 5
Crankshaft center distance: 46.2 mm (1.82 in)

Service Data

Engine
Maximum speed: 2,900 rpm
Idle speed: 850-900 rpm
Oil system
Lubrication system: Forced lubrication by trochoid pump
Recommended oil: SAE 15W-40
Oil capacity: 7.0 L (7.4 US. qt, 6.16 Imp. qt.)
Fuel system
Type: Indirect injection
Fuel injection pump Bosch K-type mini fuel injection pump
Fuel injection pressure 13.7 to 14.7 MPa, 140-150 kgf/cm2, 1,990 to 2,100 psi
Injection timing 12° B.T.D.C.

Applications

Manufacturer or Brand Models
Tractors
Kioti DK50
ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.
