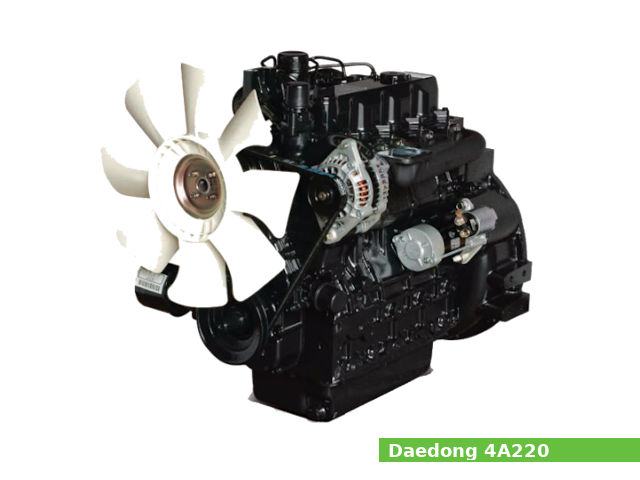

Daedong 4A220

The Daedong 4A220 is a 2.2 L (2,197 cc, 134.1 cu·in) natural aspirated four-stroke liquid-cooled internal combustion vertical diesel engine, manufactured by Daedong for general-purpose applications.

An 87.0 mm (3.43 in) cylinder bore and 92.4 mm (3.64 in) piston stroke give the 4A220 engine a total of 2,197 cc of displacement. The compression ratio rating is 22:1.

The 4A220 engine produced 42 PS (30.9 kW; 41.5 HP) at 2,700 rpm of net horsepower.

The Daedong 4A220 features:

  • Vortex type combustion chamber
  • Indirect injection fuel system
  • Centrifugal governor
  • Forced lubrication by trochoid pump
  • Liquid-cooled cooling system

General information

Engine Specifications
Engine model4A220
Engine type4-stroke, vertical
Displacement2,197 cm3, (134.1 cu·in)
Max. horsepower42 PS (30.9 kW; 41.5 HP) at 2,700 rpm
Max. torque
Cooling systemLiquid-cooled
Lubricating systemForced lubrication by trochoid pump
Fuel systemIndirect injection with Bosch K-type mini fuel injection pump
Fuel consumption
Fuel usedDiesel fuel
Starting systemElectric starter
GovernorCentrifugal governor
Charging systemAlternator 12V, 50A
Dimensions (L x W X H)817 x 488 x 736 mm (32.2 x 19.2 x 29 in)
Dry weight207 kg (456.4 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:22:1
Cylinder bore:87.0 mm (3.43 in)
Piston stroke:92.4 mm (3.64 in)
Number of piston rings (compression / oil):2/1
Number of main bearings:5
Crankshaft center distance:46.2 mm (1.82 in)

Service Data

Maximum speed:2,900 rpm
Oil system
Lubrication system:Forced lubrication by trochoid pump
Oil type:SAE 15W-40
Oil capacity:7.0 L (7.4 US. qt, 6.16 Imp. qt.)
Fuel system
Type:Indirect injection
Fuel injection pumpBosch K-type mini fuel injection pump
Fuel injection pressure13.7 to 14.7 MPa, 140-150 kgf/cm2, 1,990 to 2,100 psi
Injection timing18° B.T.D.C.
