Kioti DK50

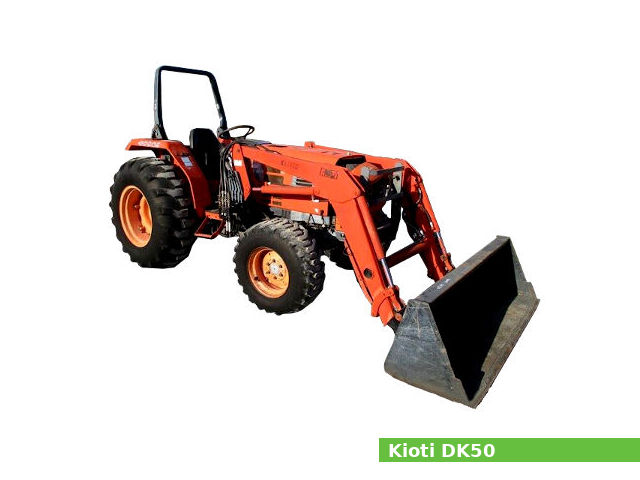

Kioti DK50The Kioti DK50 is a compact utility tractor model manufactured from 2001 to 2005 by Kioti (a part of Daedong) in Daegu, South Korea. It was available in a four-wheel drive (4WD) version.

The Kioti DK50 is equipped with a 2.0 L (122.0 cu·in) four-cylinder diesel engine with 83.0 mm (3.27 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke, and a synchronized shuttle transmission with 12 forward and 12 reverse gears.

The Kioti DK50 compact utility tractor features:

  • The Daedong 4A200T turbo-diesel engine which produces 49.6 PS (36.5 kW; 49.0 HP) at 2,600 rpm of horsepower
  • Hydraulic power steering
  • Wet disc brakes
  • Foldable ROPS or Cab (optional)
  • Category I the rear hitch – 1,800 kg (3,970 lbs) of maximum lift capacity
  • Independent front PTO – 540 rpm

General specifications

General Specifications
Model Kioti DK50
Tractor type Compact utility tractor
Production years 2001-2005
Factory Daegu, South Korea
Dimensions and weight
Length 3,310 mm (130.3 in)
Width 1,540 mm (60.6 in)
Height ROPS: 2,180 mm (85.8 in)
Cab: 2,280 mm (89.8 in)
Wheel base 1,810 mm (71.3 in)
Ground clearance 360 mm (14.2 in)
Weight ROPS: 1,730 kg (3,814 lbs)
Cab: 1,860 kg (4,101 lbs)
Fuel capacity
Fuel tank capacity 40.0 liters (10.6 US gal.; 8.8 Imp. gal)

Engine

Engine
Engine model Daedong 4A200T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.0 L, 1,999 cm2, (122.0 cu·in)
Bore and stroke 83.0 mm X 92.4 mm (3.27 in X 3.64 in)
Compression ratio 22.0:1
Horsepower 49.6 PS (36.5 kW; 49.0 HP) at 2,600 rpm
Starter Electric
Oil type SAE 15W-40
Oil capacity: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Coolant capacity: 8.9 L (9.4 US. qt, 7.8 Imp. qt.)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×4 MFWD 4WD
Steering type Hydraulic power
Brakes Wet disc
Differential lock Bevel gear
Transmission
Transmission manufacturer or model
Transmission type Synchronized shuttle
Gears 12 forward and 12 reverse
Speed Forward: 23.7 kmh (14.7 mph)
Reverse: kmh (0 mph)
Transmission oil capacity 34.0 L (9 US. gal, 7.5 Imp. gal.)

Tires

Tires
Front tires Ag: 9.5-16
Lawn/turf: 29×12.50-15
Rear tires Ag: 14.9-24
Lawn/turf: 21.5×16.1

Rear Hitch

Three-Point Hitch
Category I
Control type Position, draft and mixed control
Lift capacity (at ends) 1,800 kg (3,970 lbs)

PTO (Power take-off shaft)

PTO
Rear PTO type Independent
Rear PTO speed 540 rpm

Electrical system

Electrical system
Ground Negativ
Charging system Alternator 12V
Charging amps 50A
Battery 12V

Hydraulic system

Hydraulic system
Pump flow 8.2 gpm (31 lpm)
Steering flow 4.9 gpm (18.5 lpm)
