Honda GD410

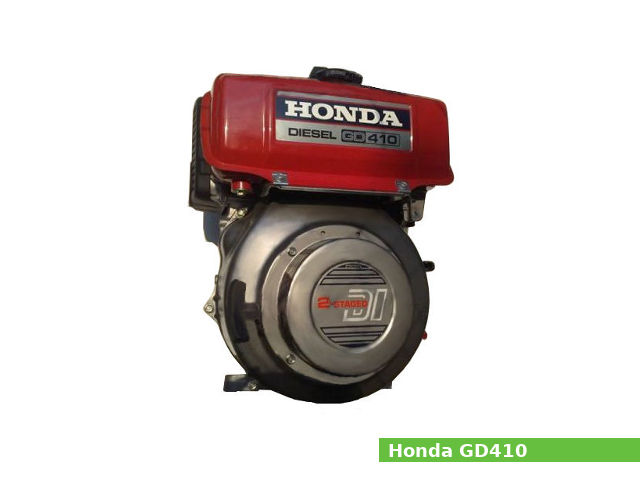

Honda GD410The Honda GD410 is a 411 cc (25.1 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small diesel engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications.

It has an 82.0 mm (3.23 in) cylinder bore and 78.0 mm (3.07 in) piston stroke. The compression ratio rating is 18.2:1.

The Honda GD410 engine produced 9.1 PS (6.7 kW; 9.0 HP) at 3,600 rpm of maximum output power and 20.6 N·m (2.1 kg·m, 15.2 ft·lb) at 2,500 rpm of peak torque.

The Honda GD410 features:

  • OHV design
  • Centrifugal governor
  • Forced spray lubrication system
  • Forced air cooling system
  • Recoil starter or starter motor

General information

Engine Specifications
Engine modelGD410
Engine type4-stroke, OHV, single-cylinder
Displacement411 cm3, (25.1 cu·in)
Max. horsepower9.1 PS (6.7 kW; 9.0 HP) at 3,600 rpm
Max. torque20.6 N·m (2.1 kg·m, 15.2 ft·lb) at 2,500 rpm
Cooling systemForced air
Air cleanerDual type and cyclone
Lubricating systemForced spray
Fuel tank capacity4.6 L (1.22 US. gal. 1.01 Imp. gal.)
Fuel usedDiesel fuel
Starting systemRecoil starter, starter motor
GovernorCentrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H) – series “S”440 x 405 x 490 mm (17.3 x 15.9 x 19.3 in)
Dry weight54.0 kg (119 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:18.2:1
Cylinder bore:82.0 mm (3.23 in)
Piston stroke:78.0 mm (3.07 in)
Cylinder internal diameter (standard):82.000-82.017 mm (3.2283-3.229 in)
Piston skirt outer diameter (standard):81.940-81.960 mm (3.226-3.2268 in)
Number of piston rings (compression / oil):2/1
Connecting rod big end diameter (standard):46.000-46.024 mm (1.811-1.812 in)
Connecting rod small end diameter (standard):23.010-23.028 mm (0.9059-0.9066 in)
Side clearance (Top):0.085-0.115 mm (0.0033-0.0045 in)
Side clearance (Second):0.075-0.110 mm (0.003-0.0043 in)
Side clearance (Oil):0.020-0.055 mm (0.0008-0.0022 in)
Ring end gap (Top):0.250-0.400 mm (0.0098-0.0157 in)
Ring end gap (Second):0.250-0.400 mm (0.0098-0.0157 in)
Ring end gap (Oil):0.200-0.400 mm (0.0079-0.0157 in)
Ring width (Top):1.960-1.975 mm (0.0772-0.0778 in)
Ring width (Second):1.950-1.970 mm (0.0768-0.0776 in)
Ring width (Oil):3.970-3.990 mm (0.1563-0.1571 in)
Crankshaft main journal diameter:49.970-49.994 mm (1.9673-1.9683 in)
Crankpin journal diameter:42.976-43.000 mm (1.692-1.6929 in)
Crankshaft center distance:39.000 mm (1.535 in)
Cylinder head
Valve arrangement:OHV
Valves:2
Valve steam diameter (INTAKE):6.575-6.590 mm (0.2589-0.2594 in)
Valve steam diameter (EXHAUST):6.540-6.550 mm (0.2575-0.2579 in)
Valve spring free length (INTAKE):33.7 mm (1.3268 in)
Valve spring free length (EXHAUST):33.7 mm (1.3268 in)
Camshaft lobe height (INTAKE):41.022 mm (1.615 in)
Camshaft lobe height (EXHAUST):41.022 mm (1.615 in)

Tightening torque specs

Tightening torque specs
Cylinder head bolts43 Nm; 4.3 kg·m; 31 ft·lb
Cylinder head nuts11 Nm; 1.1 kg·m; 8 ft·lb
Rocker arm shaft nuts11 Nm; 1.1 kg·m; 8 ft·lb
Tappet adjusting nuts9 Nm; 0.9 kg·m; 6.5 ft·lb
Oil pan bolt bolts M11: 71 Nm; 7.1 kg·m; 51 ft·lb
M8: 22 Nm; 2.2 kg·m; 16 ft·lb
Connecting rod cap nuts32 Nm; 3.2 kg·m; 23 ft·lb
Relief valve33 Nm; 3.3 kg·m; 24 ft·lb
Drain plug bolt33 Nm; 3.3 kg·m; 24 ft·lb
Flywheel nut250 Nm; 25.0 kg·m; 180 ft·lb
Injection nozzle10 Nm; 1.0 kg·m; 7 ft·lb
Air breather joint nuts18 Nm; 1.8 kg·m; 13 ft·lb
Fuel injection pump bolts22 Nm; 2.2 kg·m; 16 ft·lb
Fuel joint bolts28 Nm; 2.8 kg·m; 20 ft·lb
Air breather bolt18 Nm; 1.8 kg·m; 13 ft·lb
Fuel pipe nuts20 Nm; 2.0 kg·m; 14 ft·lb
Muffler nuts, bolts22 Nm; 2.2 kg·m; 16 ft·lb
Fuel tank bolts11 Nm; 1.1 kg·m; 18 ft·lb
Fuel filter bolts11 Nm; 1.1 kg·m; 18 ft·lb
Drain bolt11 Nm; 1.1 kg·m; 18 ft·lb

Service Data

Engine
Maximum speed:3,700±150 rpm
Idle speed:1,450±150 rpm
Cylinder compression:26.0 kg/cm2 (370 psi) at 300 rpm
Valve clearance
Intake valve clearance:0.13-0.17 mm (0.0051-0.0067 in)
Exhaust valve clearance:0.13-0.17 mm (0.0051-0.0067 in)
Oil system
Lubrication system:Forced spray
Oil type:Diesel oil (API CC or CD)
Recommended oil:SAE 10W-30
Oil capacity:1.25 L (1.32 US. qt, 1.1 Imp. qt.)
Oil pressure: 3.9-5.2 kg/cm2 (55.5-74.0 psi) at 3,600 rpm
