John Deere 110 (1963-1967)

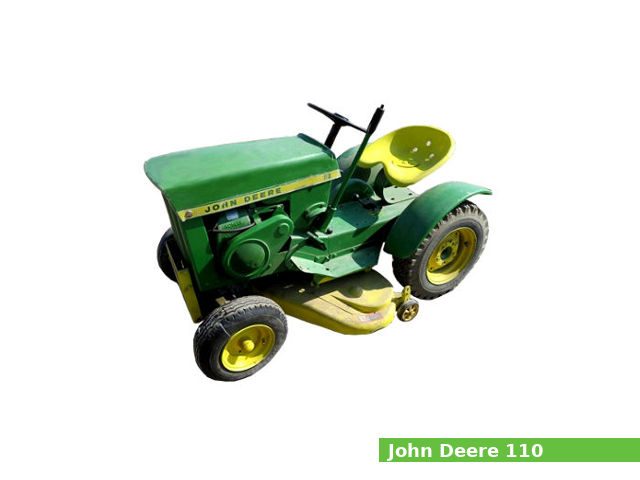

John Deere 110The John Deere 110 is a garden tractor model from the 100 series, manufactured from 1963 to 1974 by John Deere in Horicon, Wisconsin, USA. It was available in two-wheel drive (2WD) version.

The first generation (1963-1967) of the John Deere 110 was equipped with one of two engines: a 277 cc (16.9 cu·in) single-cylinder gasoline engine with 74.6 mm (2.94 in) of the cylinder bore and 63.5 mm (2.5 in) of the piston stroke, or a 305 L (18.8 cu·in) single-cylinder gasoline engine with 74.6 mm (2.94 in) of the cylinder bore and 69.8 mm (2.75 in) of the piston stroke, and one of two transmissions: a belt-driven gear with mechanical CVT transmission (3 forward and 1 reverse gear) or a belt-driven gear with mechanical CVT transmission (4 forward and 1 reverse gear).

The John Deere 110 garden tractor features:

  • The Kohler K161 (1963-1964) gasoline engine which produces 7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm of horsepower or the Kohler K181S (after 1964) gasoline engine with 8.2 PS (6.0 kW; 8.0 HP) at 3,600 rpm of output power.
  • Manual steering
  • Manual brakes
  • Open operator station

General specifications

General Specifications
ModelJohn Deere 110
Tractor typeGarden tractor
Production years1963-1974
FactoryHoricon, Wisconsin, USA
Dimensions and weight
Length1,600 mm (63 in)
Width870 mm (34.3 in)
Height980 mm (38.6 in)
Wheel base1,100 mm (43.3 in)
Weight249 kg (549 lbs)
Fuel capacity
Fuel tank capacity7.2 liters (1.9 US gal.; 1.6 Imp. gal)

Engine

Engine Specifications
Engine model Kohler K161
Engine type4-stroke, L-head, single-cylinder
Displacement277 cm3, (16.9 cu·in)
Bore and stroke74.6 mm X 63.5 mm (2.9 in X 2.5 in)
Fuel typeGasoline
Max. horsepower7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm
Cooling systemForced air
Lubricating systemSplash type
Fuel systemCarburetor
Ignition system Magneto ignition system for retractable starter
Battery ignition system for electric starter
Starting systemElectric starter
Valve clearance
Intake valve clearance:0.15-0.20 mm (0.0059-0.0079 in)
Exhaust valve clearance:0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:Splash type
Oil type:API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity:1.1 L (1.2 US. qt, 1 Imp. qt.)
Ignition system
Spark plug:Champion RJ8C
Spark plug gap:0.65 mm (0.0256 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)
Ignition timing:20° B.T.D.C.
Compression pressure
Normal:7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Engine Specifications
Engine modelKohler K181QS
Engine type4-stroke, L-head (side valve), single-cylinder
Displacement305 cm3, (18.6 cu·in)
Bore and stroke74.62 mm X 69.85 mm (2.95 in X 2.75 in)
Max. horsepower8.2 PS (6.0 kW; 8.0 HP) at 3,600 rpm
Cooling systemForced air
Lubricating systemSplash type
Fuel systemCarburetor
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemElectric starter
Valve clearance
Intake valve clearance:0.15-0.20 mm (0.0059-0.0079 in)
Exhaust valve clearance:0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:Splash type
Oil type:API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity:0.9 L (1 US. qt, 0.8 Imp. qt.)
Ignition system
Spark plug:Champion RJ8C, J-8, XJ8
Spark plug gap:0.65 mm (0.0256 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering typeManual
BrakesManual
Transmission
Transmission manufacturer or modelPeerless
Transmission typeBelt-driven gear with mechanical CVT
Gears3 forward and 1 reverse
Speed Forward: 10.5 kmh (6.5 mph)
Reverse: 5.5 kmh (3.4 mph)
Transmission oil capacity0.9 L (0.2 US. gal, 0.2 Imp. gal.)
Transmission № 2
Transmission manufacturer or modelPeerless 2300
Transmission typeBelt-driven gear with mechanical CVT
Gears4 forward and 1 reverse
Speed Forward: 10.5 kmh (6.5 mph)
Reverse: 4.7 kmh (2.9 mph)
Transmission oil capacity1.4 L (0.4 US. gal, 0.3 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 16×6.50-8
Ag: 4.80/4.00-8
Rear tires Lawn/turf: 8-12
Ag:
6-12

Rear Hitch

Three-Point Hitch
TypeSleeve hitch (optional)
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

PTO
Middle PTO typeIndependent with manual idler pulley
Middle PTO speed

Electrical system

Electrical system
GroundNegative
Charging system
Charging amps
Battery12V, 24Ah

Serial numbers

John Deere 110 serial numbers
19632550
19643551
196515001
196640001
196765001
1968100001
1969130001
1970160000
1971185001
1972250001
1973272001
1974310001

Attachments

John Deere 38: 38″ mid-mount mower deck with manual or electric (optional) lift
Cutting width960 mm (38 in)
Overall width1,110 mm (44 in)
Cut height30-80 mm (1.5-3.5 in)
Weight46 kg (102 lbs)
John Deere: 42″ front-mount blade with manual-lift and manual-angle
Width1,060 mm (42 in)
Height 200 mm (8 in)
400 mm (16 in)
John Deere 36″ front-mount snowblower
Width910 mm (36 in)
Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.
