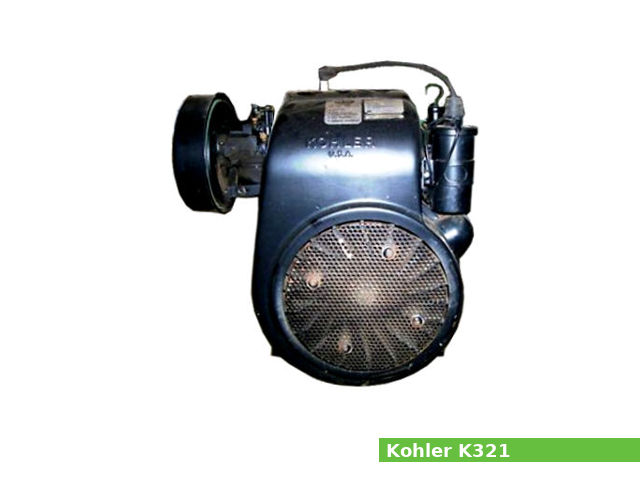

Kohler K321 (14.0 HP) engine specs and service data

The Kohler K321 is a 512 cc, (31.2 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Kohler Co, for general-purpose applications.

Cylinder bore and piston stroke are 88.9 mm (3.5 in) and 82.6 mm (3.25 in), respectively. This engine produced 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of horsepower.

The Kohler K321 features:

L-head (side valve) design
Magneto ignition system, battery ignition system, breakerless ignition system ignition system*
Carburetor (Kohler or Walbro – fixed main jet or adjustable main jet)*
Centrifugal governor
Splash type lubrication system
Forced air cooling system
Retractable and electric starter

* – depending on modification

General information

Engine Specifications
Engine model	K321
Engine type	4-stroke, L-head (side valve), single-cylinder
Displacement	512 cm³, (31.24 cu·in)
Max. horsepower	14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm
Max. torque	–
Cooling system	Forced air
Air cleaner	Paper air cleaner (oiled foam precleaner)
Lubricating system	Splash type
Ignition system	Magneto ignition system, battery ignition system, breakerless ignition system
Fuel system	Carburetor (Kohler or Walbro – fixed main jet or adjustable main jet)
Fuel consumption	–
Fuel tank capacity	–
Fuel used	Unleaded gasoline (octane number 86 or higher)
Starting system	Retractable or electric starter
Governor	Centrifugal governor
PTO shaft rotation	Counterclockwise (from PTO shaft side)
Dimensions (L x W X H)	–
Dry weight	53.5 kg (117.9 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:	–
Cylinder bore:	88.9 mm (3.5 in)
Piston stroke:	82.6 mm (3.25 in)
Cylinder internal diameter (standard):	88.9127-88.8873 mm (3.5005-3.4995 in)
Piston skirt outer diameter (standard):	88.7501-88.7425 mm (3.4941-3.4938 in)
Number of piston rings (compression / oil):	2/1
Connecting rod small end diameter (standard):	22.2428-22.2504 mm (0.8757-0.876 in)
Piston pin diameter:	22.2300-22.2352 mm (0.8752-0.8754 in)
Ring end gap (Top):	0.177-0.432 mm (0.007-0.017 in)
Ring end gap (Second):	0.177-0.432 mm (0.007-0.017 in)
Crankshaft center distance:	41.3 mm (1.625 in)
Cylinder head
Valve arrangement:	L-head (side valve), belt driven
Valves:	2
Valve head diameter (INTAKE):	34.798-35.052 mm (1.37-1.38 in)
Valve head diameter (EXHAUST):	28.448-28.702 mm (1.12-1.13 in) Suffix “D” and later: 34.798-35.052 mm (1.370-1.380 in)
Valve steam diameter (INTAKE):	7.8867-7.8994 mm (0.3105-0.311 in)
Valve steam diameter (EXHAUST):	7.8334-7.8511 mm (0.3084-0.3091 in)

Tightening torque

Tightening torque specs
Cylinder head bolts	34-41 Nm (25-30 ft-lbs)
Flywheel	68-81 Nm (50-60 ft-lbs)
Spark plug	25-30 Nm (18-22 ft-lbs)
Connecting rod	32.1 Nm (23.8 ft-lbs)
Governor bushing	11.2-13.6 Nm (8.3-10.1 ft-lbs)
Fuel pump mounting screws	4.2-5.1 Nm (3.1-3.8 ft-lbs)

Service Data

Engine
Maximum speed:	3,600 rpm
Valve clearance
Intake valve clearance:	0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance:	0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:	Splash type
Oil type:	SF or SG
Recommended oil:	Summer: SAE 30W Winter: SAE 5W-20, 5W-30
Oil capacity:	K321: 1.9 L (2.01 US. qt, 1.67 Imp. qt.) K321A: 1.2 L (1.27 US. qt, 1.06 Imp. qt.)
Fuel system
Type:	Carburetor (Kohler or Walbro – fixed main jet or adjustable main jet)
Ignition system
Type:	Magneto ignition system, battery ignition system, breakerless ignition system
Spark plug:	Champion RH10
Spark plug gap:	0.65 mm (0.0256 in)
Spark plug torque:	27 N·m (2.8 kg·m, 19.9 ft·lb)

Applications

Manufacturer or Brand	Models
Lawn tractors
Cub Cadet	147, 149, 1450
J.I.Case	444 (1969-1976), 444 (1977-1985)>
John Deere	140, 214, 314
Wheel Horse	GT-14

References

1. Kohler K91, K141, K161, K181, K241, K301, K321, K341, service manual. Kohler Co. 1992.
