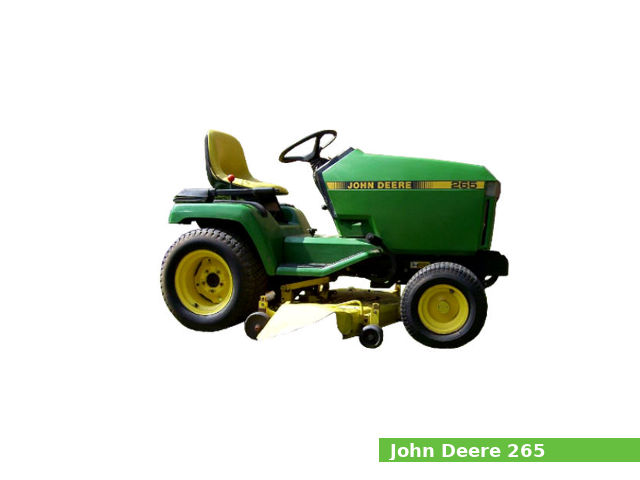

John Deere 265 lawn tractor specs and service data

The John Deere 265 is a lawn and garden tractor model from the Late 200 series, manufactured from 1987 to 1994 by John Deere in Horicon, Wisconsin, USA. It was available in a two-wheel drive (2WD) version.

The John Deere 265 is equipped with a 0.5 L (32.6 cu·in) single-cylinder gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The JD 265 lawn tractor features:

The Kawasaki FC540V gasoline engine which produces 17.3 PS (12.7 kW; 17.0 HP) at 3,600 rpm of horsepower
Manual enclosed recirculating ball steering
Expanding mechanical shoe brakes
Open operator station
The rear sleeve hitch

General specifications

General Specifications
Model	John Deere 265
Tractor type	Lawn tractor
Production years	1987-1994
Factory	Horicon, Wisconsin, USA
Dimensions and weight
Length	1,810 mm (71.3 in)
Width	1,050 mm (41.3 in)
Height	1,100 mm (43.3 in)
Wheel base	1,210 mm (47.6 in)
Weight	285 kg (628 lbs)
Fuel capacity
Fuel tank capacity	11.4 liters (3 US gal.; 2.5 Imp. gal)

Engine

Engine
Engine model	Kawasaki FC540V
Engine type	Four-stroke, air-cooled, OHV
Cylinders	1
Fuel type	Gasoline
Displacement	0.5 L, 534 cm³, (32.6 cu·in)
Bore and stroke	89.0 mm X 86.0 mm (3.5 in X 3.39 in)
Compression ratio	8.3:1
Fuel system	Float type carburetor with fixed main jet
Horsepower	17.3 PS (12.7 kW; 17.0 HP) at 3,600 rpm
Starter	Electric
Oil system
Lubrication system:	Full pressurized
Oil type:	4-stroke or an equivalent (SF, SE, SD)
Recommended oil:	SAE 10W-30
Oil capacity:	1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Ignition system
Spark plug:	NGK BPR5ES or Champion RN11YC
Spark plug gap:	0.7-0.8 mm (0.0276-0.0315 in)
Valve clearance
Intake valve clearance:	0.15 mm (0.006 in)
Exhaust valve clearance:	0.15 mm (0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual enclosed recirculating ball
Brakes	Expanding mechanical shoe
Transmission
Transmission manufacturer or model	Sundstrand BDU-21
Transmission type	Belt-driven hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 11.3 kmh (7.0 mph) Reverse: 4.7 kmh (2.9 mph)
Transmission oil capacity	2.5 L (0.7 US. gal, 0.5 Imp. gal.)

Tires

Tires
Front tires	Lawn/turf: 16×6.50-8
Rear tires	Lawn/turf: 23×10.50-12

Rear Hitch

Reart Hitch
Category	Sleeve hitch

Electrical system

Electrical system
Ground	Negative
Charging system	Alternator
Charging amps	16A
Battery	12V, CCA: 335A, BCI Group 22F

Serial numbers

John Deere 265 serial numbers
1988	457001
1989	595001
1990	010001
1991	100001
1992	130001
1993	150001
1994	160001

Attachments

John Deere 46″ mid-mount mower deck with 3-blade and manual lift
Cutting width	1,160 mm (46 in)
Overall width	1,440 mm (57 in)
Cut height	30-100 mm (1.5-4 in)
Weight	56 kg (125 lbs)
John Deere: 46″ front-mount blade with manual-lift and manual-angle
Width	1,160 mm (46 in)
Height	430 mm (17 in)
Lift	120 mm (5 in)
Cut height	70 mm (3 in)
Weight	49 kg (110 lbs)
John Deere: 42″ front-mount, single-stage snowblower with manual-lift
Width	1,060 mm (42 in)
Total width	1,090 mm (43 in)
Clear height	430 mm (17 in)
Weight	79 kg (175 lbs)
