John Deere GT275

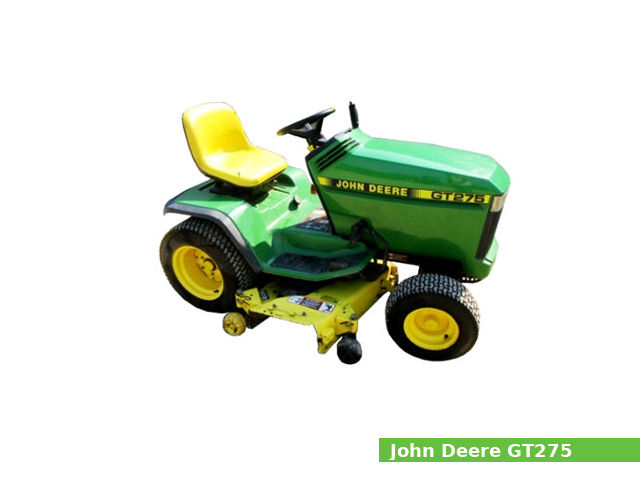

John Deere GT275The John Deere GT275 is a lawn and garden tractor model from the GT200 series, manufactured from 1995 to 1998 by John Deere in Horicon, Wisconsin, USA. It was available in a two-wheel drive (2WD) version.

The John Deere GT275 is equipped with a 0.5 L (32.6 cu·in) single-cylinder gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The JD GT275 lawn tractor features:

  • The Kawasaki FC540V gasoline engine which produces 17.3 PS (12.7 kW; 17.0 HP) at 3,600 rpm of horsepower
  • Manual sector-and-pinion steering
  • Internal wet disc brakes
  • Open operator station
  • Independent front PTO with electric clutch

General specifications

General Specifications
Model John Deere GT275
Tractor type Lawn and garden tractor
Production years 1995-1998
Factory Horicon, Wisconsin, USA
Dimensions and weight
Length 1,790 mm (70.5 in)
Width 990 mm (39.0 in)
Height 1,090 mm (42.9 in)
Wheel base 1,210 mm (47.6 in)
Weight 232 kg (511 lbs)
Fuel capacity
Fuel tank capacity 10.4 liters (2.7 US gal.; 2.3 Imp. gal)

Engine

Engine
Engine model Kawasaki FC540V
Engine type Four-stroke, air-cooled, OHV
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 534 cm3, (32.6 cu·in)
Bore and stroke 89.0 mm X 86.0 mm (3.5 in X 3.39 in)
Compression ratio 8.3:1
Fuel system Float type carburetor with fixed main jet
Horsepower 17.3 PS (12.7 kW; 17.0 HP) at 3,600 rpm
Starter Electric
Oil system
Lubrication system: Full pressurized
Oil type: 4-stroke or an equivalent (SF, SE, SD)
Recommended oil: SAE 10W-30
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Ignition system
Type: Electronic Capacitor Discharge Ignition (CDI)
Spark plug: NGK BPR5ES or Champion RN11YC
Spark plug gap: 0.7-0.8 mm (0.0276-0.0315 in)
Valve clearance
Intake valve clearance: 0.15 mm (0.006 in)
Exhaust valve clearance: 0.15 mm (0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual sector-and-pinion
Brakes Internal wet disc
Transmission
Transmission manufacturer or model Tuff Torq K70B
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 11.2 kmh (7.0 mph)
Reverse: 6.4 kmh (4 mph)
Transmission oil capacity 4.3 L (1.1 US. gal, 0.9 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×10.50-12

PTO (Power take-off shaft)

PTO
Front PTO type Independent with electric clutch
Front PTO speed

Electrical system

Electrical system
Ground Negative
Charging system Flywheel alternator
Charging amps 15A
Battery 12V, CCA 295A, BCI Group U1

Serial numbers

John Deere GT275 serial numbers
1995 045001
1996 055001
1997 070001
1998 090001

Attachments

John Deere Piranha 44″ mid-mount right-discharge mower deck with 3-blade and manual lift
Cutting width 1,110 mm (44 in)
John Deere 48″ mid-mount right-discharge mower deck with 3-blade and manual lift
Cutting width 1,210 mm (48 in)
John Deere: 42″ front-mount blade with manual-lift and manual-angle
Width 1,060 mm (42 in)
John Deere 2462M 38″ front-mount, single-stage snowblower with manual-lift
Width 960 mm (38 in)
