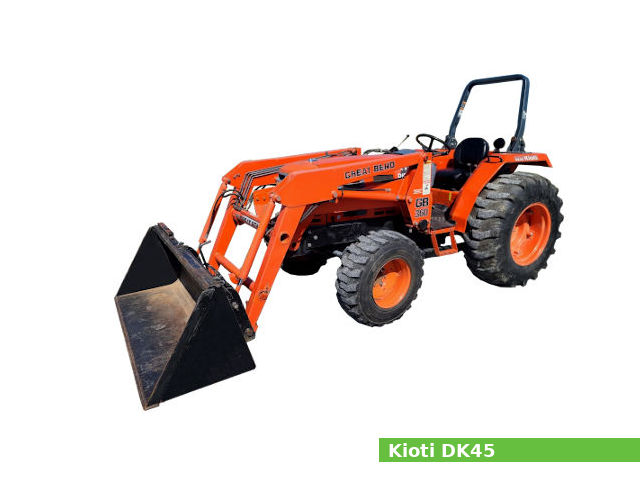

Kioti DK45 compact utility tractor specs and service data

The Kioti DK45 is a compact utility tractor model manufactured from 2000 to 2007 by Kioti (a part of Daedong) in Daegu, South Korea. It was available in a four-wheel drive (4WD) version.

The Kioti DK45 is equipped with a 2.2 L (134.1 cu·in) four-cylinder diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke, and a synchronized shuttle transmission with 12 forward and 12 reverse gears.

The Kioti DK45 compact utility tractor features:

The Daedong 4A220LXH diesel engine which produces 45.7 PS (33.6 kW; 45.0 HP) at 2,600 rpm of horsepower.
Hydraulic power steering
Wet disc brakes
Foldable ROPS
Category I rear hitch with 1,800 kg (3,970 lbs) of maximum lift capacity
Independent rear PTO with 540 rpm
Middle PTO with 2000 rpm (optional)

General specifications

General Specifications
Model	Kioti DK45
Tractor type	Compact utility tractor
Production years	2000-2007
Factory	Daegu, South Korea
Dimensions and weight
Length	3,400 mm (133.9 in)
Width	1,750 mm (68.9 in)
Height	2,440 mm (96.1 in)
Wheel base	1,870 mm (73.6 in)
Ground clearance	40 mm (1.6 in)
Weight	1,720 kg (3,792 lbs)
Fuel capacity
Fuel tank capacity	DK45: 40.0 liters (10.6 US gal.; 8.8 Imp. gal) DK45S: 58.0 liters (15.3 US gal.; 12.8 Imp. gal)

Engine

Engine
Engine model	Daedong 4A220
Engine type	Four-stroke, liquid-cooled, inline
Cylinders	4
Fuel type	Diesel
Displacement	2.2 L, 2,197 cm², (134.1 cu·in)
Bore and stroke	87.0 mm X 92.4 mm (3.43 in X 3.64 in)
Compression ratio	22.0:1
Horsepower	45.7 PS (33.6 kW; 45.0 HP) at 2,600 rpm
Starter	Electric
Oil type	SAE 15W-40
Oil capacity:	7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Coolant capacity:	8.9 L (9.4 US. qt, 7.8 Imp. qt.)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×4 MFWD 4WD
Steering type	Hydraulic power
Brakes	Wet disc
Differential lock	Bevel gear
Transmission
Transmission manufacturer or model	–
Transmission type	Synchronized shuttle
Gears	12 forward and 12 reverse
Speed	Forward: 24.6 kmh (15.3 mph) Reverse: 15.6 kmh (9.7 mph)
Transmission oil capacity	34.0 L (9 US. gal, 7.5 Imp. gal.)

Tires

Tires
Front tires	Ag: 9.5-16 Lawn/turf: 29×12.5-15
Rear tires	Ag: 14.9-24 Lawn/turf: 21.5L-16.1

Rear Hitch

Three-Point Hitch
Category	I
Control type	Position, draft and mixed control
Lift capacity (at ends)	1,800 kg (3,970 lbs)

PTO (Power take-off shaft)

PTO
Middle PTO type	Optional
Middle PTO speed	2000 rpm
Rear PTO type	Independent
Rear PTO speed	540 rpm

Electrical system

Electrical system
Ground	Negative
Charging system	Alternator 12V
Charging amps	50A
Battery	12V

Hydraulic system

Hydraulic system
Hydraulic type	–
Pump flow	8.2 gpm (31 lpm)
Steering flow	4.9 gpm (18.5 lpm)
