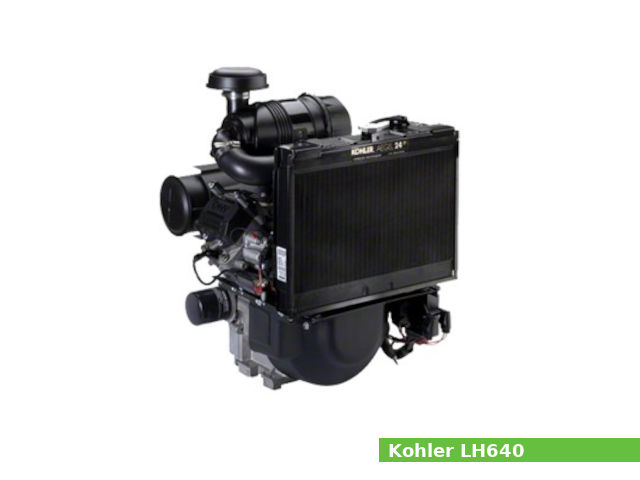

The Kohler LH640 is a 624 cc (38.1 cu·in) natural aspirated V-twin four-stroke liquid-cooled internal combustion small gasoline engine with a horizontal shaft from the Aegis series, manufactured by Kohler Co for general-purpose applications.
It has an 77.0 mm (3.03 in) cylinder bore and 67.0 mm (2.64 in) piston stroke. The compression ratio rating is 8.5:1.
This engine produced 24.3 PS (17.9 KW; 24.0 HP) at 3,600 rpm of maximum horsepower and 51.9 Nm (5.29 kg·m; 38.3 ft·lb) at 2,400 rpm of peak torque.
The Kohler Aegis LH640 features:
- OHV (overhead valve) design
- Hydraulic valve system
- Electronic ignition system
- One-barrel carburetor with fixed main jet (Keihin)
- Centrifugal flyweight mechanical governor
- Full pressure with Gerotor oil pump lubrication system
- Liquid-cooled cooling system with parallel-flow radiator and integrated belt-driven water pump
- Solenoid shift starter (12V)
General information
Engine Specifications | |
Engine model | Aegis LH640 |
Engine type | 4-stroke, OHV, V-twin |
Displacement | 624 cm3, (38.1 cu·in) |
Max. horsepower | 24.3 PS (17.9 KW; 24.0 HP) at 3,600 rpm |
Max. torque | 51.9 Nm (5.29 kg·m; 38.3 ft·lb) at 2,400 rpm |
Cooling system | Liquid-cooled |
Air cleaner | Heavy-Duty air cleaner |
Lubricating system | Full pressure with gerotor oil pump |
Ignition system | Electronic ignition system |
Fuel system | Carburetor with fixed main jet (Keihin) |
Fuel used | Unleaded gasoline (octane number 86 or higher) |
Starting system | Solenoid shift starter (12V) |
Charging system | 20A charging, regulated |
Governor | Centrifugal flyweight mechanical governor |
PTO shaft rotation | Counterclockwise (from PTO shaft side) |
Dimensions (L x W X H) | 432 x 459 x 674 mm (17.0 x 18.1 x 26.5 in) |
Dry weight | 51.7 kg (114.0 lbs) |
Cylinder Block and Head
Cylinder block | |
Compression ratio: | 8.5:1 |
Cylinder bore: | 77.0 mm (3.03 in) |
Piston stroke: | 67.0 mm (2.64 in) |
Cylinder internal diameter (standard): | 77.000-77.025 mm (3.0315-3.0325 in) |
Piston skirt outer diameter (standard): | 76.968-76.986 mm (3.0302-3.0309 in) |
Number of piston rings (compression / oil): | 2/1 |
Connecting rod small end diameter (standard): | 17.015-17.023 mm (0.6699-0.6702 in) |
Piston pin diameter: | 16.995-17.000 mm (0.6691-0.6693 in) |
Side clearance (Top): | 0.040-0.086 mm (0.0016-0.0034 in) |
Side clearance (Second): | 0.040-0.086 mm (0.0016-0.0034 in) |
Side clearance (Oil): | 0.046-0.196 mm (0.0018-0.0077 in) |
Ring end gap (Top): | 0.180-0.380 mm (0.0071-0.0150 in) |
Ring end gap (Second): | 0.250-0.450 mm (0.0098-0.0177 in) |
Crankshaft main journal diameter: | 40.913-40.935 mm (1.6107-1.6116 in) |
Crankpin journal diameter: | 35.955-35.973 mm (1.4155-1.4163 in) |
Crankshaft center distance: | 33.5 mm (1.32 in) |
Cylinder head | |
Valve arrangement: | OHV, gear driven |
Valves: | 2 (4 valves in total) |
Valve head diameter (INTAKE): | 33.370-33.630 mm (1.3138-1.324 in) |
Valve head diameter (EXHAUST): | 29.370-29.630 mm (1.1563-1.1665 in) |
Valve face angle (INTAKE): | 45° |
Valve face angle (EXHAUST): | 45° |
Seat angle (INTAKE): | 89° |
Seat angle (EXHAUST): | 89° |
Valve steam diameter (INTAKE): | 6.982-7.000 mm (0.2749-0.2756 in) |
Valve steam diameter (EXHAUST): | 6.970-6.988 mm (0.2744-0.2751 in) |
Valve lift (min) (INTAKE): | 8.88 mm (0.3496 in) |
Valve lift (min) (EXHAUST): | 8.88 mm (0.3496 in) |
Camshaft journal diameter : | 19.962-19.975 mm (0.7859-0.7864 in) |
Tightening torque specs
Tightening torque specs | |
Intake manifold (torque in 2 increments) | Step 1: 7.4 Nm (0.8 kgf·m; 5.5 lb·ft) Step 2: 9.9 Nm (1.0 kgf·m; 7.3 lb·ft) |
Carburetor mounting | 9.9 Nm (1.0 kgf·m; 7.3 lb·ft) |
Connecting rod cap | 11.3 Nm (1.15 kg·m; 8.3 ft·lb) |
Oil drain plugs | 13.6 Nm (1.4 kg·m; 10.0 ft·lb) |
Cylinder head (torque in 2 increments) | Step 1: 16.9 Nm (1.7 kg·m; 12.5 ft·lb) Step 2: 33.9 Nm (3.5 kg·m; 25.0 ft·lb) |
Rocker pivot | 11.3 Nm (1.1 kg·m; 8.34 ft·lb) |
Rear fan shaft to mounting bracket nut | 15.8 Nm (1.6 kgf·m; 11.7 lb·ft) |
Front fan assembly to fan shaft nut | 15.8 Nm (1.6 kgf·m; 11.7 lb·ft) |
Flywheel | 66.4 Nm (6.77 kg·m; 49 ft·lb) |
Spark plug | 27 Nm (2.75 kg·m; 19.93 ft·lb) |
Muffler retaining nuts | 24.4 Nm (2.5 kg·m; 18.0 ft·lb) |
Valve cover | 6.2 Nm (0.63 kg·m; 4.6 ft·lb) |
Governor lever nut | 6.8 Nm (0.7 kgf·m; 5.0 lb·ft) |
Service Data
Engine | |
Idle speed: | 1200±75 rpm |
Compression pressure | |
Compression differential limit between cylinders: | 15% and less |
Oil system | |
Lubrication system: | Full pressure with gerotor oil pump |
Oil type: | SAE 10W-30 |
Recommended oil: | API SG, SH, SJ, or higher |
Oil capacity: | W/o oil filter: 1.6 liters (1.7 US.qts, 1.4 Imp. qts) With oil filter: 1.8 liters (1.9 US.qts, 1.58 Imp. qts) |
Ignition system | |
Type: | Electronic ignition system |
Spark plug: | Champion RC14YC or Kohler 6613201-S |
Spark plug gap: | 0.76 mm (0.030 in) |
Spark plug torque: | 27 N·m (2.8 kg·m, 19.9 ft·lb) |
Ignition module air gap: | 0.20-0.30 mm (0.008-0.012 in) |
Cooling system | |
Cooling system: | Liquid-cooled cooling system with parallel-flow radiator and integrated belt-driven water pump |
Coolant capacity: | 2.0 liters (2.1 US.qts, 1.8 Imp. qts) |
References
1. Kohler Aegis LH630, LH640, LH685, LH690, LH750, LH755 service manual. Kohler Co. 2021.
