Kohler XTR-6

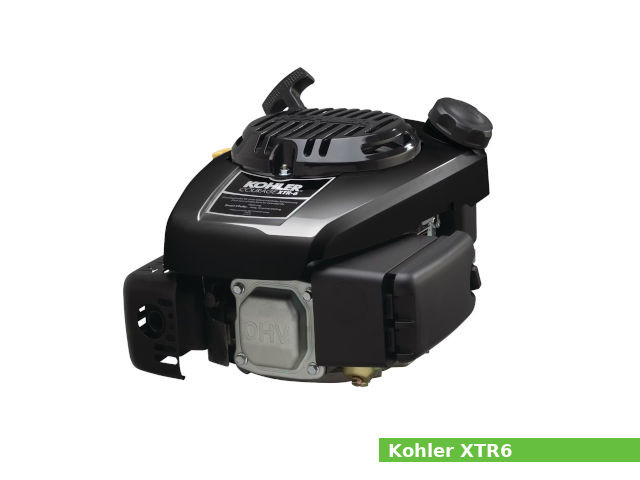

Kohler XTR-6The Kohler XTR-6 is a 149 cc (9.1 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine from the Courage XT-series with a vertical shaft, manufactured by Kohler Co for general-purpose applications, such as log splitter, pressure washer, tiller, walk-behind mower, yard vacuum.

The cylinder bore and the piston stroke are 65.0 (2.60) and 45.0 mm (1.80 in), respectively. Compression ratio rating is 9.2:1.

The Kohler XTR-6 engine produces 3.8 PS (2.8 KW; 3.8 HP) at 3,600 rpm of horsepower and 8.5 Nm (0.87 kg·m; 6.3 ft·lb) at 2,800 rpm of maximum torque.

The Kohler XTR6 features:

  • OHV design
  • Aluminum cylinder block
  • Cast iron cylinder liners
  • Dependable electronic magneto ignition system
  • Carburetor with fixed main jet
  • Mechanical centrifugal governor
  • Spalsh type lubrication
  • Forced air cooling system
  • Electric starter

General information

Engine Specifications
Engine modelXTR-6
Engine type4-stroke, OHV, single-cylinder
Displacement149 cm 3 (9.1 cu-in)
Max. horsepower3.8 PS (2.8 KW; 3.8 HP) at 3,600 rpm
Max. torque8.5 Nm (0.87 kg·m; 6.3 ft·lb) at 2,800 rpm
Cooling systemForced air
Air cleanerReplaceable, paper element with pre-cleaner
Lubricating systemSplash type
Ignition systemDependable electronic magneto
Fuel systemCarburetor with fixed main jet
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity1.1 liters (1.2 US.qts, 0.97 Imp. qts)
Starting systemElectric starter
GovernorMechanical centrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)406 x 336 x 274 mm (16.0 x 13.2 x 10.8 in)
Dry weight15.2 kg (33.5 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:9.2:1
Cylinder bore:65.0 mm (2.60 in)
Piston stroke:45.0 mm (1.80 in)
Cylinder internal diameter (standard):65.000-65.020 mm (2.5590-2.5600 in)
Number of piston rings (compression / oil):2/1
Piston pin diameter:12.990-12.996 mm (0.5114-0.5116 in)
Thrust face outer diameter (standard):64.975-64.985 mm (0.2558-0.2558 in)
Ring-to-groove side clearance (Top): Before s/n 40244XXXXX: 0.020-0.060 mm (0.0007-0.0023 in)
After s/n 40243XXXXX: 0.010-0.020 mm (0.0004-0.0008 in)
Ring-to-groove side clearance (Second): Before s/n 40244XXXXX: 0.020-0.060 mm (0.0007-0.0023 in)
After s/n 40243XXXXX: 0.010-0.020 mm (0.0004-0.0008 in)
Ring end gap (Top): Before s/n 40244XXXXX: 0.250-0.400 mm (0.0098-0.0157 in)
After s/n 40243XXXXX: 0.100-0.250 mm (0.0039-0.0098 in)
Ring end gap (Second): Before s/n 40244XXXXX: 0.250-0.400 mm (0.0098-0.0157 in)
After s/n 40243XXXXX: 0.610-0.760 mm (0.0240-0.0299 in)
Number of main bearings:2
Crankshaft main journal diameter: Flywheel:
Early: 24.975-24.989 mm (0.9832-0.9838 in)
Later: 25.005-25.019 mm (0.9844-0.9850 in)
PTO:
Early: 25.370-25.385 mm (0.9988-0.9994 in)
Later: 26.950-26.970 mm (1.0610-1.0620 in)
Crankpin journal diameter:25.985-25.995 mm (1.0230-1.0234 in)
Cylinder head
Valve arrangement:OHV, gear driven
Valves:2 (4 valves in total)
Valve head diameter (INTAKE):25.875-26.125 mm (1.0187-1.0285 in)
Valve head diameter (EXHAUST):23.875-24.125 mm (0.9399-0.9498 in)
Valve seat angle (INTAKE):44.5°
Valve seat angle (EXHAUST):44.5°
Valve seat angle (INTAKE):45°
Valve seat angle (EXHAUST):45°
Valve steam diameter (INTAKE):5.465-5.480 mm (0.2152-0.2157 in)
Valve steam diameter (EXHAUST):5.465-5.480 mm (0.2152-0.2157 in)

Tightening torque specs

Tightening torque specs
Connecting rod12.5 Nm (1.3 kgf·m; 9.2 ft·lb)
Cylinder head (torque in 2 increments) Step 1: 14.0 Nm (1.4 kgf·m; 10.3 ft·lb)
Step 2: 27.8 Nm (2.8 kgf·m; 20.5 ft·lb)
Rocker arm stud13.6 Nm (1.4 kgf·m; 10.0 ft·lb)
Rocker arm pivot jam nut9.5 Nm (1.0 kgf·m; 7.0 ft·lb)
Flywheel51.5 Nm (5.3 kgf·m; 38 ft·lb)
Muffler Exhaust stud: 5.0 Nm (0.5 kgf·m; 3.7 ft·lb)
Exhaust nut: 9.5 Nm (1.0 kgf·m; 7.0 ft·lb)
Spark plug27.0 Nm (2.75 kg·m; 20.0 ft·lb)
Oil drain plug13.6 Nm (1.4 kgf·m; 10.0 ft·lb)

Service Data

Valve clearance
Intake/Exhaust:0.0762-0.1270 mm (0.0030-0.0050 in)
Oil system
Lubrication system:Splash type
Oil type:API SJ or higher
Recommended oil:SAE 10W-30
Oil capacity:0.6 liters (0.63 US.qts, 0.53 Imp. qts)
Fuel system
Type:Carburetor with fixed main jet
Fuel filter:In-line fuel filter
Ignition system
Type:Dependable electronic magneto
Spark plug:Kohler 141-32-11-S
Spark plug gap:0.76 mm (0.030 in)
Ignition coil air gap0.254 mm (0.010 in)

References

1. Kohler XT Series XT-6, XTR-6, XT6.5, XT650, XT6.75, XT675, XT-7, XTR-7, XT775, XT8 service manual. Kohler Co. 2014.
