Kubota B1410

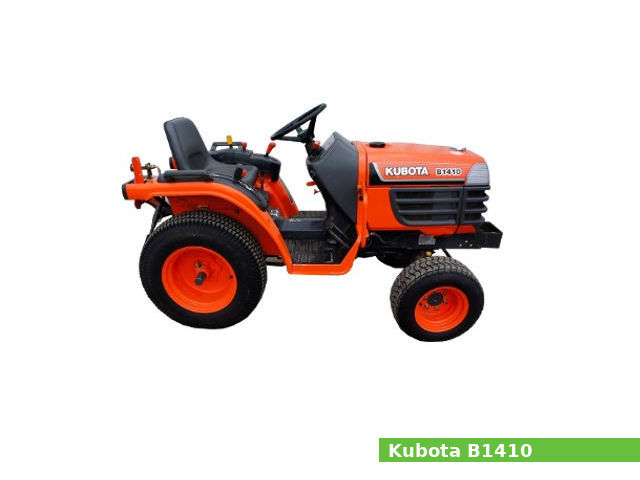

Kubota B1410The Kubota B1410 is a sub-compact utility tractor model from the B series, manufactured by Kubota in Japan. It was available in four-wheel drive (4WD) version.

The Kubota B1410D is equipped with a 656 cc (40.0 cu·in) three-cylinder diesel engine with 64.0 mm (2.52 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke, and a gear type transmission with 6 forward and 2 reverse gears.

The Kubota B1410 sub-compact utility tractor features:

  • The Kubota D662-D14 diesel engine which produces 13.1 PS (9.6 KW; 13.0 HP) at 3,200 rpm of horsepower and 37.0 Nm (3.77 kg·m; 27.31 ft·lb) at 2,800 rpm of peak torque
  • Manual steering
  • Wet disc type brakes
  • Open operator station
  • Category I rear hitch with 540 kg (1,191 lbs) of maximum lift capacity
  • Middle PTO with 2,500 rpm
  • Rear PTO with 540/1000 rpm.

General specifications

General Specifications
ModelKubota B1410
Tractor typeSub-compact utility tractor
Production years
Dimensions and weight
Length2,035 mm (80.1 in)
Width930 mm (36.6 in)
Height1,230 mm (48.4 in)
Wheel base1,270 mm (50 in)
Ground clearance240 mm (9.4 in)
Weight510 kg (1,124 lbs)
Fuel capacity
Fuel tank capacity13.0 liters (3.4 US gal.; 2.9 Imp. gal)


Engine Specifications
Engine modelKubota D662-D14
Engine type4-stroke, vertical, three-cylinders
Displacement656 cm3, (40.0 cu·in)
Compression ratio:23.0:1
Cylinder bore:64.0 mm (2.52 in)
Piston stroke:68.0 mm (2.68 in)
Horsepower DIN70020: 13.1 PS (9.6 KW; 13.0 HP) at 3,200 rpm
At PTO-shaft: 11.0 PS (8.1 KW; 10.9 HP)
Max. torque37.0 Nm (3.77 kg·m; 27.31 ft·lb) at 2,800 rpm
Emission type
Cooling systemLiquid-cooled
Lubricating systemForced lubrication by pump
Combustion chamberSpherical type
Fuel injection pumpBosch MD type mini pump
Injection nozzleBosch throttle type
Fuel usedDiesel fuel No.2-D
Starting systemElectric starter (12V, 0.8 kW)
Starting support deviceGlow plug in combustion chamber
GovernorCentrifugal ball mechanical governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)426 x 398 x 519 mm (16.8 x 15.7 x 20.4 in)
Cylinder compression pressure
Cylinder compression:29.0-33.0 kgf/cm2 (2.84-3.24 MPa, 412-469 psi)
Compression differential limit between cylinders:10% or less
Valve clearance
Intake valve clearance:0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance:0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system:Forced lubrication by pump
Oil type:API CD or CE
Oil capacity:2.4 liters (2.54 US.qts, 2.11 Imp. qts)
Oil filter:Full flow paper filter (cartridge type)
Oil pressure: At idle spped: 98 kPa (1.0 kgf/cm2, 14 psi)
At rated speed: 196-441 kPa (2.0-4.5 kgf/cm2, 29-64 psi)
Fuel system
Fuel injection pumpBosch MD-type mini pump
Injection nozzleBosch throttle type
Fuel injection pressure13.73-14.71 MPa (140-150 kgf/cm2, 1991-2133 psi)
Cooling system
Type:Pressurized radiator, forced circulation with water pump (not included in the basic engine)
Thermostat’s valve opening temperature:69.5-72.5°C (157.1-162.5°F)
Temperature at which thermostat completely opens:85°C (185°F)
Coolant capacity:2.6 liters (2.75 US.qts, 2.29 Imp. qts)

Transmission and chassis

Chassis, steering and brakes
Chassis4×4 MFWD 4WD
Steering typeManual
BrakesWet disc type
Transmission manufacturer or model
Transmission typeGear type
Gears6 forward and 2 reverse
Speed Forward: 15.1 kmh (9.4 mph)
Reverse: 6.2 kmh (3.9 mph)
Transmission oil capacity10.5 L (2.8 US. gal, 2.3 Imp. gal.)


Front tires Ag: 4.5-10
Lawn/turf: 20×8.00-10
Rear tires Ag: 7-16
Lawn/turf: 212/80D-15

Rear Hitch

Three-Point Hitch
Control type
Lift capacity (at ends)540 kg (1,191 lbs)

PTO (Power take-off shaft)

Middle PTO type
Middle PTO speed2,500 rpm
Rear PTO type
Rear PTO speed540/1000 rpm

Electrical system

Electrical system
Charging systemAlternator
Charging amps
Battery12V, CCA 390A
