Kubota L1801

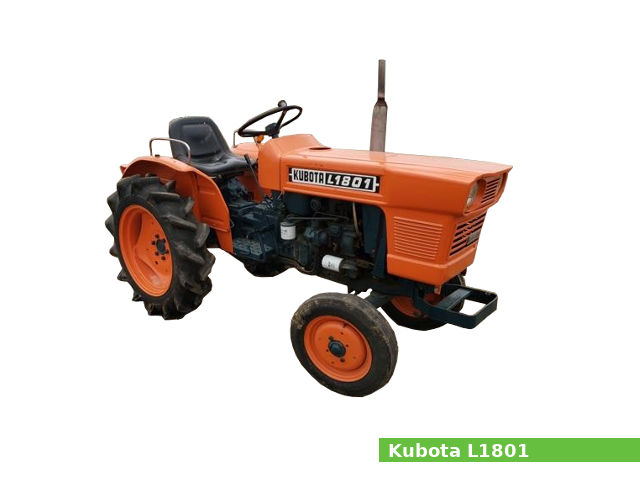

Kubota L1801The Kubota L1801 is a sub-compact utility tractor model from the L01 series, manufactured from 1976 to 1978 by Kubota in Japan. It was available in two-wheel drive (2WD) or four-wheel drive (4WD) versions.

The Kubota L1801 is equipped with a 867 cc (52.9 cu·in) two-cylinder diesel engine with 82.0 mm (3.23 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke, and a gear type transmission with 8 forward and 2 reverse gears (16 forward and 4 reverse gears with creeper).

The Kubota L1801 sub-compact utility tractor features:

  • The Kubota Z851 diesel engine which produces 18.2 PS (13.4 kW; 18.0 HP) at 3,000 rpm of horsepower
  • Manual steering
  • Open operator station
  • Category I rear hitch
  • Rear PTO with 540 rpm
  • 22.0 liters (5.8 US gal.; 4.8 Imp. gal) fuel tank capacity

General specifications

General Specifications
ModelKubota L1801
Tractor typeSub-compact utility tractor
Production years1976-1978
Dimensions and weight
Length2,360 mm (92.9 in)
Width1,120 mm (44.1 in)
Height Steering wheel: 1,320 mm (52 in)
Exhaust: 1,940 mm (76.4 in)
Wheel base1,380 mm (54.3 in)
Ground clearance 2WD: 290 mm (11.4 in)
4WD: 240 mm (9.4 in)
Weight 2WD: 702 kg (1,548 lbs)
4WD: 782 kg (1,724 lbs)
Fuel capacity
Fuel tank capacity22.0 liters (5.8 US gal.; 4.8 Imp. gal)


Engine modelKubota Z851
Engine type4-stroke, vertical, two-cylinders
Displacement867 cm3, (52.9 cu·in)
Cylinder bore:82.0 mm (3.23 in)
Piston stroke:82.0 mm (3.23 in)
Max. horsepower18.2 PS (13.4 kW; 18.0 HP) at 3,000 rpm
Max. torque
Cooling systemLiquid-cooled
Lubricating systemForced lubrication by pump
Fuel systemFuel injection pump
Injection typeIndirect injection
Fuel usedDiesel fuel No.2-D
Starting systemElectric starter
GovernorCentrifugal ball mechanical governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Valve clearance
Intake valve clearance:0.18-0.22 mm (0.0071-0.0087 in)
Exhaust valve clearance:0.18-0.22 mm (0.0071-0.0087 in)
Oil system
Lubrication system:Forced lubrication
Oil type:DS or DM
Recommended oil:SAE 80
Oil capacity:3.8 liters (4 US. qt, 3.3 Imp. qt.)
Fuel system
Injection timing:25° B.T.D.C.
Fuel injection pressure13.73-14.71 MPa (140-150 kgf/cm2, 1991-2133 psi)
Cooling system
Type:Pressurized radiator, forced circulation with water pump
Coolant capacity:5.3 liters (5.6 US.qts, 4.7 Imp. qts)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD (L1801) or 4×4 MFWD 4WD (L1801DT)
Steering typeManual
Transmission manufacturer or model
Transmission typeGear type
Gears8 forward and 2 reverse
Speed Forward: 14.0 kmh (8.7 mph)
Reverse: 9.4 kmh (5.8 mph)
Transmission № 2
Transmission manufacturer or model
Transmission typeCreeper
Gears16 forward and 4 reverse


Front tiresAg: 4.00-12 (2WD), 6.00-14 (4WD)
Rear tiresAg: 8.3/8-22

Rear Hitch

Three-Point Hitch
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

Rear PTO type
Rear PTO speed540 rpm

Electrical system

Electrical system
Charging systemAlternator
Charging amps10A
Battery12A, 65Ah
