Torx TX420

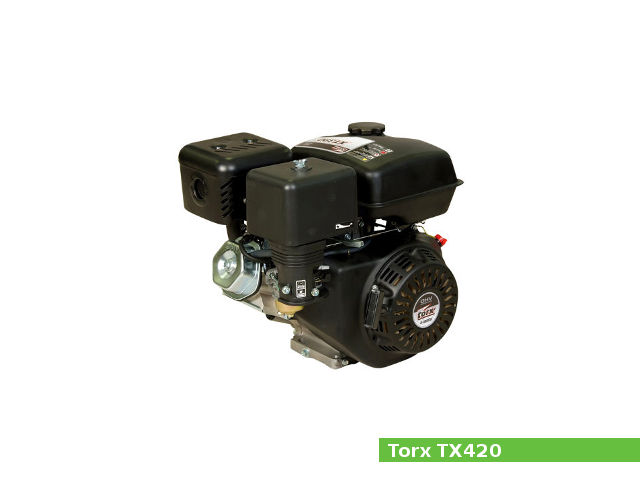

Torx TX420 engineThe Torx TX420 is a 0.4 L (420 cc, 25.63 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft. The TX420 engine is used motor pumps, lawn cutting equipment, shredders, high-pressure washer, hydraulic pumps, and drive units.

The Torx TX420 engine has a single-cylinder, overhead valve (OHV) design for increased efficiency, and recoil starter. This engine used a horizontal type carburetor, transistorized magneto ignition system, splash type lubricating system, and forced-air cooling system. The TX420 is equipped with a 6.5 L (1.72 US. gal. 1.43 Imp. gal.) fuel tank.

The Torx TX420 engine produced 15 PS (11.0 kW; 14.8 HP) at 3,600 rpm of maximum output power and 23.0 N·m (2.3 kg·m, 17 ft·lb) at 2,750 rpm of peak torque.

General information

Engine Specifications
Engine modelTX420
Engine type4-stroke, OHV, single-cylinder
Displacement420 cm3, (25.63 cu·in)
Max. horsepower15.0 PS (11.0 kW; 15.0 HP) at 3,600 rpm
Max. torque23.0 N·m (2.3 kg·m, 17 ft·lb) at 2,750 rpm
Cooling systemForced air
Lubricating systemSplash
Fuel systemCarburetor
Fuel tank capacity6.5 L (1.72 US. gal. 1.43 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
GovernorCentrifugal govervor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dry weight31.0 kg (68.3 lbs)

Cylinder Block and Head

It has a 90.0 mm (3.54 in) cylinder bore and 66.0 mm (2.6 in) piston stroke. Compression ratio rating is 8.4:1.

Cylinder block
Compression ratio:8.4:1
Cylinder bore:90.0 mm (3.54 in)
Piston stroke:66.0 mm (2.6 in)
Number of piston rings (compression / oil):2/1
Crankshaft center distance:33 mm (1.3 in)
Cylinder head
Valve arrangement:OHV

Service Data

The 4-stroke motor oil with a viscosity of 10W-30 is recommended for the TX420, refilling oil capacity is 1.1 L (1.16 US. qt, 0.97 Imp. qt.).

Oil system
Lubrication system:Splash
Oil capacity:1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Fuel system
